Portable Aluminum Gantry Crane



Aluminum Gantry Crane is a lightweight, versatile, and highly durable lifting solution designed for industrial, commercial, and on-the-go applications. Engineered from premium-grade aluminum, this crane combines strength and mobility to deliver optimal performance in diverse working environments.

Crafted from high-strength aluminum, the crane is easy to assemble, disassemble, and transport. Its lightweight structure reduces manual effort while maintaining exceptional durability.The adjustable height and beam span provide unmatched flexibility, allowing users to adapt the crane to various lifting tasks and workspace constraints.

The aluminum construction offers excellent resistance to corrosion, making it ideal for both indoor and outdoor use, even in harsh environments.Despite its lightweight build, the crane is capable of lifting substantial loads (up to [specific load capacity, e.g., 3 tons]), ensuring efficiency and reliability in demanding applications.

It is equipped with heavy-duty casters, the crane can be effortlessly moved and positioned. The locking mechanisms ensure safety and stability during operation.Designed for rapid setup without the need for specialized tools, making it perfect for temporary worksites or frequent relocations.

Core Components：Gearbox, motor, Gear

Place of Origin：Henan, China

Warranty ：2 years

Weight (KG)：500 kg

Video outgoing-inspection：Provided

Machinery Test Report：Provided

Application：warehouse, ports, yard, etc

Color：Customised

Crane feature：customized simple portable gantry crane

Max. Capacity ：10 ton

Power supply ：customized

Control Method：Ground Control+ Remote Control (customized)

MOQ：1 Set

Lifting mechanism：Hoist

Crane type：gantry crane

Main electrical parts：Schneider

Pictures & Components

1.Main beam

The main beam of a portable aluminum gantry crane is one of its most critical components as it supports the load and ensures stability and safety of the lifting operation.

Aluminum alloy materials are ideal for portable applications due to their light weight, corrosion resistance and ease of transportation. High-strength aluminum alloys such as 6061-T6 or 6082-T6 are widely used due to their excellent strength-to-weight ratio.

The main beam is usually designed as an I-beam for optimal load distribution and bending resistance. The length is usually 2 to 8 meters (customizable depending on the application). Depending on the model, the load capacity varies between 0.5 and 5 tons. The connection points are designed for secure attachment to the column or side frame.

2.Lifting System

The lifting system of a portable aluminum gantry crane is an essential component that enables the crane to lift and transport heavy loads.

Electric Hoist: Operated using an electric motor, ideal for handling heavy loads efficiently. It usually comes with variable speed control.

Manual Chain Hoist: More cost-effective and suitable for lighter loads or areas without access to electricity.

Wire Rope Hoist: Used for precise and heavy-duty lifting tasks. It often has a higher lifting capacity than a chain hoist.

Push Trolley: Manually pushed along the beam, suitable for lightweight operations.

Geared Trolley: Operated by a hand chain, allowing for more precise positioning.

Motorized Trolley: Powered for easier and faster movement of the hoist along the beam.



3.End carriage

The end carriage of a portable aluminum gantry crane refers to the structural component at the ends of the crane beam that allows the crane to move along a specific path or to provide stability during operation. It typically includes wheels, bearings, and other attachments for mobility and stability.

End carriages are often equipped with durable wheels made from steel, rubber, or polyurethane for easy movement.Wheels can be designed for indoor or outdoor surfaces, with options for smooth or rugged terrain.

The end carriage connects securely to the aluminum gantry beam and ensures balanced load distribution.For portable aluminum gantry cranes, the end carriage often includes swiveling or locking castors to allow easy maneuverability.Some models include motorized wheels for added convenience.Adjustable locking mechanisms or stabilizers to secure the crane in position during lifting operations.

Since the gantry crane is aluminum, the end carriage is typically designed to complement its lightweight and corrosion-resistant properties.

4.Crane travelling mechanism

1) Operation principle

The crane's gantry structure is moved along the track by powered wheels or rollers. The operator controls the movement using a motorized or manual system, depending on the crane's design. The tracks guide the crane along the desired path, and the entire system is designed to ensure safe, smooth, and precise movement for lifting and positioning loads.

2) Functional characteristics

Mobility and Portability：The traveling mechanism allows for easy movement of the crane, making it suitable for portable and flexible operations.

Adjustability and Stability：The wheels or travel mechanisms are designed to provide stability while allowing for adjustable positioning.

Lightweight and Durable Construction：The travel mechanism is designed to complement the lightweight aluminum construction of the crane. This ensures that the crane can be moved easily without compromising on strength and durability.

Smooth Movement：The traveling mechanism incorporates wheels or rollers designed to provide smooth movement along the surface. This reduces friction and ensures ease of movement, even under heavy loads.

Load Distribution：The traveling system is designed to distribute the crane's load evenly across all wheels or tracks to prevent excessive wear and ensure balanced movement.

5.Trolley travelling mechanism

1) Operation principle

When the operator activates the trolley traveling mechanism, the drive system engages and starts moving the trolley along the beam. This is typically controlled by a remote control or pendant system.The drive system powers the wheels of the trolley, allowing it to move horizontally along the beam. The wheels roll along a rail or track that is part of the gantry frame. The trolley's movement is smooth due to low friction, often enhanced by the use of ball bearings in the wheels.The trolley enables precise movement of the load (attached to the hoist) across the length of the beam. The hoist system itself is mounted on the trolley, and the operator can adjust the position of the load by moving the trolley.The control system of the gantry crane typically includes a combination of buttons or joysticks to control both the trolley's horizontal movement and the hoist's vertical lift. The operator can adjust the speed and direction of the trolley using the control panel, which adjusts the speed of the motor.

Functional characteristics

Smooth Movement: The trolley is designed to move smoothly along the rail or beam, ensuring minimal friction and wear. This smooth movement is essential for precise load handling and safe operation.

Lightweight Design: The trolley and traveling components are usually made of aluminum (in the case of portable gantry cranes) to keep the overall weight low, ensuring that the crane is easy to transport, set up, and reposition.

Safety Features: Trolley traveling mechanisms often include mechanical or electronic brakes that can stop the trolley safely when needed, preventing uncontrolled movement.

Load Handling: The trolley is designed to evenly distribute the load it is carrying, ensuring stability while moving. This is crucial to prevent tipping or instability during crane operation.

6.Crane wheel

Crane wheels are a key component of portable aluminum gantry cranes, designed to ensure smooth movement and easy operation.

They are usually made of high-strength steel or cast iron, sometimes coated with polyurethane to make operation smoother and reduce floor wear. They are precision machined to ensure durability and reliable performance.

The wheels are equipped with high-quality bearings for easy rolling and rotation. Many wheels include brakes or locking systems to stabilize the crane during operation. The load capacity of the wheels is designed to handle heavy loads while ensuring even weight distribution to prevent tipping.

Advantages of crane wheels:

Portability: enables the gantry crane to be easily moved around the workspace.

Flexibility: supports smooth operation in tight spaces or uneven floors.

Durability: resists wear and tear, ensuring a long service life even under heavy load use.

7.Crane Hook

The crane hook of a portable aluminum gantry crane is an important component used to lift and secure heavy loads. These hooks are generally designed to ensure reliability, safety, and efficiency in material handling tasks.

The hook is made of high-strength alloy steel or forged steel for durability and load-bearing capacity. It is heat-treated for increased strength and wear resistance. It is equipped with a spring-loaded safety latch to prevent the load from accidentally falling off during lifting operations. Capacity is rated according to the lifting capacity of the gantry crane, which is generally between 500 kg and 5 tons for portable aluminum models.

Many hooks include a 360-degree swivel mechanism to reduce stress on the lifting system and allow for easy positioning of the load. It is usually coated or galvanized to prevent corrosion, which is particularly important for outdoor or wet environments.

8.Motor

A portable aluminum gantry crane typically uses an electric motor to power the lifting mechanism, which could be a chain hoist or electric winch. The motor is responsible for lifting and lowering the load by driving the hoist mechanism.

The motor is usually an AC or DC electric motor, with the AC motor being more common for its durability and efficiency. For portable cranes, DC motors are sometimes used for their variable speed capabilities and compact size.

The motor's power is selected based on the weight capacity of the crane and the lifting speed required. The power rating typically ranges from 0.5 to 3 horsepower (HP) depending on the size and capacity of the gantry crane.Common voltage ratings are 110V, 220V, or 380V, depending on the region and intended use of the crane.

The motor is chosen to handle the expected lifting capacity of the gantry crane, typically from 500 kg to 5000 kg or more, depending on the specific crane model.

Portable aluminum gantry cranes typically use motor controllers to manage the lifting speed, direction, and stopping accuracy. Remote controls or pendant controls are commonly used for ease of operation.Since aluminum gantry cranes are designed for portability, the motor and hoisting mechanism are typically compact and lightweight, ensuring the overall crane remains easy to transport and set up.

.

9.Sound and light alarm system & limit switch

1) Sound and light alarm system

A sound and light alarm system for a portable aluminum gantry crane is typically integrated to enhance safety during operation. This system is designed to alert operators and nearby personnel to potential hazards or the operational status of the crane.

Sound Alarm (Buzzer or Horn):Emits a loud, audible sound to warn of specific conditions, such as:Crane start-up or shutdown,Overload or malfunction warnings,Emergency situations or operator errorOften adjustable in volume to ensure it can be heard over background noise in various environments.

Light Alarm (Flashing Light or Strobe):A visual warning to alert personnel to the crane's status or any potential danger.Flashing lights or strobes are bright and attention-grabbing, ensuring visibility even in noisy or crowded environments.Color-coded lights can indicate different warning levels:

Green (normal operation)

Yellow (caution or operational changes)

Red (emergency or dangerous condition)

2) Limit switch

Function: The limit switch is used to monitor the operating range of the crane to prevent it from exceeding the designed limit position and ensure the safe operation of the equipment.

Type: The upper limit switch is used to limit the operation of the crane when it is raised to the maximum height to prevent the lifting parts from colliding with the ceiling or other obstacles. The lower limit switch is used to limit the operation of the crane when it is lowered to the lowest position to avoid equipment damage or material falling. The side limit switch is used to limit the lateral movement of the trolley to ensure the stable operation of the crane on the track.

Working principle: Limit switches are usually set at key positions of cranes. When crane components (such as hooks, main beams, etc.) touch the limit switches, the switches will automatically cut off the power supply or stop the motor to ensure the safety of the equipment.

10.Safety Devices

1) Overload protection device: prevent the crane from overloading. When the actual load of the crane exceeds the rated lifting weight, the overload protection device 1. Overload Protection

Load Limit Switch: Prevents the crane from lifting more than its rated capacity by triggering an alarm or cutting off power to the hoist when the load exceeds the crane's limit.

Load Monitoring: Some systems include load sensors that continuously monitor the weight being lifted, ensuring it doesn't exceed safe limits.

2. Braking System

Emergency Stop Button: Provides an immediate stop function in case of emergencies.

Mechanical/Automatic Brakes: Ensures the crane stays in position when not in use or during operation, preventing the load from dropping or drifting.

3. Anti-Sway Control

This feature helps to control the horizontal sway or oscillation of the load during lifting, reducing the risk of accidents and maintaining control during operations.

4. Guardrails and Safety Rails

Some models come with optional safety rails around the lifting area, protecting operators from coming into direct contact with the crane's moving parts.

5. Pin-Locking Systems

Many portable gantry cranes have pin-locking mechanisms to secure the legs or mast sections, preventing accidental disassembly or collapse while in use.

6. Wheel Locks

Portable gantry cranes are often mobile, and wheel locks prevent the crane from moving unintentionally during use, ensuring stability when lifting loads.

11.Control Mode

1. Manual Control

The crane is operated manually, with an operator controlling all movements directly.

Features:Push/pull by hand for moving the crane.Manual chain hoists or lever hoists for lifting loads.

Advantages:Simple and cost-effective.No electrical components required.

2. Electric Hoist Control

An electric hoist is integrated with the gantry crane, allowing for powered lifting and lowering of loads.

Control Options:Pendant control (wired remote control).Wireless remote control.

Advantages:Faster and more efficient lifting.Less physical effort required.

3. Remote Control

Full wireless control of both the gantry crane's movement and the hoist using a remote control system.

Features:Operators can control the crane from a safe distance.Ideal for hazardous or hard-to-reach environments.

Advantages:Enhanced safety.Better precision in positioning.

4. Automated/Programmable Control

Equipped with sensors, software, and actuators, allowing the crane to perform predefined tasks automatically.

Features:Automation of repetitive lifting operations.Integration with warehouse management systems.

Advantages:Increases productivity.Reduces human error.

12.Sketch





Main technical



1. Lightweight Design

Aluminum is a lightweight material, making the crane easy to transport and set up.It reduces manual handling effort and minimizes the need for heavy machinery during installation.

2. Portability

Equipped with wheels or casters, these cranes can be easily moved around the workspace.Ideal for applications requiring frequent repositioning or temporary setups.

3. Corrosion Resistance

Aluminum is naturally corrosion-resistant, making these cranes suitable for outdoor or humid environments.They require less maintenance compared to steel alternatives.

4. Ease of Assembly

Modular components make assembly and disassembly straightforward, saving time during setup.No need for permanent installation, making them perfect for rented spaces or temporary projects.

5. Adjustable Features

Many aluminum gantry cranes have adjustable height and span options, allowing flexibility for different load sizes and applications.

6. High Strength-to-Weight Ratio

Despite being lightweight, aluminum cranes can handle significant loads, making them efficient for lifting tasks.

7. Cost-Effective

Their durability and minimal maintenance needs make them a long-term cost-effective solution.Portable design eliminates the need for additional lifting equipment in various locations.

8. Versatility

Suitable for industries like construction, manufacturing, maintenance, and more.Can be used to lift machinery, tools, or other heavy loads in tight spaces.

9. Improved Safety

Lightweight and easy maneuverability reduce the risk of accidents during operation or transport.Adjustable features enhance ergonomic handling.

10. Customizable Options

Available in various sizes, capacities, and configurations to meet specific requirements.Can be fitted with accessories like hoists, trolleys, and slings.





1. Manufacturing and Assembly Lines

Used for lifting and moving heavy components or machinery during manufacturing and assembly processes.Ideal for workshops with limited space due to its portability and compact design.

2. Maintenance and Repair

Commonly used in vehicle repair shops, aircraft maintenance, and equipment servicing to lift engines, transmissions, and heavy parts.Portable nature allows it to be transported to different locations where repairs are needed.

3. Construction Sites

Assists in handling heavy materials like steel beams, tools, and machinery at construction sites.Easy to set up and move across uneven terrain.

4. Warehousing and Logistics

Facilitates the loading and unloading of goods in warehouses or distribution centers.Can be used for moving pallets or heavy boxes in confined storage areas.

5. Marine and Boating

Utilized in marinas for lifting small boats, motors, or equipment during maintenance or repair.Aluminum's corrosion resistance makes it ideal for marine environments.

6. Cleanrooms and Laboratories

Frequently used in cleanroom environments due to aluminum's non-corrosive properties and lightweight design.Helps in installing or maintaining sensitive laboratory equipment.

7. Events and Exhibitions

Used for setting up heavy equipment or decorations in event spaces and trade shows.Portable design allows for quick assembly and disassembly.

8. Small-Scale Factories and Workshops

Perfect for light-duty lifting tasks in small workshops where a permanent overhead crane isn't feasible.Can be relocated easily to fit changing operational needs.

Crane production procedure

1. Design and Engineering

Identify load capacity, span, height, and portability requirements.Create CAD models and engineering drawings.Perform structural calculations for weight distribution, load-bearing, and safety.Use high-strength aluminum alloy for the frame and critical load-bearing parts.Choose corrosion-resistant and lightweight materials for portability.

2. Material Procurement

Source aluminum extrusions, bolts, and fasteners that meet the required specifications.Procure standard components like casters, hoists, and trolleys (if part of the design).Perform quality checks on incoming materials.

3. Fabrication

Use precision cutting equipment (e.g., CNC saws) to cut aluminum profiles to size.Drill holes for connections and mounting points.

Mill or shape parts as per design.Weld the critical load-bearing joints using TIG (Tungsten Inert Gas) welding for aluminum.Deburr and polish edges.Apply anodizing or powder coating for corrosion resistance and aesthetics.

4. Assembly

vertical columns, horizontal beam (main girder), and base.

Install casters or wheels for portability, ensuring they are lockable for stability.Add mechanisms for height adjustment (e.g., telescopic legs or pin-and-hole systems).Install the trolley and hoist system (if part of the design).

5. Quality Control

Perform dimensional checks to ensure the structure meets design specifications.Test load capacity and structural stability under various conditions.Inspect welds, connections, and mechanical fittings for defects.

6. Safety Testing

Conduct dynamic and static load tests to ensure the crane can handle rated loads safely.Test locking mechanisms for portability and stability.Verify compliance with relevant standards (e.g., ANSI, OSHA, CE).

7. Final Finishing

Clean the crane to remove debris and oil.Apply final surface finishes (e.g., protective coatings).Attach labels, including load ratings, operational instructions, and safety warnings.

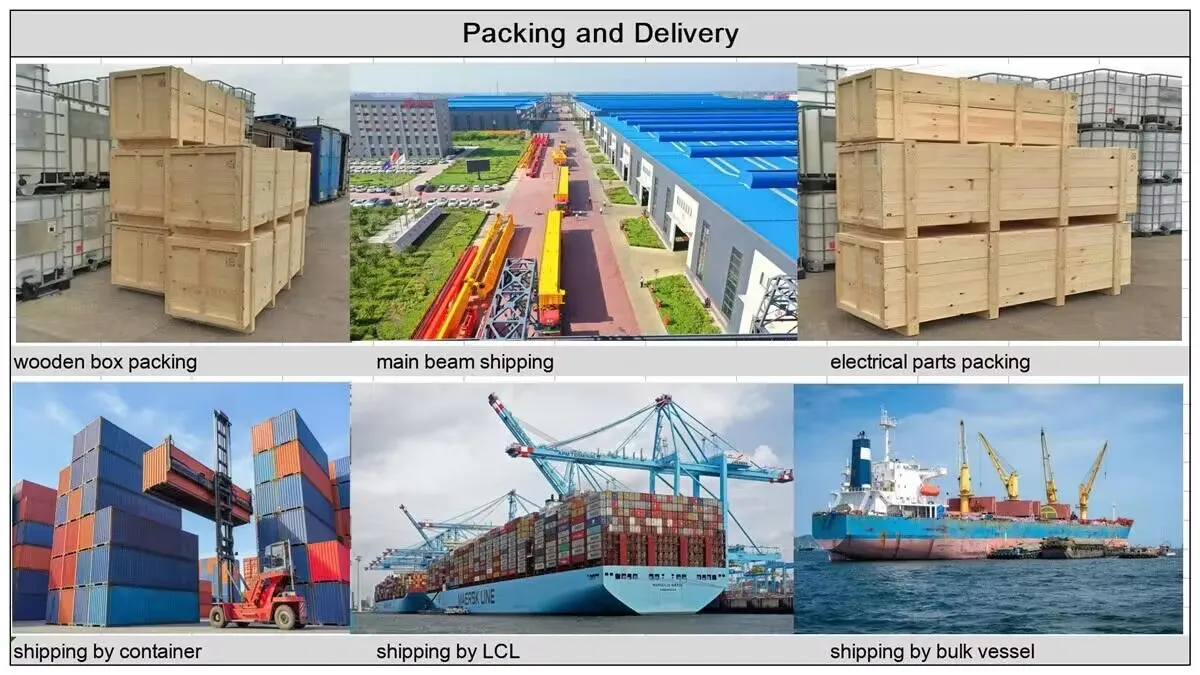

8. Packaging and Shipping

Disassemble the crane into modular components for easy transport (if required).Package components securely to prevent damage during shipping.Include an assembly manual and safety guide.

9. After-Sales Support

Provide installation guidance or services if needed.Offer maintenance advice and spare parts for long-term use.

Workshop view:

The company has installed an intelligent equipment management platform, and has installed 310 sets (sets) of handling and welding robots. After the completion of the plan, there will be more than 500 sets (sets), and the equipment networking rate will reach 95%. 32 welding lines have been put into use, 50 are planned to be installed, and the automation rate of the entire product line has reached 85%.
