3 Ton Aluminum Gantry Crane



Here's a concise introduction for a 3-ton aluminum gantry crane. The 3-ton aluminum gantry crane is a lightweight, portable, and versatile lifting solution designed for both indoor and outdoor applications. Constructed from high-strength aluminum alloy, this crane combines durability with ease of mobility, making it ideal for various industries, including manufacturing, construction, maintenance, and warehousing.

Key Features:Load Capacity: Supports up to 3 tons (6,000 lbs) of weight.Lightweight Design: Made of corrosion-resistant aluminum, ensuring long-term use in diverse environments.Portability: Includes casters or wheels for easy movement and quick setup.Adjustable Height: Customizable height options to accommodate different working environments.Ease of Assembly: Quick disassembly for convenient transport and storage.Safety and Reliability: Complies with international safety standards, ensuring secure lifting operations.

3)Applications:Equipment maintenance and repair Machinery installation Material handling in warehouses and workshops Construction site operations The 3-ton aluminum gantry crane is an efficient and cost-effective solution for businesses seeking a robust yet portable lifting system to enhance workplace productivity.

Core Components Motor

Place of Origin China

Warranty 1 Year

Weight (KG) 1 kg

Lifting Capacity(ton) 0.5-20ton

Span(m) Up to 12m

Height(m) 1-15m

Power Supply 380V,50HZ,3-Phase or Customized

Work Class A3-A5

Motor Brand ABB/SIEMENS

Working Temperature 25~40℃





1.Main beam

1) The main beam is a critical component of the 3-ton aluminum gantry crane, providing structural integrity and supporting the load during lifting operations. Engineered for high performance, the main beam is designed to ensure stability, durability, and safe load distribution.

2) High-Strength Aluminum Alloy:Constructed from lightweight yet robust aluminum alloy, ensuring corrosion resistance and long-term performance.Ideal for both indoor and outdoor applications due to its non-corrosive properties.

3) Load Capacity:Designed to support up to 3 tons (6,000 lbs) evenly distributed across its length.Customizable Length:Available in various lengths to meet specific project or workspace requirements.Can accommodate different spans to handle diverse lifting tasks.

4) Precision Engineering:Features a uniform I-beam or box-beam design to optimize weight distribution and load-bearing capacity.Smooth surface for effortless trolley movement.Lightweight and Portable:Despite its high strength, the aluminum main beam is lightweight, facilitating easier assembly and transport.

5) Safety-Enhanced Design:Engineered with reinforced sections to prevent bending or warping under heavy loads.Compliant with international safety standards for material handling equipment.Applications of the Main Beam:Works seamlessly with hoists, trolleys, and rigging equipment.Suitable for lifting and moving heavy machinery, tools, or construction materials in various industries.The aluminum main beam of a 3-ton gantry crane is a vital element that combines strength, adaptability, and portability to meet the demands of modern industrial and construction environments.



Lifting System

The lifting system of a 3-ton aluminum gantry crane is the core mechanism responsible for raising, lowering, and moving heavy loads safely and efficiently. This system is designed with precision to handle weights of up to 3 tons (6,000 lbs) while ensuring stability, safety, and ease of operation.

Key Components of the Lifting System:Electric or Manual Hoist:Electric Hoist: Equipped with a motorized system for effortless lifting and lowering.Features

adjustable speeds for precision handling.Manual Hoist (Optional):Chain or lever-operated for cost-effective, low-maintenance operation.Suitable for lighter workloads or areas without electricity.Both hoists are fitted with safety mechanisms like overload protection and braking systems.

Trolley System:Runs along the main beam, allowing horizontal movement of the load.Available in manual push trolleys or electric trolleys, depending on operational needs.Designed for smooth, stable, and precise movement of the hoist and load.

Lifting Hook:Forged steel hook with a swivel mechanism to prevent twisting of the load during lifting.Safety latch included to secure the load during operation.

3.End carriage

1) Key Features of the End Carriage:High-Strength Construction:Made from lightweight yet durable aluminum or steel alloy to balance portability and strength.

Designed to handle the weight and stress of lifting and moving heavy loads.

2)Precision Design:Connects seamlessly with the main beam and legs for proper load distribution.Engineered for stability to prevent swaying or misalignment during operations.Mobility:Equipped with heavy-duty casters or wheels, allowing easy movement of the crane:Swivel Casters: For multidirectional mobility.Fixed Casters: For straight-line movement.Lockable Wheels: Enhance stability by securely holding the crane in place during lifting.Optional pneumatic tires for rough or uneven surfaces.

3) Corrosion Resistance:Coated or anodized to prevent corrosion, making it suitable for indoor and outdoor use.Adjustable Design:The end carriage design often allows height and span adjustments to meet specific operational needs.

4) Safety Features:Anti-slip pads or textured surfaces to ensure the legs and beam remain secure.Reinforced joints and brackets to prevent structural failure under maximum load conditions.



4.Crane travelling mechanism

1) Key Components of the Travelling Mechanism Caster Wheels or Pneumatic Tires:Heavy-Duty Casters:High-capacity swivel and fixed casters allow multidirectional or straight-line movement.Typically constructed from durable materials such as polyurethane or steel to withstand heavy loads.

2) Pneumatic Tires (Optional):Ideal for rough or uneven terrain in outdoor environments.Lockable Wheels:Integrated wheel locks provide stability during lifting operations, preventing unwanted movement.

3) Wheel Bearings:Precision-engineered bearings ensure smooth rotation and reduce friction for easy crane mobility.Low-maintenance design for long-lasting performance.

4) Trackless or Rail-Mounted Operation:Trackless (Freestanding):Moves freely across flat surfaces without the need for rails.Suitable for versatile applications in warehouses or workshops.Rail-Mounted Option (Optional):Steel wheels run along fixed tracks for precise guided movement.Ideal for repetitive tasks in linear workstations.

5.Trolley travelling mechanism

1) Key Components of the Trolley Travelling Mechanism Trolley Frame:Constructed from high-strength steel or aluminum alloy for durability and lightweight performance.Designed to securely attach to the hoist and withstand loads up to 3 tons (6,000 lbs).

2) Wheels/Rollers:Precision-engineered wheels or rollers run along the underside or top of the main beam.Made from hardened steel or polymer materials for durability and smooth operation.Anti-friction bearings reduce resistance and enable effortless movement.

3) Travel Mechanism Options:Manual Push Trolley:Operated by manually pushing or pulling the load for movement.Cost-effective and low-maintenance option for lighter workloads.

4) Geared Trolley:Equipped with a hand chain connected to gears, allowing controlled movement along the beam.Ideal for precision positioning of heavy loads.

5) Adjustable Width:Designed to fit a range of beam sizes, ensuring compatibility with different gantry crane configurations.Safety Features:Anti-Derailment Design: Prevents the trolley from slipping off the beam during operation.Overload Protection: Ensures the trolley does not exceed its maximum load capacity.

6.Crane wheel

1) Key Features of Crane Wheels Material Composition:Constructed from high-strength materials like steel, cast iron, or polyurethane for durability and longevity.Corrosion-resistant options are available, suitable for outdoor and high-moisture environments.

2) Load-Bearing Capacity:Specifically engineered to handle the crane's full load capacity of 3 tons (6,000 lbs) without deformation or damage.

3) Types of Wheels:Swivel Wheels: Provide 360-degree rotation for multidirectional movement, improving maneuverability in tight spaces.Fixed Wheels: Allow straight-line movement for stability and controlled operation.Pneumatic Wheels (Optional): Ideal for rough or uneven surfaces in outdoor environments.

4) Precision Bearings:High-quality bearings minimize friction, ensuring smooth and quiet operation.Reduces wear and tear, extending the lifespan of the wheels.

5) Locking Mechanism:Integrated locks or brakes on certain wheels prevent unintentional movement during lifting operations, enhancing safety.

7.Crane Hook

1) Key Features of the Crane Hook Material Strength:Made from forged alloy steel for exceptional strength and durability.Heat-treated to enhance resistance to wear, deformation, and fatigue under heavy loads.Load Capacity:Designed to lift up to 3 tons (6,000 lbs) safely and efficiently.Includes a safety margin to ensure reliability in heavy-duty operations.

2)Swivel Mechanism:Features a 360-degree swivel for enhanced maneuverability.Reduces load twisting and simplifies the alignment of the lifted materials.Safety Latch:Equipped with a spring-loaded safety latch to prevent accidental detachment of the load.Ensures secure and stable lifting even during dynamic operations.

3) Ergonomic Design:Wide throat opening accommodates a variety of slings, chains, and lifting devices.Smooth, polished surface reduces wear on ropes and chains.Standards Compliance:Manufactured in accordance with international safety and quality standards (e.g., ISO, ASME).Includes markings for load capacity, certification, and traceability.

4) Versatility: Compatible with a variety of lifting equipment, including wire ropes, chains, and synthetic slings.Corrosion Resistance: Treated to resist rust and environmental damage, making it suitable for indoor and outdoor applications.

Motor

Motor of a 3-Ton Aluminum Gantry Crane Key Features of the Crane Motor High Performance:Delivers sufficient torque and power to lift loads up to 3 tons (6,000 lbs) with ease.Designed for continuous operation without overheating or excessive energy consumption.

Electric Motors:AC or DC motors, depending on the crane's design and power source.Commonly equipped with a single-phase or three-phase system for industrial-grade performance.Variable Frequency Drive (VFD) (Optional):Provides adjustable speed control for precise lifting and travel operations.

Durable Construction:Built with heavy-duty materials to withstand demanding environments.Sealed housing to protect against dust, moisture, and contaminants.Energy Efficiency:Optimized for low power consumption, reducing operational costs.Often meets energy efficiency standards such as IE2 or IE3 ratings.

Integrated Safety Features:Overload Protection: Prevents damage by shutting down the motor if it exceeds the crane's load capacity.Brake System: Electric or electromagnetic brakes ensure secure load holding and stopping during operation.Emergency Stop: Allows immediate shutdown in case of an emergency.

.

Sound and light alarm system & limit switch

sound and Light Alarm System & Limit Switch in a 3-Ton Aluminum Gantry CraneThe sound and light alarm system and limit switch are crucial safety components in a 3-ton aluminum gantry crane. These features ensure safe operation by alerting operators to potential hazards and preventing overtravel or damage to the crane.

Sound and Light Alarm System;The sound and light alarm system enhances operational safety by providing visual and auditory signals during critical crane operations.Key Features:Auditory Alarm:Emits a loud sound (typically 85–120 decibels) to alert workers of crane movement, load lifting, or potential dangers.

Durable and Weather-Resistant:Designed for indoor and outdoor use, resistant to dust, water, and vibration.Benefits:Enhances workplace safety by reducing the risk of accidents.Ensures compliance with safety regulations in industrial environments.Increases awareness of crane activity, particularly in busy or low-visibility areas.

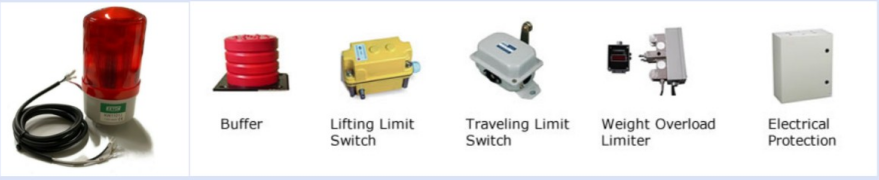

10.Safety Devices

1) Overload protection device: prevent the crane from overloading. When the actual load of the crane exceeds the rated lifting weight, the overload protection device will automatically cut off the power supply or sound an alarm to prevent damage to equipment and personnel.

2) Emergency stop device: used to manually stop the operation of the crane in an emergency. The operator can quickly cut off the power supply of the equipment by triggering the emergency stop button to prevent accidents.

3) Windproof device: prevent the crane from being blown by strong winds when working outdoors. The windproof device can be a mechanical locking device or an electric locking device. When the wind speed exceeds the safety standard, the crane will automatically lock to prevent the equipment from being dangerous due to wind.

4) Electrical protection device: prevent equipment damage or safety accidents caused by electrical faults. Electrical protection devices include short-circuit protection, undervoltage protection, phase failure protection, etc., which can automatically cut off the power supply when the electrical system is abnormal to prevent damage to the equipment or affect safety.

5) Anti-sway device: reduce or prevent the swing of the hook and load during lifting, ensure the stability of material handling, and prevent the material from falling off due to swinging.

6) Buffer device: A buffer is installed at the terminal position of the crane. When the equipment or vehicle approaches the end of the track, the buffer device can absorb part of the impact force to avoid damage to the equipment or personnel.

11.Control Mode

1) Ground handle control: The operator controls the operation of the crane by holding a control handle connected by a cable. There are multiple buttons on the handle, which are used to control the lifting, lateral movement and trolley movement of the crane. The cable is generally of a certain length, allowing the operator to operate at a safe distance.

2) Wireless remote control: The operation of the crane is controlled by a wireless remote control, which usually has buttons or rockers to control lifting, lateral movement and trolley operation. Without cable connection, the operator can move freely and operate the equipment at a long distance.

3) Cab control: The operator sits in the cab installed on the crane and operates directly through handles, buttons or joysticks. The cab is usually installed on the trolley or car of the crane, and the operator can directly observe the lifting operation site.

4) Centralized control (PLC control system): Use a programmable logic controller (PLC) for automated control to control the various actions of the crane through pre-programmed programs. The operator can control and monitor the operating status of the crane in the central control room or remotely through the human-machine interface (HMI).

12.Sketch







Main technical





Advantages of a 3-Ton Aluminum Gantry Crane A 3-ton aluminum gantry crane offers numerous benefits that make it a popular choice for material handling in various industries. Its lightweight yet durable construction, versatility, and ease of operation provide an efficient solution for lifting and moving heavy loads.

Lightweight and Portable Design Material: Made of high-strength aluminum, which is significantly lighter than steel while maintaining durability.Ease of Transport: Can be easily moved by a small team or even manually, depending on the design.Quick Assembly and Disassembly: Modular components make it easy to set up, relocate, and store when not in use.

High Strength-to-Weight Ratio Despite its lightweight design, it can handle heavy loads up to 3 tons (6,000 lbs).Ensures stability and reliability during lifting operations.. Corrosion Resistance Aluminum is naturally resistant to rust and corrosion, making it ideal for outdoor environments or locations with high humidity.Reduces maintenance requirements, ensuring long-term durability.

Adjustability;Height Adjustment: Many models feature adjustable height, allowing the crane to accommodate different lifting requirements.Span Adjustment: Adjustable beam length or width for greater flexibility in load handling.Custom Configurations: Can be tailored to specific tasks or work spaces.

Easy Maneuverability Casters/Wheels: Equipped with swivel or locking wheels for smooth movement across various surfaces.Trackless Operation: Can be used without rails, making it suitable for temporary or mobile workstations.Outdoor Use: Pneumatic wheels or optional tracks allow operation on uneven terrain.





Manufacturing and Production Facilities Tasks: Lifting heavy machinery, tools, or production components during assembly or disassembly.Benefits:Easily adjustable to accommodate different working heights and spans.Can be moved between production lines for increased flexibility.

Warehousing and Logistics Tasks: Loading and unloading goods, organizing inventory, and transferring materials within the facility.Benefits:Compact design works well in confined spaces.Swivel casters enable smooth movement across warehouse floors.

Construction Sites Tasks: Lifting and positioning construction materials like beams, panels, and heavy equipment.Benefits:Lightweight aluminum construction allows for easy transport to various job sites.Corrosion resistance ensures durability in outdoor environments.

Maintenance and Repair Operations Tasks: Lifting engines, heavy equipment, or vehicles during maintenance or repair activities.Benefits:Adjustable height and portable design make it ideal for various workspaces.Can be used indoors or outdoors without risk of rust or corrosion.

Aviation and Aerospace Tasks: Handling aircraft parts, engines, and tools during assembly or maintenance.Benefits:High strength-to-weight ratio ensures reliable performance while being easy to maneuver.Non-corrosive material makes it suitable for clean and controlled environments.

Utilities and Infrastructure Maintenance Tasks: Installing and maintaining transformers, generators, or other utility equipment.Benefits:Mobility enables use in remote or difficult-to-reach locations.Height adjustment allows for precise load positioning.

Crane production procedure

1. Design stage: Determine the parameters of the crane, such as rated load, span and lifting height, according to the customer's needs and working environment. Carry out detailed structural design, including main beam, end beam, crane, lifting mechanism, etc., to ensure that the design meets safety standards and usage requirements. Select appropriate materials according to the design, usually high-strength steel to ensure the stability and durability of the structure.

2. Manufacturing stage: Prepare the required raw materials and parts according to the design drawings. Cut, bend and shape the steel to prepare structural components such as main beams and end beams. Weld the various components and assemble them into an overall structure. This step requires guaranteed welding quality to ensure strength and stability.

3. Machining: Machining key components such as motors, gears, bearings, etc. to ensure that their size and accuracy meet the requirements. Anti-corrosion treatment of components, such as painting and galvanizing, increases the durability and aesthetics of the equipment.

4. Electrical system installation: Install electrical components such as motors, controllers, switches, sensors and alarm systems. Connect and wire cables to ensure the normal operation of the electrical system.

5. Assembly phase: Assemble all components and systems as a whole, connect the lifting mechanism, trolley running mechanism and control system. Perform a comprehensive inspection of the assembled crane to ensure that all components and systems are working properly, and perform preliminary debugging.

6. Testing phase: Perform static load test on the crane to check the structural strength and stability. Perform dynamic test on the crane, including tests on lifting, moving, braking and other functions, to ensure that its performance meets the design requirements. Check the functions of safety devices, such as limit switches, overload protection, etc., to ensure the safety of the equipment during operation.

7. Quality control: Perform quality control on each link in the production process to ensure compliance with industry standards and customer requirements. Record various data and inspection results in the production process for subsequent traceability and analysis.

8. Delivery and installation: Pack and prepare the completed crane for transportation to ensure that it is not damaged during transportation. Deliver the crane to the customer's site for installation, and perform on-site debugging and acceptance. Provide operation training to customers to ensure that they are proficient in the use and maintenance of the crane.

Workshop view:
