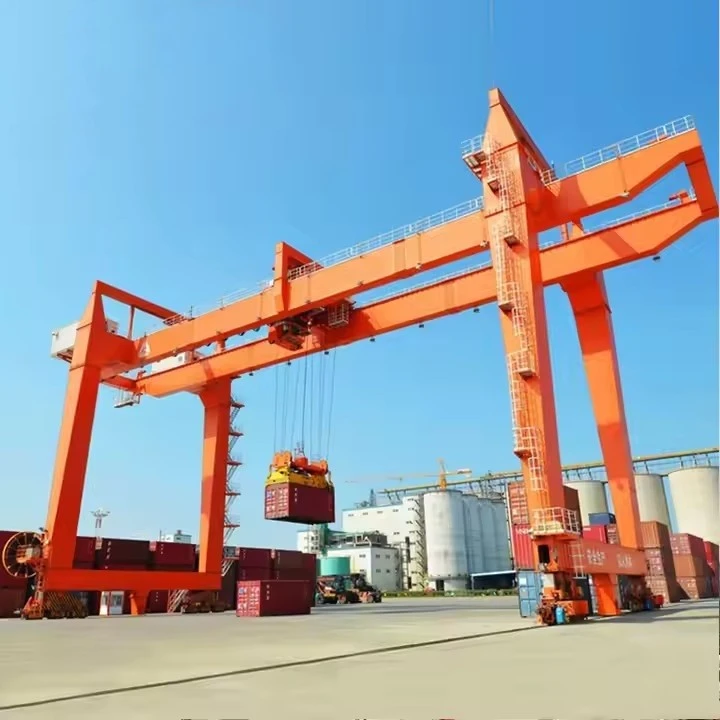

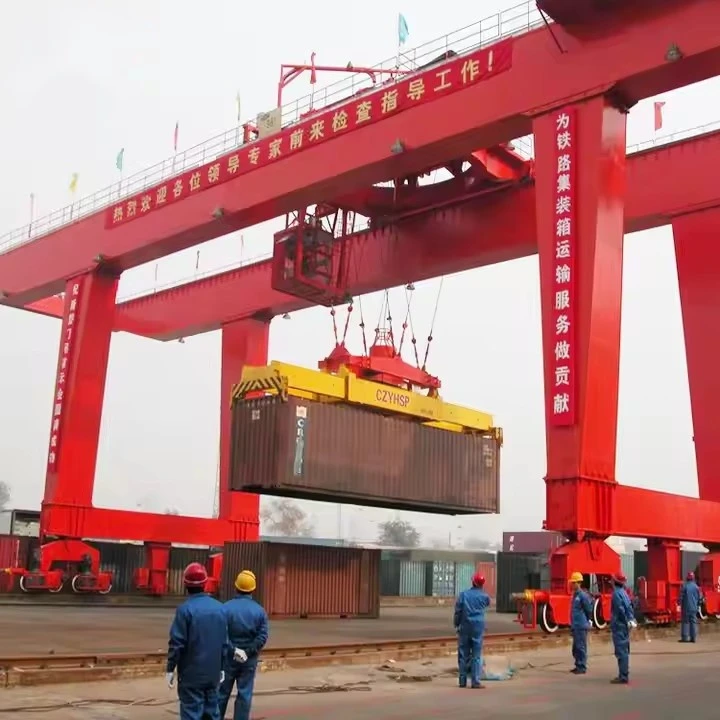

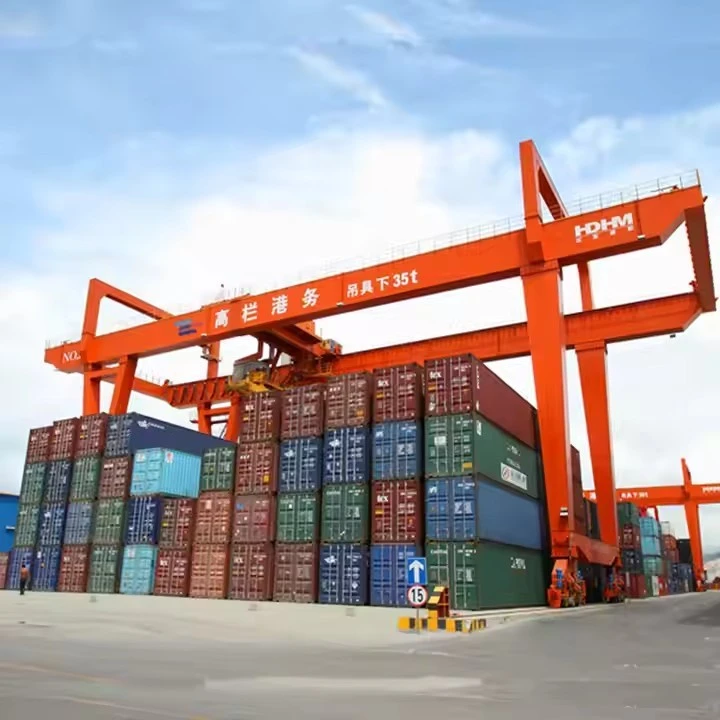

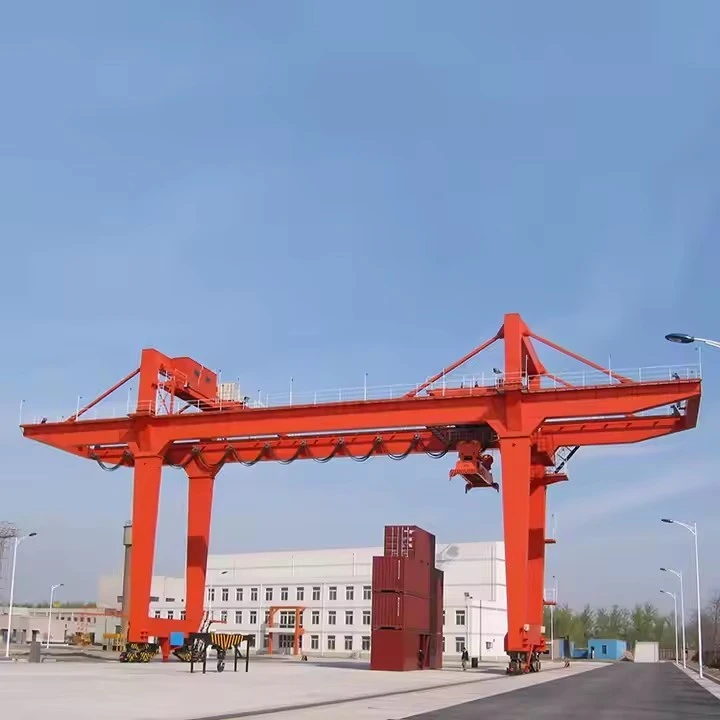

Container Gantry Crane





A container gantry crane is a large, heavy-duty crane used in ports, terminals, and intermodal yards to load and unload shipping containers from vessels, trucks, and trains. These cranes are essential for efficient cargo handling in global trade.



Key Features:

Lifting Capacity: Ranges from 30 to over 100 tons.

Span Width: Adjustable to cover multiple lanes (e.g., 6–12 containers wide).

Automation: Modern cranes may be semi or fully automated for efficiency.

Power Source: Electric (for STS & RMG) or diesel/hybrid (for RTG).



Rated Loading Capacity：5 ton, 10 TON, 100 ton, customized, 16/3.2 ton, 20/5 ton, 32/5 ton, 50/10 ton

Max. Lifting Height：40m, customized

Span：35m or clients' demands

Warranty：1 Year

Weight (KG)：50000 kg

Core Components：PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Control way：Cab, wireless remote control or customized





Types of Container Gantry Cranes:

Ship-to-Shore (STS) Gantry Cranes

Used at port terminals to load/unload containers from ships.

High lifting capacity (up to 100+ tons).

Can span multiple rows of containers on a vessel.

Rail-mounted for movement along the quay.

Rubber-Tired Gantry (RTG) Cranes

Mobile cranes used in container yards to stack and move containers.

Run on rubber tires (diesel or electric-powered).

Typically handle 1-over-5 or 1-over-6 container stacks.

Rail-Mounted Gantry (RMG) Cranes

Similar to RTGs but run on fixed rails.

Used in intermodal yards and automated terminals.

More energy-efficient than RTGs.

Mobile Harbor Cranes

Versatile cranes that can handle containers and other cargo.

Often used in smaller ports or multipurpose terminals.



Key Components of Container Gantry Cranes



Main Girder:

Supports the trolley and spreader. Can be single or double girder, with double-girder designs handling heavier loads (e.g., 500 tons).



.



Trolley & Hoist Mechanism:

Moves horizontally along the girder, equipped with wire rope or chain hoists for lifting containers. Some models feature automated spreaders with image recognition for precision.





Legs/Outriggers:

Provide stability. RTGs use rubber tires, while RMGs run on rails

.

Spreader:

Attaches to containers via twist locks. Advanced systems auto-adjust for 20ft/40ft/45ft containers.



Control Systems:

Include PLCs, remote controls, and safety features like overload protection.



Power Source:

Electric (common for STS/RMGs) or diesel/hybrid (for RTGs).

Crane travelling mechanism

1.The crane traveling mechanism of an industrial gantry crane is responsible for moving the crane horizontally along its runway beams or rails. This mechanism allows the crane to transport loads over a larger area, making it extremely useful in warehouses, shipyards, and other industrial environments where heavy items need to be moved around a broad expanse.

2.Here are the key components and features of the crane traveling mechanism:

Components of the Traveling Mechanism

Drive Units (Traction Units): These are typically electric motors that provide the power to move the crane. The number of drive units can vary depending on the size and capacity of the crane; some cranes may have multiple motors for each side to distribute the load.

Gearboxes: Gearboxes are used to reduce the high speed of the motor to a lower speed suitable for the crane's travel. They also increase the torque output, which is necessary to move the crane and its load.

Wheels or Rollers: Large wheels or rollers are mounted on axles and are driven by the motor through the gearbox. These wheels or rollers ride along the top of the runway beams or rails and are crucial for stable movement.

3.The traveling mechanism is one of the most critical components of an industrial gantry crane, as it determines the crane's mobility and range of operation. Proper maintenance and regular inspections are crucial to ensure that the traveling mechanism operates smoothly and safely. Any issues with this mechanism can significantly impact the crane's performance and safety, making it vital to address any problems promptly.



Trolley travelling mechanism

1.The trolley traveling mechanism of an industrial gantry crane is responsible for moving the hoist or lifting mechanism horizontally along the crane's main beam or gantry. This allows the crane to position the load precisely in the transverse direction.

2.The trolley traveling mechanism consists of several key components:

Components of the Trolley Traveling Mechanism

Drive Unit: Typically an electric motor, the drive unit provides the power to move the trolley. The size and capacity of the motor depend on the crane's lifting capacity and the required speed of the trolley.

Gearbox: The gearbox reduces the high speed of the motor output to a lower speed suitable for the trolley's travel. It also increases the torque, which is necessary to move the hoist mechanism and any attached load.

Wheels or Rollers: The trolley rides on wheels or rollers that are mounted on axles. These wheels or rollers travel along the flanges or tracks on the main beam, allowing the trolley to move back and forth.

Brake System: A braking system is integrated into the trolley to control its movement and to hold it in position when needed. This can be a mechanical brake, an electromechanical brake, or a dynamic braking system.

3.The trolley traveling mechanism is crucial for precise positioning of the load in the transverse direction. It allows the crane to place loads accurately at different points along the length of the gantry. Proper maintenance and regular inspections are essential to ensure that the trolley mechanism operates smoothly and safely. Any issues with this mechanism can significantly impact the crane's operational efficiency and safety, making it vital to address any problems promptly.



6.Crane wheel

1.The crane wheel of an industrial gantry crane is a critical component that allows the crane to move along its runway beams or rails. These wheels are designed to support the weight of the crane, its load, and any additional dynamic forces generated during operation.

2.Here are the key features and functions of crane wheels:

Features of Crane Wheels

Material: Crane wheels are typically made from high-strength materials such as steel or cast iron to ensure they can withstand the heavy loads and stresses involved in lifting operations.

Size and Configuration: The size of the wheels varies depending on the capacity and design of the crane. They can be larger for heavier cranes to distribute the load more evenly. The number of wheels per axle and the number of axles per crane can also vary based on design requirements.

3.Crane wheels play a vital role in the mobility and stability of industrial gantry cranes. They are responsible for transferring the weight of the crane and its load to the runway beams or rails while allowing for smooth travel. The durability and efficiency of the crane's movement largely depend on the quality and condition of these wheels.

4.Proper maintenance of crane wheels, including regular inspections and timely replacement of worn components, is crucial for the safe and reliable operation of the crane. Neglecting wheel maintenance can lead to increased downtime, reduced efficiency, and potential safety hazards.



7.Crane Hook

For cranes equipped with hooks, common types include:

Forged Steel Hook (SWL 1–100+ tons)

Used in heavy-duty applications (e.g., shipyards).

Complies with FEM/ISO standards for load safety.

Rotating Hook Block

Allows 360° rotation for precise positioning.

Often paired with anti-sway systems.

Safety Latch Hook

Prevents accidental load detachment.

Mandatory under OSHA/ASME B30.10 regulations.

Safety Devices for Hooks in Gantry Cranes

Load Limiters: Cut off power if overloaded.

Hook Height Limit Switch: Prevents over-hoisting.

Wear Sensors: Detect cracks or deformation in the hook.

Anti-Slip Pads: For gripping irregular loads.

Why Spreaders Are Preferred Over Hooks in Container Handling

Speed: Auto-locking spreaders handle containers in seconds vs. manual hook attachment.

Safety: Eliminates human error in load securing.

Compatibility: Designed for ISO container standards.

Conclusion

While spreaders dominate container handling, hooks remain vital for non-containerized cargo in multipurpose gantry cranes. Modern systems integrate both, with strict safety protocols for hook operations.



Motor

The motor of an industrial gantry crane is a critical component that provides the power necessary for lifting and moving loads. Motors in gantry cranes are typically electric and can be categorized into two main types based on their function: the hoisting motor and the travelling (or traversing) motor.

The hoisting motor is responsible for lifting and lowering the hook or grab that engages with the load. This motor's primary function is to control the vertical movement of the crane's loading mechanism.

Crane motors are the powerhouse of industrial gantry cranes, providing the energy required for both lifting and moving operations. The performance, reliability, and safety of the crane are heavily dependent on the motors' efficiency and durability. Proper selection, maintenance, and regular inspections of these motors are crucial for ensuring the crane operates smoothly and safely. Any issues with the motors can lead to operational inefficiencies, increased downtime, and potential safety risks, making prompt attention to motor problems essential.

.

Sound and light alarm system & limit switch

1.Industrial gantry cranes are equipped with a sound and light alarm system and limit switches to enhance safety and operational efficiency. These components play crucial roles in preventing accidents and ensuring that the crane operates within its designated parameters.

2.Sound and Light Alarm System

The sound and light alarm system is designed to alert personnel in the vicinity of the crane about its operational status. This system is particularly important in environments where the crane operates in close proximity to workers or where visibility is limited.

3.Limit Switches

Limit switches are electronic devices that serve as critical safety features on industrial gantry cranes. They detect the position of the crane or its components and cut off power when the crane reaches its operational limits, preventing potential accidents and damage.

4.Both the sound and light alarm system and limit switches are integral to the safe operation of industrial gantry cranes. The alarm system ensures that personnel are aware of the crane's movements and operational status, reducing the risk of collisions or other hazards. Limit switches, on the other hand, automate safety by physically preventing the crane from operating beyond its design limits. Together, these systems contribute to a safer workplace and protect both the crane equipment and the personnel working around it. Proper maintenance and regular testing of these systems are essential to ensure they function reliably and effectively.

10.Safety Devices

1. Load Monitoring & Overload Protection

Load Moment Indicator (LMI): Monitors the crane's load in real-time and prevents overloading by cutting off operations if the limit is exceeded 5.

Anti-Two-Block System: Prevents the hoist from lifting beyond safe limits, avoiding collisions between the spreader and trolley 10.

2. Anti-Collision & Sway Control Systems

Laser/Radar Anti-Collision: Detects obstacles (e.g., other cranes, trucks) and automatically stops movement to prevent crashes 16.

Active Load Control (ALC): Eliminates container sway during movement, improving precision and safety 10.

3. Emergency Stop & Power Fail-Safes

E-Stop Buttons: Installed in operator cabins and remote controls for immediate shutdown in emergencies 9.

Backup Power (UPS): Ensures safe lowering of loads during power failures 5.

4. Automated Container Handling Safety

Twist Lock Sensors: Verify proper container locking before lifting 1.

AI Vision Systems: Use optical character recognition (OCR) to detect misaligned containers or damaged locks 4.

5. Structural & Environmental Safeguards

Wind Speed Alarms: Automatically halt operations if wind exceeds safe limits (e.g., >20 m/s) 1.

Anemometers & Tilt Sensors: Monitor crane stability, especially in ship-to-shore (STS) operations 16.



11.Control Mode

(1. Manual Control (Operator Cabin)

How it works: An operator sits in a cabin mounted on the crane, controlling movements via joysticks, buttons, and touchscreen panels.

Best for:

STS (Ship-to-Shore) cranes in busy ports.

Older RTG (Rubber-Tired Gantry) cranes without automation.

Advantages:

Direct visibility of operations.

Suitable for complex lifts (e.g., uneven container stacks).

Disadvantages:

Requires skilled operators.

Fatigue can reduce efficiency over long shifts.

(2. Remote Control (Wireless/Wired)

How it works: The operator uses a handheld remote control (radio or wired) to move the crane from the ground.

Best for:

RTG cranes in container yards.

Smaller RMG (Rail-Mounted Gantry) cranes.

Advantages:

Operator can move freely for better visibility.

Safer than cabin operation in harsh weather.

Disadvantages:

Limited range (typically 100–200m).

Still requires human intervention.

(3. Semi-Automated Control (PLC + Sensors)

How it works:

The crane follows pre-programmed paths (e.g., stacking containers in a yard).

Uses laser scanners, encoders, and anti-sway systems for precision.

Operators monitor from a control room and intervene if needed.

Best for:

Modern RTG & RMG cranes in automated terminals.

Ports transitioning to full automation.

Advantages:

Reduces human error.

Increases productivity (consistent movements).

Disadvantages:

High initial setup cost.

Requires maintenance of sensors and software.

(4. Fully Automated Control (AI + OCR + Autonomous Operation)

How it works:

AI-driven with Optical Character Recognition (OCR) to read container numbers.

Automated trolley & spreader positioning using GPS and lidar.

No human intervention (controlled by terminal operating system, TOS).

Best for:

Fully automated ports (e.g., Rotterdam, Shanghai Yangshan).

High-volume terminals needing 24/7 operations.

Advantages:

Zero labor costs for crane operation.

Highest efficiency (up to 40+ moves per hour).

Disadvantages:

Extremely high investment cost.

Requires 5G/real-time data networks for reliability.



12.Sketch









Advantages of Container Gantry Cranes

Container gantry cranes are essential in modern logistics and port operations due to their high efficiency, versatility, and automation capabilities. Key advantages include:



1. High Efficiency & Productivity

Fast loading/unloading: Ship-to-Shore (STS) cranes can handle 20–30+ containers per hour, reducing vessel turnaround time.

Automated operations: Modern RMG and RTG cranes use AI and sensors for precise container stacking, minimizing human error.

Wide span coverage: Can stack containers 6–10 rows wide (RTGs) or span entire ship widths (STS cranes).



2. Versatility in Handling

Adjustable spreaders: Can lift 20ft, 40ft, 45ft, and even twin 20ft containers with auto-locking twist locks.

Multi-purpose use: Some gantry cranes handle heavy cargo, bulk materials, and wind turbine components (up to 500+ tons).



3. Reduced Labor & Operational Costs

Automated stacking yards (ASCs) reduce the need for manual labor.

Electric-powered RMGs lower fuel costs compared to diesel RTGs.



4. Space Optimization

Vertical stacking (1-over-5 or 1-over-7 configurations) maximizes storage in congested ports.

Rail-mounted designs (RMGs) allow precise movement in tight spaces.



5. Safety & Reliability

Anti-sway technology prevents accidents during high winds.

Overload protection & collision avoidance systems enhance safety.





Applications of Container Gantry Cranes



1. Port Terminals (Ship-to-Shore - STS Cranes)

Loading/unloading mega-container ships (e.g., Maersk Triple-E class).

Intermodal transfers between ships, trucks, and trains.



2. Container Yards & Depots (RTG & RMG Cranes)

Stacking and retrieving containers in storage yards.

Automated terminals (e.g., Rotterdam, Shanghai) use driverless RMGs.



3. Rail & Inland Intermodal Terminals

Transferring containers from trains to trucks.

Cross-docking operations in logistics hubs.



4. Heavy Industry & Construction

Shipbuilding: Handling large steel sections.

Wind energy: Assembling turbine blades (using heavy-duty gantry cranes).

Prefabricated construction: Moving large concrete modules.



5. Specialized Applications

Military & disaster relief: Rapid container handling in temporary ports.

Offshore logistics: Supporting container movements on oil rigs.



Container gantry cranes are indispensable in global trade, offering speed, automation, and space efficiency. Their applications span ports, rail yards, construction, and heavy industries, making them a backbone of modern logistics.





1. Design and Engineering

Detailed Engineering: Develop detailed engineering drawings and specifications, including the main beam, hoist, trolley, end carriages, and other components.

Simulation and Modeling: Use computer-aided design (CAD) and simulation tools to model the crane's performance and optimize its design.

2. Material Selection

Material Specifications: Select high-quality materials that meet the requirements for strength, durability, and heat resistance. Common materials include high-strength steel, alloys, and specialized coatings.

Procurement: Source materials from approved suppliers, ensuring they meet the necessary quality and certification standards.

3. Component Fabrication

Cutting and Shaping: Cut and shape raw materials into the required components, such as beams, columns, and brackets. This may involve processes like plasma cutting, laser cutting, and machining.Welding and Assembly: Weld components together to form the crane's structural elements. This includes welding the main beam, end carriages, and other load-bearing parts.

4. Assembly

Sub-Assembly: Assemble individual components, such as the hoisting system, trolley, and end carriages, into sub-assemblies. This involves fitting parts together and ensuring proper alignment.Main Assembly: Combine sub-assemblies to construct the complete crane structure. This includes mounting the hoist and trolley on the main beam, attaching the end carriages, and installing the control systems.

5. Integration of Systems

Electrical Systems: Install electrical components, including motors, control panels, wiring, and sensors. Ensure that the crane's electrical systems are properly integrated and tested.

Control Systems: Implement and configure control systems, such as programmable logic controllers (PLCs), remote controls, and safety devices. Verify that the control systems function correctly and are calibrated.

6. Testing and Quality Assurance

Pre-Operational Testing: Conduct pre-operational tests to check the crane's functionality, including load testing, operational testing of the lifting and traveling mechanisms, and control system checks.

Safety Testing: Verify that safety features, such as limit switches, alarms, and emergency stops, are working correctly and meet safety standards.

Inspection: Perform a detailed inspection of the crane's structure and components to ensure compliance with design specifications and quality standards.

7. Final Adjustments and Calibration

Fine-Tuning: Make any necessary adjustments to optimize the crane's performance and ensure smooth operation. This may include calibrating sensors, adjusting controls, and fine-tuning the lifting system.

Documentation: Prepare and review documentation, including operation manuals, maintenance guides, and safety instructions.

8. Delivery and Installation

Transport: Arrange for the transport of the crane to the installation site, ensuring that it is handled and shipped safely to prevent damage.

Installation: Oversee the installation of the crane at the customer's facility, including assembly, alignment, and connection to power sources and control systems.

Training: Provide training for operators and maintenance personnel to ensure they are familiar with the crane's operation and safety procedures.

9. Commissioning and Handover

Commissioning: Conduct final commissioning tests to verify that the crane operates correctly under real-world conditions and meets performance specifications.

Handover: Officially hand over the crane to the customer, providing all necessary documentation, including certificates of compliance, warranty information, and maintenance schedules.







Material Inspection

Quality Inspection: Strict quality inspection is carried out on the purchased raw materials to ensure that they meet the design requirements and national standards.

Material Storage: Qualified materials are stored according to classification to prevent corrosion or damage.

Cutting and Forming

Steel Cutting: Use plasma cutting, laser cutting or flame cutting and other technologies to cut the steel according to the size of the design drawing.

Forming Processing: Form the steel plate through bending, rolling, welding and other processes to manufacture the main beam, end beam and other structural parts.

Welding

Component Welding: The cut and formed steel parts are welded into the main structures such as the main beam, end beam and trolley. The welding process needs to be strictly controlled to ensure the structural strength and welding quality.

Weld Inspection: Use non-destructive testing technology (such as ultrasonic testing, radiographic testing) to inspect the welds to ensure that there are no cracks or other defects.

Machining

Precision Machining: Precision machining is performed on the key components of the crane, such as wheel sets, bearing seats, pulleys, etc., to ensure their dimensional accuracy and surface quality.

Assembly of the whole machine

General assembly: On the basis of pre-assembly, the overall assembly of the crane is carried out, including the final installation of the main beam, end beam, lifting mechanism, walking mechanism, etc.

Commissioning and testing

Under dynamic conditions, the operating performance of the crane is tested, including the testing of lifting, walking, steering and other functions. The overall size of the assembled bridge crane is checked to ensure that all dimensions meet the design requirements.

Spraying and anti-corrosion treatment

Surface treatment Rust removal: Rust removal on the surface of the crane, common methods include sandblasting, pickling, etc. Primer spraying: Spray anti-corrosion primer on the treated surface to prevent metal oxidation and corrosion. Topcoat spraying Color spraying: Spray topcoat according to customer requirements or industry standards to give the crane a protective and decorative effect. Marking: After spraying, mark the crane's identification information in accordance with the specifications, such as model, rated load, etc.

Factory and installation

Packaging and transportation

Packaging protection: Protectively package the key components of the crane to prevent damage during transportation. Transportation arrangement: According to the equipment size and transportation conditions, select a suitable transportation method to transport the crane to the customer's site.

Acceptance and delivery

Customer acceptance

On-site acceptance: The customer conducts on-site acceptance of the crane according to the contract requirements and technical specifications to check the performance and quality of the equipment.

Problem rectification: If any problems are found, the manufacturer needs to rectify them in time to ensure that the equipment fully meets the customer's requirements. Delivery and use Operation training: The manufacturer usually trains the customer's operators to ensure that they can operate the crane correctly and safely.

Hot Tags: container gantry crane, China container gantry crane manufacturers, suppliers, factory
