Largest Gantry Crane

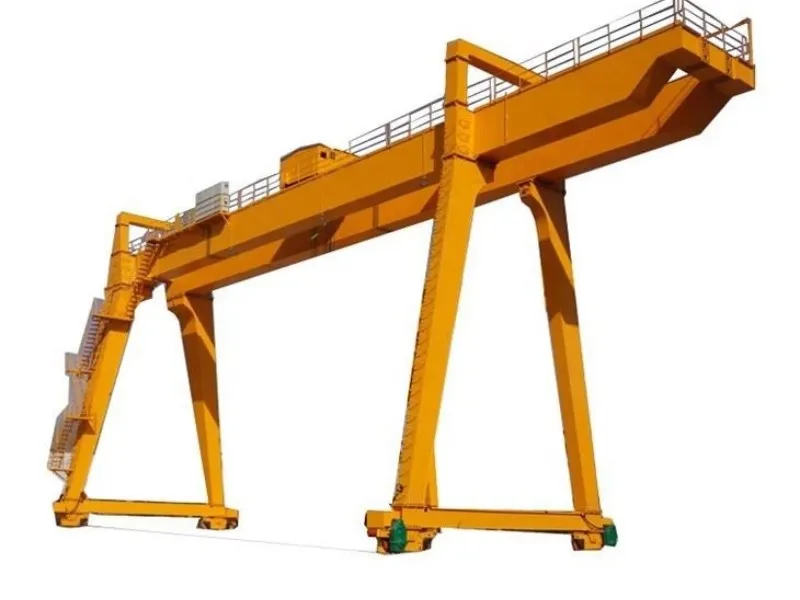

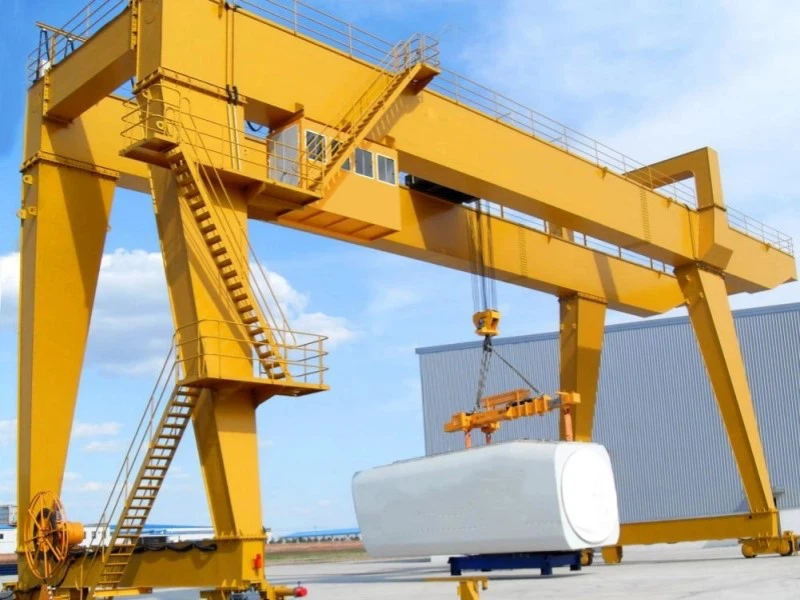

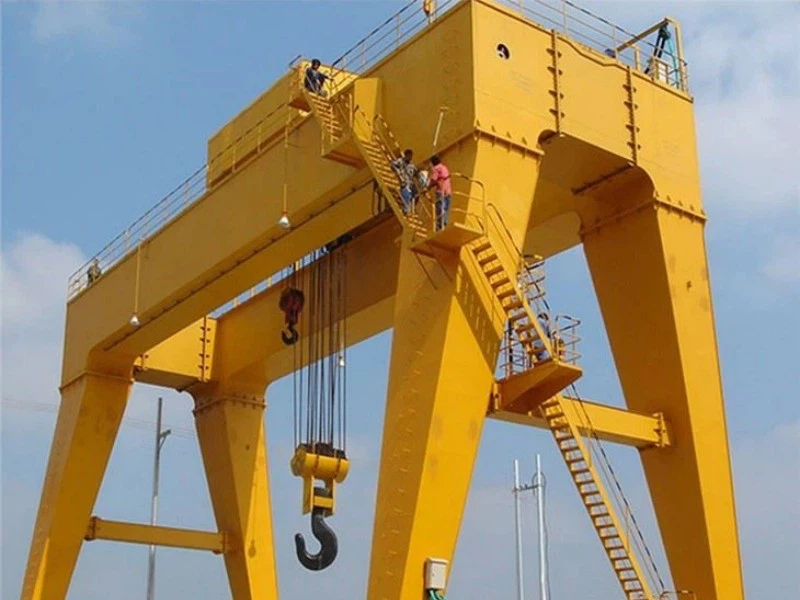

A Largest Gantry Crane is a type of gantry crane that has two parallel girders, or beams, that support the load. The load is lifted and moved between the two girders using hoists and other lifting mechanisms. Largest Gantry Cranes are commonly used in factories, warehouses, and other industrial settings for lifting heavy objects such as steel beams, heavy machinery and containers.

Warranty：1 Year

Weight (KG)：128000 kg

Work duty：A5~A7

Power Source：3-phase A.C. 50HZ 380v or as your demand

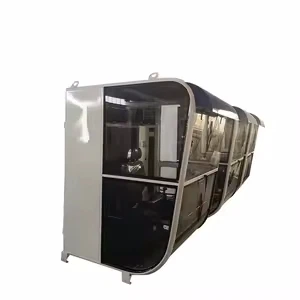

Control Method：Cabin control/Remote control

Effectiveness：high efficiency

Operating speed：High speed operation

Working temperature：-25 ~+40

Beam: The beam is the main structure of the crane, which supports the trolleys and other components. It is typically made of steel and has a high load-bearing capacity.

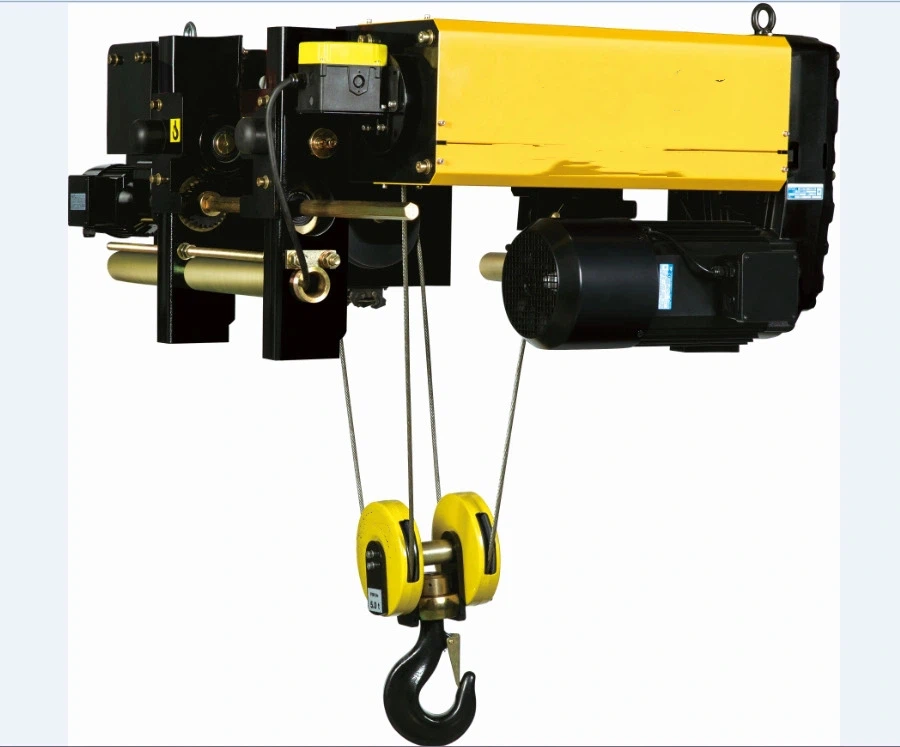

Lifting mechanism: including lifting drum, lifting rope, hook group and wire rope, used to lift and lower the load. The lifting mechanism is mounted on the girder and can be moved along the girder to accurately position the load.

Crane control system: The electrical system that controls all movements of the crane, including lifting and driving. It consists of controls, limit switches, emergency stop switches and other electrical components.

Hook: This is the component at the bottom of the crane to which the load is attached. It can be a simple hook for lifting with cables.

Power supply: Most gantries operate on electricity. Therefore, an electrical system with proper wiring and safety features is essential for operation.

Sketch：











Increased stability: With two parallel beams, the structure is more stable and can support heavier loads with less deflection than a single girder crane. This stability is very important when lifting very heavy objects or when precise positioning is required.

Improved rigidity. The double girder design increases rigidity and helps the crane maintain its shape even under heavy loads, reducing the risk of structural failure.

Higher Lifting Capacity: Largest Gantry Crane are designed to lift much heavier loads than single girder gantry cranes, making them ideal for industrial environments where large objects need to be moved.

Better lifting height. The rugged construction of these cranes often allows for high lifting heights, allowing operators to work in a variety of environments, including high ceilings and multi-story spaces.

Increased safety: The additional beam not only increases load stability but also provides a safer working environment as the load is distributed more evenly and the risk of instability during operation is reduced .

Lifespan has been extended. Due to their more robust design, double girder overhead cranes generally have a longer lifespan and require less maintenance than single girder overhead cranes.





Shipyards and ports. Marinas, docks and shipyards use Largest Gantry Crane to load and unload containers and cargo from ships. This is ideal for handling large quantities of goods quickly and efficiently.

Industrial Manufacturing: Manufacturing plants, such as steel mills, use Largest Gantry Crane to move heavy materials such as beams, sheets, and steel coils. The stability they provide is essential for precision-critical manufacturing processes.

Construction Sites: These cranes are commonly found on large construction sites where they lift and move precast concrete, steel structures, and other heavy building materials.

Warehouses and Distribution Centers: In warehouses and distribution centers, Largest Gantry Crane are used to move large pallets, heavy equipment, and other cargo that is too large or heavy for other types of lifting equipment.

Freight Yards: In freight yards and railway stations, these cranes can be used to load and unload freight and material wagons, including servicing railcars.

Power plants: Nuclear and conventional power plants use Largest Gantry Crane to install, maintain, and sometimes dismantle heavy components such as turbines, generators, and reactor components.











The company has installed an intelligent equipment management platform, and has installed 310 sets (sets) of handling and welding robots. After the completion of the plan, there will be more than 500 sets (sets), and the equipment networking rate will reach 95%. 32 welding lines have been put into use, 50 are planned to be installed, and the automation rate of the entire product line has reached.
