Rtg Rubber Tyred Gantry Cranes

rtg rubber tyred gantry cranes are a critical part of global logistics, offering flexibility, efficiency, and scalability. Their production involves high-precision engineering, robust material selection, and advanced automation integration to meet the demands of modern container handling.









• Gantry Frame: The main structural support, spanning container rows.
• Rubber Tires: Allow mobility without the need for rails.
• Lifting Mechanism: Includes a hoist, spreader, and trolley for container handling.
• Power System: Typically diesel-electric, hybrid, or fully electric (depending on environmental and operational requirements).
• Control System: Advanced automation and remote operation capabilities.







rtg rubber tyred gantry cranes are essential equipment in container terminals and ports for stacking and moving containers. Here are the key components of an RTG crane:

1. Structural Components
Main Gantry Frame: The primary steel structure that spans the container stacks and supports the hoisting mechanism.

Legs/Supports: Vertical columns that provide stability and allow the crane to straddle container rows.

Cross Beam: The horizontal beam connecting the legs, supporting the trolley and hoist system.

Cantilever (Optional): Some RTGs have an extending arm for handling containers outside the main span.

2. Mobility & Drive System
Rubber Tires: Heavy-duty, high-load tires enabling mobility on paved surfaces (typically 4, 8, or 16 tires).

Wheel Groups: Powered and non-powered wheels with steering mechanisms.

Drive Motors: Electric or diesel-hydraulic motors for movement along the yard.

Steering System: Allows 90-degree or diagonal movement for precise positioning.

3. Lifting & Handling System
Trolley: Moves along the cross beam to position the spreader over containers.

Hoist Mechanism: Includes wire ropes, drums, and motors for lifting/lowering containers.

Spreader: A twistlock-based attachment that locks onto containers (can be fixed or telescopic for different sizes).

4. Power Supply
Diesel Generator (Common): Provides power for electric motors in diesel-electric RTGs.

Electric RTGs (E-RTG): Use a cable reel or conductor bar system for grid power (more eco-friendly).

Hybrid RTGs: Combine diesel and battery power for energy efficiency.

5. Control & Automation
Operator Cabin: Located on the crane for manual control (with ergonomic controls and visibility).

Remote Control (Optional): Some RTGs can be operated remotely.

Automation Systems (A-RTG): GPS, laser sensors, and AI for semi/full automation.

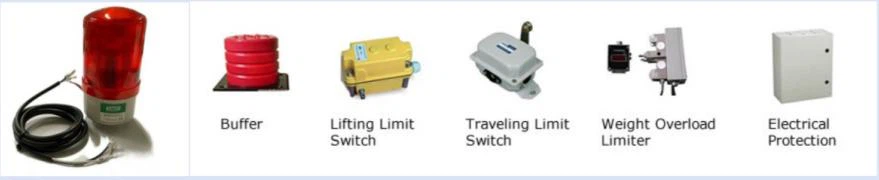

6. Safety & Auxiliary Systems
Anti-Collision System: Prevents collisions with other cranes or obstacles.

Load Limiters: Prevent overloading.

Wind Sensors & Brakes: Ensure stability in high winds.

Tire Pressure Monitoring: Maintains optimal tire performance.

Lighting & Alarms: For visibility and warning signals.

7. Chassis & Undercarriage
Slewing Ring (if applicable): Allows limited rotation for some models.

Suspension System: Absorbs shocks during movement.

rtg rubber tyred gantry cranes are designed for flexibility, high stacking (up to 6 containers high), and efficient yard operations. Modern versions increasingly feature automation and electrification for sustainability.







rtg rubber tyred gantry cranes are widely used in container terminals and intermodal yards for stacking and handling containers. Here are their key advantages:

1. Mobility & Flexibility
Rubber tires allow easy movement between stacking areas without fixed rails.

Can be relocated to different yard blocks as needed, optimizing space utilization.

2. High Productivity
Faster container handling compared to rail-mounted gantry (RMG) cranes due to mobility.

Can serve multiple rows of containers, reducing truck waiting times.

3. Cost-Effective
Lower infrastructure costs than RMGs (no need for rails).

Reduced labor costs as one RTG can cover a large stacking area.

4. Adaptability to Different Layouts
Suitable for small to medium-sized terminals with irregular layouts.

Can work in both high-density stacking and wider-spread yards.

5. Hybrid & Eco-Friendly Options
Modern RTGs often feature hybrid power systems (diesel + electric/battery), reducing emissions and fuel costs.

Some models use fully electric operation with cable reel or battery power.

6. Easy Maintenance
Simpler structure than RMGs, with fewer track alignment issues.

Maintenance can often be done on-site without disrupting operations.

7. Scalability
Additional RTG units can be deployed as terminal capacity grows.

Can handle various container sizes (20ft, 40ft, 45ft, etc.).

8. Better Ground Pressure Distribution
Rubber tires distribute weight more evenly than rail systems, reducing ground stress.

Comparison with RMGs:
RTGs are better for flexible, changing layouts.

RMGs are more efficient for high-density, fixed terminals but require rail infrastructure.

Conclusion:
RTG cranes are ideal for terminals needing mobility, cost efficiency, and operational flexibility, especially where future expansion or layout changes are expected.







rtg rubber tyred gantry cranes: Applications and Uses

RTG cranes are versatile, mobile gantry cranes widely used in ports, terminals, and logistics hubs for efficient container handling. Their rubber tires allow for easy movement, making them ideal for various applications:

1. Port Container Terminals
Stacking Containers: RTGs are commonly used in container yards to stack and organize shipping containers (typically 1-over-5 or 1-over-6 high).

Loading/Unloading Trucks & Trailers: They transfer containers between yard stacks and trucks or chassis.

Intermodal Operations: Facilitate the movement of containers between ships, trucks, and trains.

2. Inland Container Depots (ICDs) & Rail Terminals
Used for transferring containers from trucks to rail wagons and vice versa.

Enable efficient stacking in limited-space depots.

3. Logistics & Distribution Centers
Handle containers and heavy cargo in large warehouses.

Support cross-docking operations for faster cargo transfers.

4. Manufacturing & Heavy Industries
Move large steel coils, machinery, and oversized cargo in industrial plants.

Used in shipyards for handling heavy components.

5. Temporary & Mobile Operations
Can be deployed in temporary storage yards or disaster relief logistics due to their mobility.

Advantages of RTG Cranes
Mobility: No need for fixed rails; can be repositioned as needed.

High Stacking Capacity: Optimizes yard space.

Fuel Flexibility: Diesel, electric (hybrid), or fully electric options.

Cost-Effective: Lower infrastructure costs compared to rail-mounted gantry (RMG) cranes.

Conclusion
rtg rubber tyred gantry cranes are essential in modern logistics, offering flexibility, efficiency, and cost savings in container and heavy cargo handling. Their applications span ports, rail terminals, logistics hubs, and industrial sites, making them a key asset in global supply chains.





The production procedure for rtg rubber tyred gantry cranes involves several key stages, from design and material procurement to assembly, testing, and delivery. Below is a step-by-step breakdown of the typical manufacturing process:



1. Design & Engineering
Conceptual Design: Customer requirements (lifting capacity, span, height, etc.) are analyzed.

Detailed Engineering: Structural, mechanical, and electrical designs are finalized using CAD/CAE software.

Simulation & Validation: Finite Element Analysis (FEA) ensures structural integrity and performance.

2. Material Procurement
Steel plates, beams, wheels, motors, electrical components, and hydraulic systems are sourced.

Quality checks (chemical composition, mechanical properties) are performed on raw materials.

3. Fabrication of Structural Components
Cutting & Machining: Steel plates and beams are cut (laser/plasma/waterjet) and shaped.

Welding & Assembly: Main girders, legs, and end carriages are welded (submerged arc welding for high strength).

Shot Blasting & Painting: Surfaces are cleaned, blasted, and coated with anti-corrosion paint.

4. Mechanical & Electrical Systems Installation
Drive System: Wheels, axles, and gearboxes are mounted.

Hoisting Mechanism: Wire ropes, drums, sheaves, and hooks are installed.

Electrical Systems: Motors, PLCs, sensors, and control panels are wired.

Hydraulics (if applicable): Stabilizers or steering systems are fitted.

5. Assembly of Major Components
The gantry structure is assembled, integrating legs, girders, and trolley beams.

The trolley (with hoist) is mounted on the girder.

Rubber tires and drive motors are installed on the portal legs.

6. Testing & Quality Control
Factory Acceptance Tests (FAT):

Load Testing: Static (1.25× rated load) and dynamic (1.1× rated load) tests.

Functional Tests: Movement (gantry, trolley, hoist), braking, and safety systems (limit switches, overload protection).

Electrical Checks: Insulation resistance, voltage stability.

Commissioning: On-site testing after delivery.

7. Disassembly & Transportation
The crane is dismantled for shipping (if required) and transported to the port/terminal.

8. On-Site Installation & Commissioning
Reassembly at the customer's site.

Final testing under real operating conditions.

9. Training & Handover
Operators and maintenance personnel are trained.

Documentation (manuals, certifications) is provided.
