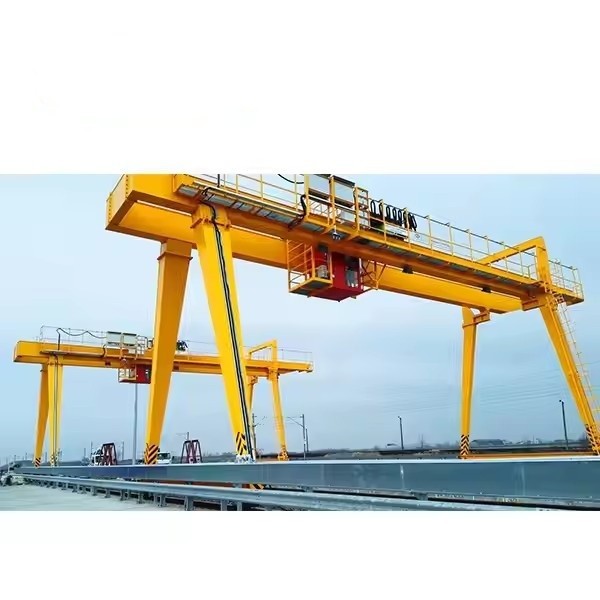

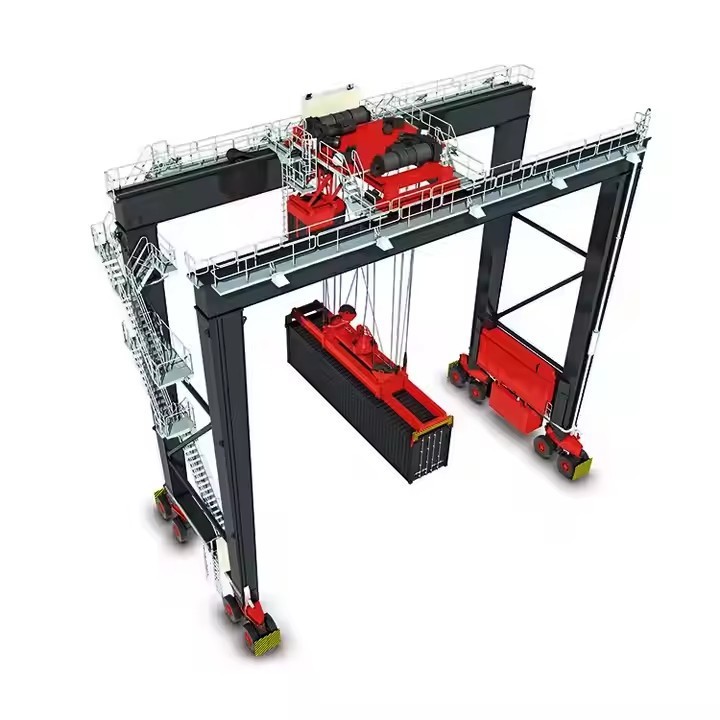

Mh Type Electric Hoist Gantry Crane



Key Features:

Load Capacity: Ranges from 0.5 tons to 20+ tons (customizable).

Span: Typically 5m to 30m, adjustable as needed.

Lifting Height: Usually 3m to 20m, depending on requirements.

Power Supply: 3-phase AC (380V/50Hz or other standards).

Control: Pendant control (wired or wireless) or cabin operation.

Mobility:

Fixed (stationary) or mobile (with locking casters).

Some models have rubber-tired wheels for outdoor use.



Types of MH Gantry Cranes:

Single Girder (MH-Electric Hoist Gantry):

Lighter duty, cost-effective.

Suitable for workshops and small-scale lifting.

Double Girder (Heavy-Duty):

Higher capacity (10+ tons).

Used in steel yards, shipping, and heavy industries.

Adjustable/Portable Gantry:

Lightweight, collapsible design for temporary use.



Comparison with Other Cranes

Feature	MH Gantry Crane	Overhead Crane	Jib Crane
Installation	No runway needed	Requires runway	Wall/floor-mounted
Mobility	Portable options	Fixed location	Limited movement
Cost	Lower investment	Higher cost	Moderate cost
Load Capacity	Up to 20+ tons	Up to 500+ tons	Up to 10 tons
Outdoor Use	Yes (rubber/rail)	Rarely	Limited



Warranty :1 Year

Weight (KG):35000 kg

Feature:Gantry Crane

Application:Railway Station/Sea Port/Yard/Subway

Rated Lifting Moment:Different

Material: Q235/Q345

Working Temperature:-40~40 ℃

Legs space:Bigger than normal

Control:Cabin control

Electrical parts:Schneider

Power Source:380~480V, 50hz/60hz

Power supply:M5~M8 (ISO)

Main electrical parts:Schneider Brand

Crane feature:High Efficiency

1. Main Structural Components

A. Gantry Frame

Cross Beam (Main Girder)

Supports the hoist and trolley.

Usually a single girder (for lighter loads) or double girder (for heavy-duty applications).

Made of box-type steel or truss structure for strength.

Legs (Support Columns)

Vertical structures that hold the cross beam.

Can be fixed height or adjustable (telescopic for flexibility).

End Carriages (Travel Units)

Wheel assemblies at the base of the legs.

Include wheels, bearings, and drive motors (if motorized).

Can run on rails or flat floors (rubber-tired for mobility).



B. Base Frame (Optional for Stability)

Some models have a bolted or welded base for extra stability.

May include outriggers for outdoor use.



2. Hoist & Trolley System

A. Electric Hoist

Lifting Motor – Powers the hoisting mechanism.

Wire Rope or Chain – Lifts the load (chain hoists for lighter loads, wire rope for heavier).

Hook Block – Attaches to the load (with safety latch).

Drum or Sprocket – Winds the rope/chain.

Brake System – Prevents accidental lowering.

B. Trolley (Hoist Carrier)

Moves the hoist along the cross beam.

Can be manual push or motor-driven (electric trolley).

Includes wheels, gearbox, and drive motor (if powered).

3. Travel Mechanism

Manual Travel – Operator pushes the crane (common in light-duty models).

Motorized Travel – Uses travel motors for movement (common in heavy-duty cranes).

Wheels & Tracks

Steel wheels for rail tracks.

Rubber-tired wheels for floor movement (no rails needed).

4. Electrical & Control System

Control Pendant (Remote) – Hanging control panel with buttons for:

Up/Down (hoist movement).

Left/Right (trolley movement).

Forward/Backward (crane travel).

Limit Switches – Prevent over-hoisting or over-travel.

Power Supply – Typically 380V/50Hz (3-phase) or other standards.

Cable Reel (Optional) – For power supply in long-span cranes.

.

5. Safety Components

Overload Limiter – Prevents lifting beyond capacity.

Emergency Stop Button – Instantly cuts power.

Anti-Collision Device (for multiple cranes).

Buffer & Bumper – Absorbs impact at travel limits.

Warning Light & Alarm – For hazardous operations.

6. Optional Accessories

Cabin (Operator Station) – For seated control in large cranes.

Radio Remote Control – Wireless operation.

Festoon System – Manages power cable for trolley movement.

Magnetic or Vacuum Lifter – For handling metal sheets/glass.

SKETCH

Main technical



The MH-type electric hoist gantry crane is widely used in industries due to its flexibility, cost-effectiveness, and ease of installation. Here are its key advantages:

1. No Need for Overhead Runway

Unlike bridge cranes, which require a fixed runway beam, gantry cranes are freestanding, making them ideal for workshops without permanent support structures.

2. Easy Installation & Portability

Can be quickly assembled without complex foundations.

Some models are adjustable in height & span, allowing relocation as needed.

Mobile gantry cranes (with wheels) can be moved manually or electrically.

3. Cost-Effective Solution

Lower initial cost compared to overhead cranes (no need for building modifications).

Minimal maintenance (simple mechanical structure).

4. Versatile Load Handling

Supports electric chain hoists (0.5–10 tons) or wire rope hoists (up to 20+ tons).

Can be customized with rotating trolleys, grabs, or magnets for special loads.

5. Suitable for Indoor & Outdoor Use

Rubber-tired models work on flat floors.

Rail-mounted models provide precise movement in harsh environments (e.g., shipyards).

6. Safe & Reliable Operation

Equipped with overload protection, limit switches, and emergency brakes.

Stable structure (wider legs prevent tipping).



This crane is used in various industries for lifting, moving, and positioning loads efficiently. Common applications include:

1. Warehousing & Logistics

Loading/unloading pallets, containers, and heavy packages.

Stacking goods in storage yards.

2. Manufacturing & Workshops

Handling machinery parts, molds, and assembly lines.

Moving steel beams, pipes, and raw materials.

3. Construction & Infrastructure

Lifting precast concrete panels, rebars, and construction materials.

Assisting in bridge and road construction.

4. Shipbuilding & Ports

Moving ship components, engines, and containers.

Used in dry docks and repair yards.

5. Railway & Automotive

Lifting locomotives, rail tracks, and vehicle parts.

Used in repair garages and maintenance shops.

6. Power Plants & Heavy Industries

Handling turbines, generators, and heavy equipment.

Used in steel mills and foundries.





1. Design and Planning

Demand Analysis: According to customer needs and usage scenarios, a detailed demand analysis is carried out to determine the specifications, load, span, lifting height, etc. of the crane.

Engineering Design: Engineers use CAD and other design software to carry out detailed design, including structural, mechanical, electrical and other aspects to ensure that the design meets relevant standards and specifications.

2. Material Procurement

Material Selection: Select appropriate steel, motors, control systems and other components according to design requirements.

Supplier Screening: Screen suppliers of materials and components to ensure the quality and reliability of materials.

3. Processing and Manufacturing

Cutting and Forming: Cut, weld, bend and other processes on steel to form main beams, end beams and other structural components.

Machining: Precision machining of key components, such as turning, milling, drilling, etc., to ensure that the size and accuracy meet the design requirements.

Surface Treatment: Spray, galvanize or rust-proof metal parts to enhance corrosion resistance and aesthetics.

4. Assembly

Component Assembly: Assemble the main beam, end beam, trolley, lifting mechanism and other components to form a complete crane structure.

Installation of electrical system: Install electrical equipment such as motors, control cabinets, sensors, limit switches, etc. to ensure the normal operation of the electrical system.

5. Debugging and testing

Preliminary debugging: Carry out preliminary debugging of the crane to check the coordination and operation of each component.

Load test: Carry out load test to ensure the safety and stability of the crane under rated load, and test the functions of safety devices such as overload protection and limit switches.

Performance test: Test the performance indicators of the crane such as lifting speed, running speed, braking effect, etc. to ensure that they meet the design requirements.

6. Quality inspection

Quality inspection: Carry out a comprehensive quality inspection of the crane, including appearance, size, performance, etc., to ensure compliance with relevant standards.

Safety assessment: Carry out safety assessment to ensure the normal operation of all safety devices and systems.

7. Delivery and installation

Packaging and transportation: Pack qualified cranes and prepare them for transportation to the customer site.

On-site installation: Carry out on-site installation according to customer requirements, including basic production and equipment debugging.

Training and handover: Train operators to ensure that they master the operation methods and safety precautions of the equipment and complete the handover work.















Material Inspection

Quality Inspection: Strict quality inspection is carried out on the purchased raw materials to ensure that they meet the design requirements and national standards.

Material Storage: Qualified materials are stored according to classification to prevent corrosion or damage.

Cutting and Forming

Steel Cutting: Use plasma cutting, laser cutting or flame cutting and other technologies to cut the steel according to the size of the design drawing.

Forming Processing: Form the steel plate through bending, rolling, welding and other processes to manufacture the main beam, end beam and other structural parts.

Welding

Component Welding: The cut and formed steel parts are welded into the main structures such as the main beam, end beam and trolley. The welding process needs to be strictly controlled to ensure the structural strength and welding quality.

Weld Inspection: Use non-destructive testing technology (such as ultrasonic testing, radiographic testing) to inspect the welds to ensure that there are no cracks or other defects.

Machining

Precision Machining: Precision machining is performed on the key components of the crane, such as wheel sets, bearing seats, pulleys, etc., to ensure their dimensional accuracy and surface quality.

Assembly of the whole machine

General assembly: On the basis of pre-assembly, the overall assembly of the crane is carried out, including the final installation of the main beam, end beam, lifting mechanism, walking mechanism, etc.

Commissioning and testing

Under dynamic conditions, the operating performance of the crane is tested, including the testing of lifting, walking, steering and other functions. The overall size of the assembled bridge crane is checked to ensure that all dimensions meet the design requirements.

Spraying and anti-corrosion treatment

Surface treatment Rust removal: Rust removal on the surface of the crane, common methods include sandblasting, pickling, etc. Primer spraying: Spray anti-corrosion primer on the treated surface to prevent metal oxidation and corrosion. Topcoat spraying Color spraying: Spray topcoat according to customer requirements or industry standards to give the crane a protective and decorative effect. Marking: After spraying, mark the crane's identification information in accordance with the specifications, such as model, rated load, etc.

Factory and installation

Packaging and transportation

Packaging protection: Protectively package the key components of the crane to prevent damage during transportation. Transportation arrangement: According to the equipment size and transportation conditions, select a suitable transportation method to transport the crane to the customer's site.

Acceptance and delivery

Customer acceptance

On-site acceptance: The customer conducts on-site acceptance of the crane according to the contract requirements and technical specifications to check the performance and quality of the equipment.

Problem rectification: If any problems are found, the manufacturer needs to rectify them in time to ensure that the equipment fully meets the customer's requirements. Delivery and use Operation training: The manufacturer usually trains the customer's operators to ensure that they can operate the crane correctly and safely.
