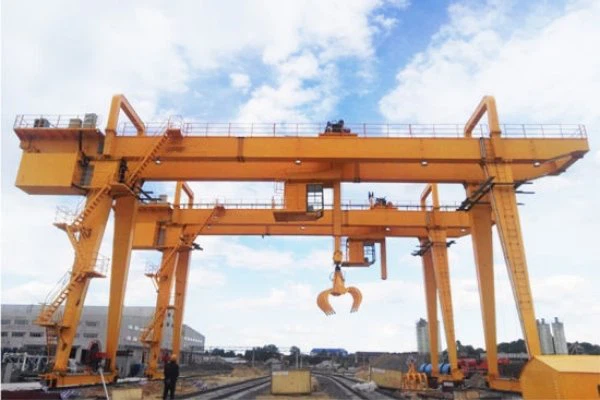

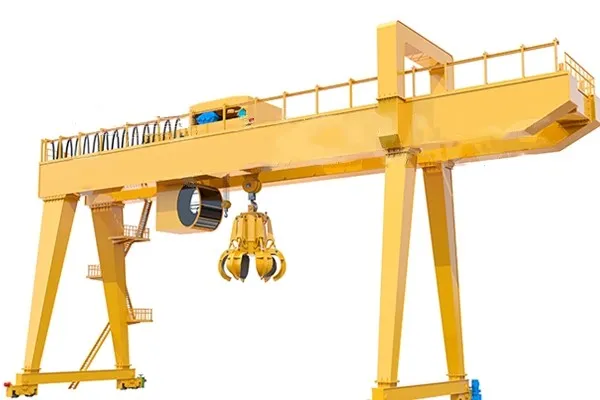

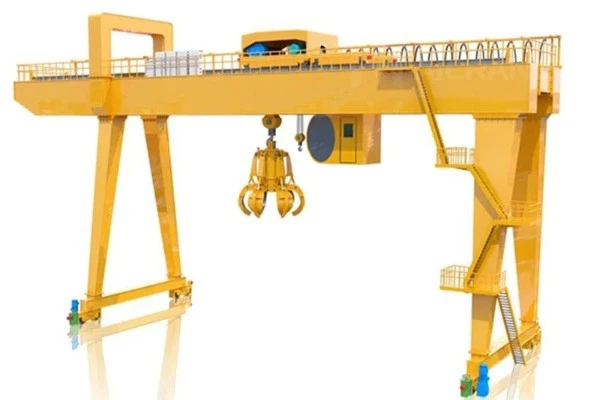

Double Beam Grab Gantry Crane

The Double Beam Grab Gantry Crane is a type of crane commonly used in industrial environments, especially in ports, shipyards and material handling yards. This type of Double Beam Grab Gantry Crane is designed to lift and move heavy objects using a grapple mechanism attached to the hoisting system.

Double Beam Grab Gantry Cranes feature two parallel beams, also called girders or rails, that run along the length of the structure. It usually runs on tracks or wheels on the ground and can be moved horizontally to position the crane above the desired load.

The grab mechanism is the main feature of this type of Double Beam Grab Gantry Crane, which is designed to grab bulk materials such as coal, ore, sand or gravel. This gripping mechanism enables efficient loading and unloading of materials from ships, trucks or storage areas. Double-girder gantry cranes are known for their large lifting capacity and sturdy structure, making them suitable for heavy-duty applications.

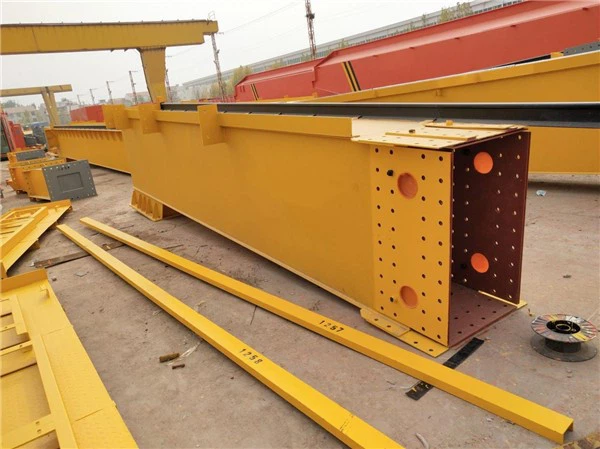

1. Girder/Beam: The main structural component of a crane, consisting of two parallel beams supported by gantry legs. These beams provide support and guide for the movement of the Double Beam Grab Gantry Crane.

2. End Beams: These are wheeled assemblies attached to each end of the girder that allow the Double Beam Grab Gantry Crane to travel along rails or ground rails.

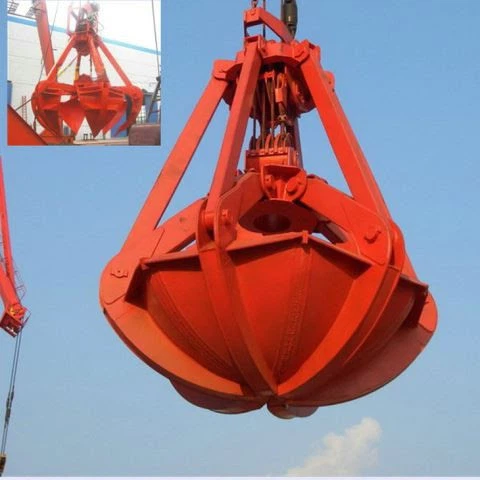

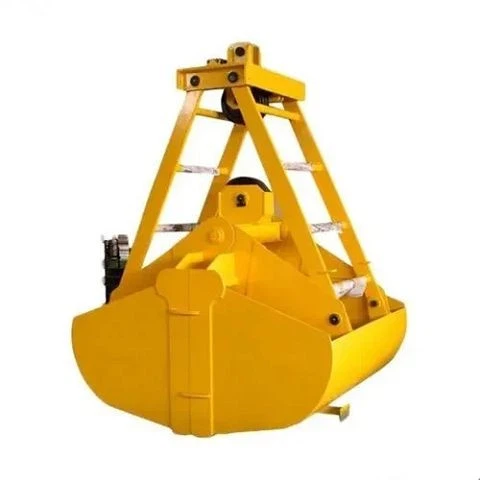

3. Grabber: This is the device connected to the lifting system and used to grab the load. It usually consists of multiple jaws or jaws operated hydraulically or mechanically.

4. Lifting System: A lifting system consists of a lifting mechanism, ropes or chains, and pulleys used to raise and lower the grapple mechanism and load.

5. Trolley: The trolley runs along the length of the crane bridge/beam and supports the hoisting mechanism so that it can move horizontally.

6. Electrical system: Controls the operation of the Double Beam Grab Gantry Crane, including lifting, lowering and moving along the track. It includes the control panel, electrical wiring and power components.

7. Safety features: Various safety components such as limit switches, overload protection, emergency stop buttons and warning devices ensure safe operation of the crane.

8. Optional Features:

1) Remote Control: Allows operators to control the Double Beam Grab Gantry Crane from a distance, improving safety and efficiency.

2) Anti-swing system: Reduces the swing of the load during lifting and moving, improving accuracy and safety.

3) Weatherproofing: Special coatings or materials used to protect cranes from harsh environmental conditions, especially in outdoor applications.

4) Automation: Integrate with automation systems to achieve autonomous operation and improve productivity.

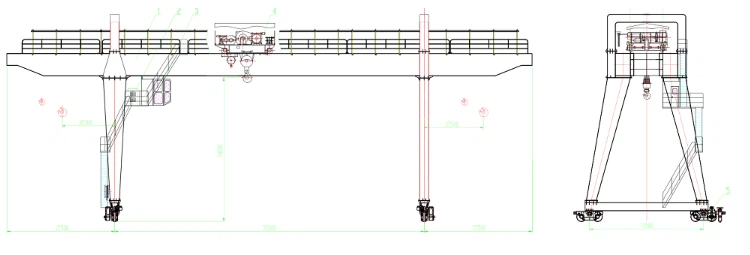

9. Sketch

1. High efficiency: Double-girder gantry grab cranes are known for their high efficiency in handling materials. The use of double beams provides better stability and load distribution, making operation smoother and more productive.
2. Heavy Lifting Capacity: Double Beam Grab Gantry Cranes are capable of lifting heavy loads and are therefore suitable for industries that require the handling of large and bulky materials.
3. Versatility: Double Beam Grab Gantry Cranes can be equipped with different types of grabs or attachments, making them suitable for handling a variety of materials such as bulk cargo, containers, scrap metal, etc.
4. Precise control: The advanced control system enables precise positioning and movement of the crane, allowing efficient material handling even in tight spaces.
5. Safety: Double-girder gantry grab cranes are designed with safety features such as overload protection, emergency stop buttons and anti-collision systems to ensure safe operation in industrial environments.

• Ports and Terminals: Double Beam Grab Gantry Cranes are commonly used for loading and unloading cargo ships in ports and terminals. They are ideal for handling bulk materials such as coal, grain, ore and containers.
• Steel Industry: In steel mills and metal recycling facilities, these cranes are used to move scrap metal, raw materials and finished products with precision and efficiency.
• Construction Sites: Double Beam Grab Gantry Cranes are used on construction sites for lifting and handling heavy materials such as concrete blocks, steel beams and precast structures.
• Warehousing and Logistics: These cranes are used in warehouses and distribution centers for efficient material handling and storage operations. They can be equipped with grabs or attachments suitable for handling pallets, containers and other cargo.
• Mining Operations: In mining operations, double girder grab gantry cranes are used to transport bulk materials such as coal, ores and minerals from one point to another within the mining area.
• Power plants: Power plants use these Double Beam Grab Gantry Cranes to move fuels such as coal or biomass and perform maintenance activities such as replacing turbine parts.
• Shipbuilding and Repair: Shipyards use double-girder grab gantry cranes to lift heavy components during shipbuilding and repair activities.

The company has installed an intelligent equipment management platform, and has installed 310 sets (sets) of handling and welding robots. After the completion of the plan, there will be more than 500 sets (sets), and the equipment networking rate will reach 95%. 32 welding lines have been put into use, 50 are planned to be installed, and the automation rate of the entire product line has reached.
