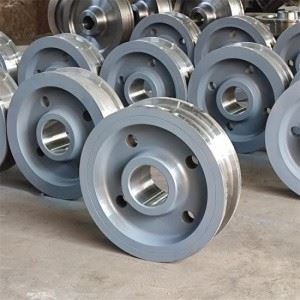

Gantry Crane Wheels

1.Function
1)Support the entire weight of the gantry crane, including its own structure and the lifted load.
2)Enable the crane to move horizontally along the runway rails or tracks.
3)Transmit the driving force from motors to facilitate smooth travel.
4)Withstand side thrusts, vertical loads, and impacts during crane operations.

2.Wheel Drive System
1)Driven Wheels (Active Wheels):
Connected to motors and gearboxes.
Provide the motion to the entire gantry crane.
2)Idle Wheels (Passive Wheels):
Roll freely, helping to balance the load and maintain stability.
In a typical gantry crane, at least two wheels are powered by motors, and the rest are idle.

3.Gantry crane wheels are essential load-bearing and mobility components used in gantry cranes for smooth and precise traveling along rail tracks. Designed to support heavy-duty operations, these wheels are manufactured with high-strength steel and advanced heat-treatment processes to ensure durability, load capacity, and long service life under demanding industrial conditions.
4.These wheels are suitable for a wide range of applications, including container handling cranes, shipyard gantry cranes, rail-mounted cranes, and factory floor gantries.

5.Key Features
High Load Capacity
Engineered to carry massive loads with minimal deformation, suitable for single-wheel loads up to 50 tons or more.
Heat-Treated Tread Surface
The wheel tread and flange undergo quenching and tempering for enhanced hardness (HRC 40–50), ensuring excellent wear resistance.
High-Quality Materials
Made from forged alloy steel such as 42CrMo, 50Mn, or Q345B, providing superior mechanical strength and fatigue resistance.
Precise Machining
Precision machining ensures a perfect fit, smooth rolling, and minimal rail wear.
Customizable Designs
Available in single-flange, double-flange, or flat tread types, and customizable to fit different rail profiles and operating conditions.

Material:

A) Carbon steel: A350LF2, A105, Q235, Q355D, A694F52, A516-GR65, EN10222, P280GH, P245GH, P250GH, JIS S25C, SS400, S20C, 16Mn, C22.8, Q345B/C/D, 1055, 1045, C50, C45, 10#, 20#, 35#, 45#, 40#, 50#, 55#, 60# and other carbon steel forgings.

B) Stainless steel: ASTM, A182, F304/304L, F316/316L, F316H, F310, F321, JB4728-2000, OCR18Ni10Ti, JB4728-2000, OCR17NI12Mo2, 2205, 2507, 2103, 904L, 254SMD, 304LN , 316LN, 1CR13, 2cr13, 3cr13, 4cr13, 321, 302, W1813N, W2014N, W2018N, W2020N, P550, Cr18Mn18N, 06Cr19Ni10(S30408), 022Cr19Ni10(S30403), 06Cr17Ni12Mo2(S31608), 022Cr17Ni 12Mo2(S31603), 06Cr25Ni20(S31008), 06Cr18Ni11Ti(S32168), 022Cr19Ni13Mo (S31703), 0Cr17Ni4Cu4Nb, 06Cr19Ni10N, 14Cr17Ni2, 13Cr13Mo, 06Cr13 and other stainless steel forgings.

C) Alloy steel: 40Cr, 15CrMo, 20CrMo, 25CrMo, 30CrMo, 35CrMo, 35CrMoV, 42CrMo, 20Cr2Ni4, 20CrNiMo, 40CrNiMo, 30Cr2Ni2Mo, 35CrMoV, 12Cr1MoV, 38CrMoAl, 18Cr2Nio4W, 40CrNi2Mo, 30CrMnSi, 25Cr2MoV, 17 Cr2Ni2Mo, 20MnMo, 20MnMoNb, 34CrNi3Mo, 20CrMnTi , 40CrMnMo, 30Cr2Ni2Mo, 34CrMo1, 20CrMnMo, 24CrMoV, 30Cr2MoV, 34CrNi1Mo, 17Cr2Ni2Mo, 34CrNi3MoV, 20CrMnTi, A182F1, F5, F9, F11, F22, 12Cr2Mo1, 10Cr9Mo1VNbN (F91), 10Cr9Mo W2VNbBN (F92), 12CrMoV, 4140, 4340, 4330 , 4130, 4150, 9CR2MO, 17NiCrMo6-4, 18CrNiMo7-6, 30CrNiMo8, 34CRNIMO, 34CrNiMo6, 36CrNiMo4, 34CrNi3Mo, 40CRNIMO, 40CrNiMoA, 50CrMo4, Q345D, 300M, 17-4PH, PH13-8Mo, 15-5PH, AerMet 100 and other alloys steel forgings.

• Diameter: Φ250, Φ350, Φ400, Φ500, Φ600, Φ700, Φ800, Φ 1000, Φ 1200 or as your requirement
• Technique: Casting or forging
• Quenching Depth: more than 25mm
• Heat Treatment: Quenching and tempering
• Work environment temperature: -25℃～+40℃, relative humidity ≤85%
• Reference Price Range: $80-1000/piece
• Rated Loading Capacity: 1~1200 ton

Sketch

1.High Load Capacity
Designed to support heavy-duty loads, making them suitable for cranes operating in ports, shipyards, and industrial sites.
Engineered with robust materials and precise machining to ensure safe load transfer to the rails.
2.Excellent Wear Resistance
Wheel treads and flanges are heat-treated (HRC 40–50) to resist abrasion and deformation.
Ensures longer service life even under continuous use and in abrasive environments.
3.Superior Material Strength
Manufactured from forged alloy steel such as 42CrMo or 50Mn for high strength, toughness, and fatigue resistance.
Withstands dynamic loads and impacts during crane operations.
4.Smooth and Stable Operation
Precision-machined surfaces ensure low rolling resistance and quiet, stable movement along rails.
Minimizes vibration and shock for better safety and performance.
5.Customizable to Fit Any System
Available in single-flange, double-flange, or flat tread types to suit different rail systems.
Custom sizes, bore designs, and mounting options can be tailored to your crane specifications.
6.Reduced Rail and Component Wear
Optimized tread and flange design reduces wear on crane rails and wheel bearings.
Ensures lower maintenance costs and extends the lifespan of the entire crane system.
7.Long Service Life
Built for continuous duty in harsh environments such as outdoor yards, marine terminals, and manufacturing plants.
Low maintenance requirements and high reliability reduce downtime.
8.Compatibility with Drive Systems
Easily integrates with motorized drive mechanisms and gearboxes, supporting both driven and idle wheel configurations.

1.Port and Container Terminals
Rubber Tyred Gantry Cranes (RTG)
Rail Mounted Gantry Cranes (RMG)
Used for container stacking and transfer operations. Gantry wheels ensure smooth and stable movement across long distances under heavy loads.
2.Shipyards and Marine Industry
Large-scale Goliath cranes or shipbuilding gantries rely on ultra-strong wheels to transport ship sections, modules, and steel plates.
3.Industrial Manufacturing Plants
Used in factories for transporting heavy equipment, molds, machinery, and raw materials between workstations.
4.Steel Mills and Foundries
High-temperature and heavy-duty environments require heat-resistant and wear-resistant crane wheels for safe operation on overhead gantries.
5.Construction Sites
Temporary or mobile gantry cranes equipped with robust wheels for lifting and moving heavy components like concrete beams or steel structures.
6.Rail Yards and Logistics Hubs
Gantry cranes are used for lifting cargo and materials from train cars. Durable wheels ensure reliability under constant load cycles.
7.Power Stations and Hydroelectric Dams
Gantry cranes with specialized wheels are used for turbine installation, maintenance of gates, and other heavy lifting tasks.
8.Mining and Quarrying Operations
Used in harsh outdoor environments with uneven terrain and dusty conditions. Wheels are often custom-built to withstand tough use.

The forged wheel production procedure typically involves the following steps:

1. Design: The wheel design is determined based on customer requirements, vehicle specifications, and engineering considerations.

2. Material selection: The wheel is usually made of high-quality aluminum alloy, which is chosen for its strength and durability.

3. Forging: The forging process involves heating the aluminum alloy to a precise temperature and then using a high-pressure press to shape the material into the desired wheel form. This process creates a dense grain structure that enhances the wheel's strength and reliability.

4. Machining: The forged wheel is then machined on a CNC lathe or milling machine to create the final shape and dimensions. This step ensures that the wheel is precise and free of imperfections.

5. Heat treatment: The wheel is then heat-treated to further enhance its mechanical properties and durability.

6. Surface finishing: The wheel is typically polished, painted, or powder-coated to enhance its appearance and protect it from corrosion or wear.

7. Quality control: The wheel is thoroughly inspected for any defects or irregularities, and rigorous testing is conducted to ensure that it meets all necessary quality standards and specifications.

8. Packaging and shipment: Once the wheel has been fully inspected, it is carefully packaged and shipped to the customer or distributor.
