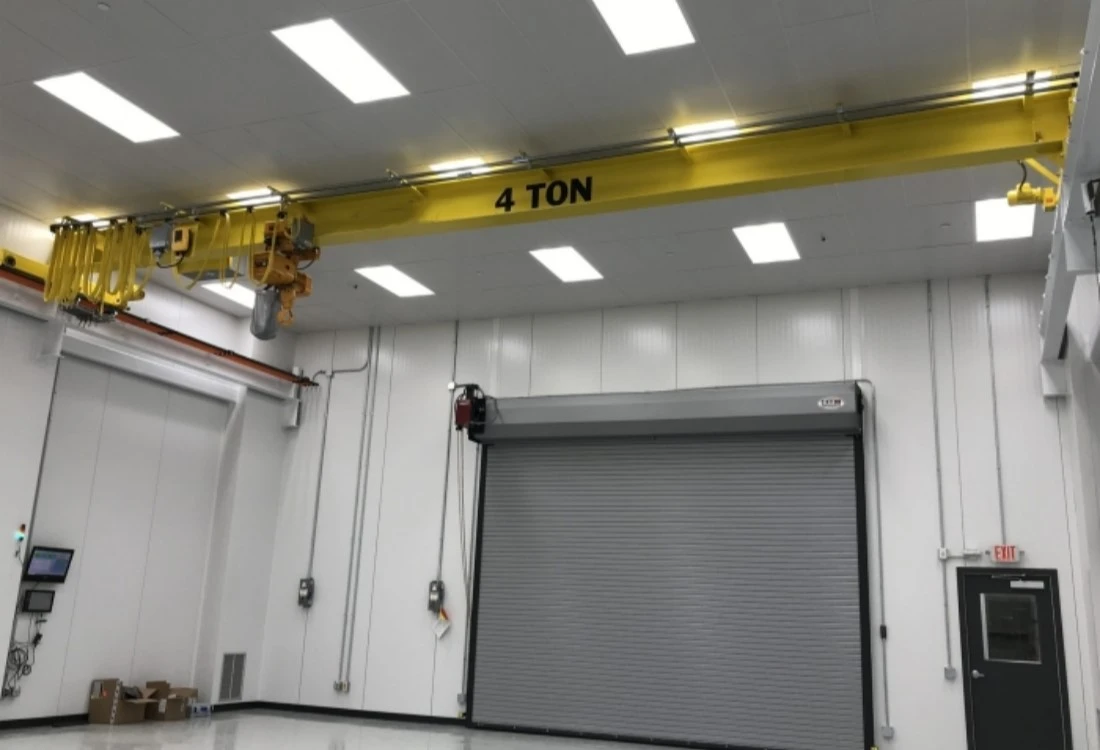

Single Girder Garage Overhead Crane

A single girder garage overhead crane is a type of crane commonly used in auto repair shops, warehouses, and factories to lift and move heavy objects in limited spaces.

Single girder garage overhead cranes are typically designed as a single girder supported by end trucks or runways on both sides. The structure of the beams is made of high-quality steel to ensure strength, durability and operational safety. Cranes typically use electric hoists or chain blocks to lift and lower loads.

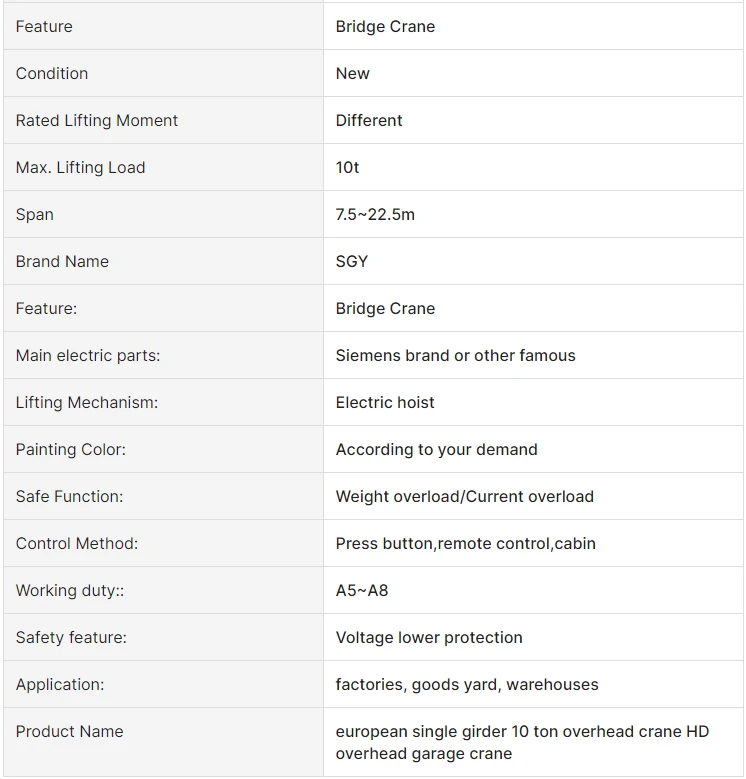

Capacity: 1-12.5ton

Span length:7.5-22.5m

Lifting height:customized according to clients' site conditions

Work duty: A5-A8

Raged voltage: 220V~690V, 50-60Hz, 3ph AC

Protection class:IP55

Crane control mode: Pendant/remote control









The components of a single girder garage overhead crane typically include:

1. Girder: The main horizontal beam supporting the lift and trolley. Typically made from high-strength steel and span the width of the workspace.

2. Hoist: The lifting mechanism is responsible for lifting and lowering the load. It consists of a motor, a drum or sprocket, a wire rope or chain, and a hook or lifting attachment. Usually an electric hoist or chain block is used.

3. Trolley: The trolley moves horizontally along the girder and carries the lift. The trolley is equipped with wheels or drives to move smoothly on the bridge.

4. Control panel: The control panel is used to control the operation of the crane. It can include buttons, switches, and other control mechanisms. The control panel can be installed on the crane or operated remotely via remote control or wireless remote control.

5. Electrical system: The electrical system powers the crane and controls its various movements and functions. It includes components such as motors, cables, connectors, relays and safety devices.

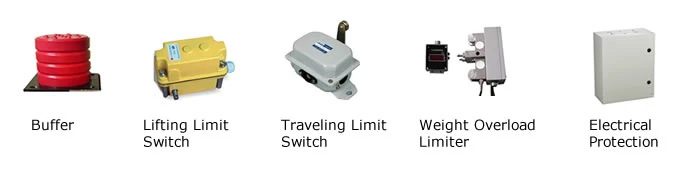

6. Safety features: Single girder garage overhead cranes are equipped with various safety devices to ensure safe operation. These include limit switches to prevent over travel, overload protection devices, emergency stop buttons and sirens.

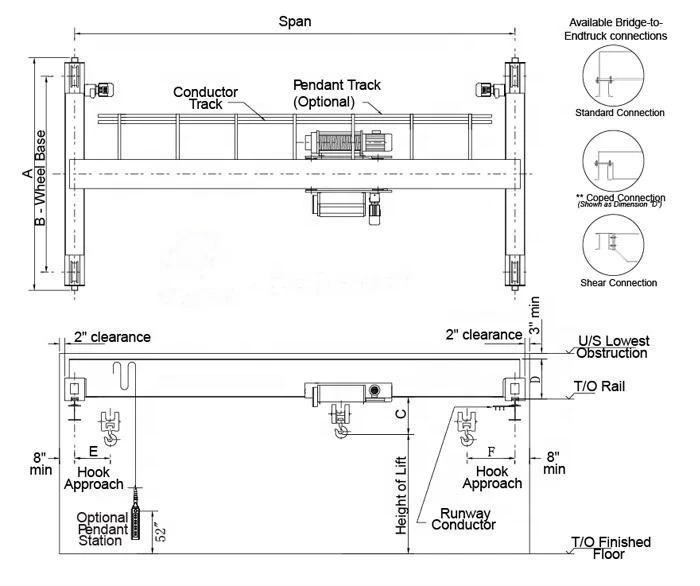

7. Sketch









1. Cost-effective: Single-girder cranes are generally more affordable than double-girder cranes and are a cost-effective solution for light to medium-duty lifting applications.

2. Compact design: Single-girder cranes are designed to be more compact and suitable for facilities with limited headroom or space constraints.

3. Easy to install: Due to their simple design and light weight, single-girder cranes are easier to install than double-girder cranes and require less structural support.

4. Ease of maintenance: Single girder cranes have fewer components and moving parts, making maintenance and repairs simpler and more cost-effective.

5. Versatility: Single girder cranes can be customized to meet a variety of lifting needs, with a choice of different hoist configurations, speeds and lifting capacities.

6. Efficient operation: Single girder cranes can lift and move loads smoothly and accurately, improving operational efficiency and productivity in the workplace.

7. Safety performance: Single girder cranes are equipped with various safety features, including overload protection, emergency stop buttons and limit switches, to ensure safe operation.

8. Energy Saving: The design of single-girder cranes minimizes energy consumption, helping to reduce operating costs and environmental impact.

In summary, single-girder garage overhead cranes are a popular choice across many industries due to their cost-effectiveness, versatility, and efficient operation.





Single girder garage overhead cranes have a wide range of applications in various industries. Some common applications include:

• Automotive Industry: Single girder cranes are used to lift and transport heavy automotive components such as engines, chassis and body panels within manufacturing plants and assembly lines.
• Warehousing and Logistics: Single girder cranes are used to efficiently load and unload goods, stack pallets and organize inventory in warehouses and distribution centers.
• Construction Sites: These cranes are used to lift and move construction materials, equipment and precast elements on construction sites, assisting in the construction process and increasing productivity.
• Manufacturing: Single girder cranes are commonly used in manufacturing facilities to lift and position components during production, ensuring smooth workflow and efficient material handling.
• Metal Fabrication and Fabrication: In metal fabrication and fabrication plants, single-girder cranes are used to lift and transport heavy metal sheets, coils, and other materials.
• Power Plants: Power plants use single girder cranes to perform maintenance and repair work, as well as assist in the installation and removal of heavy equipment and machinery.
• Aerospace Industry: These cranes play an important role in the aircraft assembly process, lifting and positioning large components, engines and fuselage sections during the manufacturing process.
• Maintenance and Repair Shops: Maintenance shops use single-girder cranes to lift and move heavy equipment, machinery and vehicles for maintenance, servicing and repairs.

These are just a few examples of the various applications of single-girder garage overhead cranes. The versatility, efficiency and cost-effectiveness of single-girder garage overhead cranes make them valuable assets in a variety of industries requiring heavy-duty lifting and material handling.
