Heavy Duty RMG Crane

What is a Heavy Duty RMG Crane?

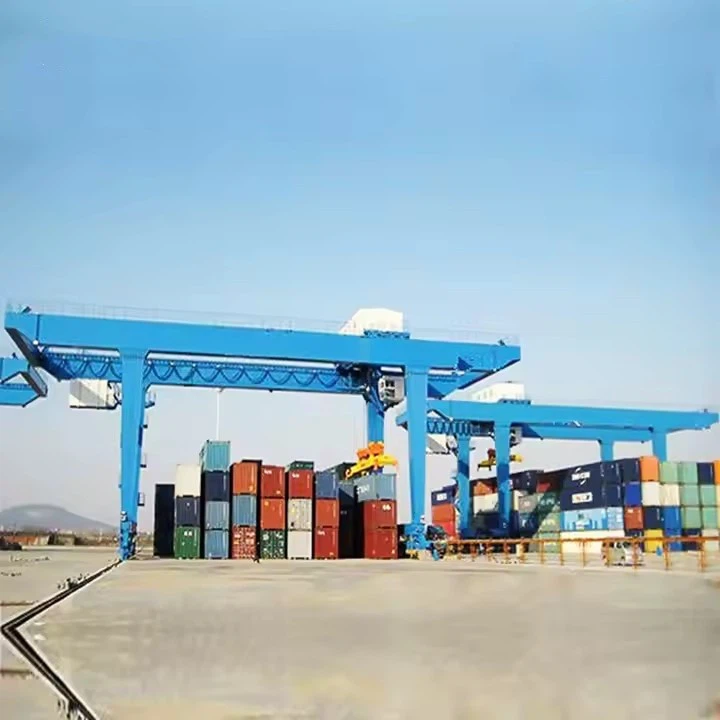

A Heavy Duty Rail-Mounted Gantry (RMG) Crane is a massive, rail-bound gantry crane designed for high-density stacking and handling of shipping containers in port terminals, intermodal yards, and large logistics hubs. The "Heavy Duty" designation and "Rail-Mounted" feature are its defining characteristics, meaning it is built for the most intensive, 24/7 operations and operates on a fixed set of tracks.

Think of it as an automated, high-rise warehouse system for containers, confined to a specific yard block but offering unparalleled stacking density, precision, and efficiency for high-volume terminals.



Advantages of Heavy Duty RMG Cranes

Unmatched Stacking Density: RMGs can stack containers 6-8 wide and 5-6 high, maximizing the utilization of valuable yard space.

Superior Precision and Stability: The rail-mounted system provides exceptional stability and allows for very precise container placement.

High Productivity & Efficiency: Capable of handling 20-40 moves per hour, making them ideal for high-volume terminal operations.

Reduced Labor Costs: Can be operated by a single person remotely, and full automation can further reduce staffing needs.

Energy Efficiency & Eco-Friendliness: Electrically powered, producing zero local emissions and lower noise compared to diesel-powered RTG cranes.

Enhanced Safety: The fixed path eliminates the risk of collision with other yard equipment, and automated systems reduce human error.



Comparison: Heavy Duty RMG vs. RTG

Feature	Heavy Duty RMG	Heavy Duty RTG
Mobility	Fixed to rails in one yard block.	Highly mobile, can drive between yard blocks.
Stacking Density	Very High (up to 8+ wide)	High (typically 6-7 wide)
Operational Cost	Lower (Electric power, less maintenance)	Higher (Diesel fuel, tire wear)
Precision & Stability	Superior	Good, but can be affected by ground conditions.
Automation	Easier and more reliable to automate	More complex to automate.
Ideal For	High-volume, fixed layout terminals.	Flexible yard layouts, lower initial volume.

Conclusion: The Heavy Duty RMG Crane is the pinnacle of efficiency and automation for high-density container storage. Its rail-mounted design is the key to achieving maximum density, precision, and productivity, making it the definitive choice for modern, high-throughput container terminals aiming for a smaller carbon footprint and fully automated operations.



Lifting Capacity 320 tons
Span (Width) 3 - 12 meters (adjustable)
Lifting Height 3 - 10 meters
Working Class A3-A5 (light to medium duty)
Hoisting Speed 0.5 - 8 m/min (variable)
Main Beam Type Single/double girder (box-type)
Power Supply 220V/380V 3-phase or manual
Control Mode Pendant control/wireless remote
Hoist Type Electric chain hoist/wire rope hoist
Travel Drive Manual push or motorized
Corrosion Protection Hot-dip galvanized or marine-grade paint
Wind Resistance Up to Beaufort scale 6 (for outdoor use)
Operating Temp -20°C to +50°C

Here is a detailed breakdown of the components of a Heavy Duty RMG Crane.



1. Primary Structural System (The Skeleton)

Portal Frame & Legs: The massive steel framework that forms the main structure straddling the container stacks. Typically consists of 4-8 legs depending on the span and capacity. Designed to withstand heavy dynamic loads.

Lifting Girder / Boom: The primary horizontal beam(s) that connect the legs and provide the track for the trolley to travel across the width of the container rows.

Runway & Rail System:

Running Rails: Heavy-duty steel rails (often crane rails) mounted on a reinforced concrete foundation.

Foundation: Deep concrete foundation that ensures the rails remain perfectly level and aligned under extreme dynamic loads.

Crane Rail & Trolley Path: Rails mounted on top of the lifting girder for the trolley to travel on.

2. Container Handling System (The Workhorse)

Spreader: The specialized container-lifting device.

Telescopic Mechanism: Adjusts length to handle 20ft, 40ft, and 45ft containers.

Twistlocks: Rotating conical locks that engage the container's corner castings.

Weighing System: Integrated load cells for weighing containers during handling.

Guidance Arms: Help position the spreader accurately over containers.



Hoist System:

Hoist Motors: High-torque electric motors for main and auxiliary lifting.

Wire Rope Drums: Large drums that spool the hoist wires.

Wire Ropes: High-strength steel cables for lifting containers.

Trolley Assembly:

Trolley Frame: Steel structure that carries the hoist machinery.

Trolley Wheels: Flanged wheels that run on the crane rail.

Rope Sheaves: Pulleys that guide the wire ropes from the hoist to the spreader.





3. Drive & Power Systems (The Muscles)

Long Travel Drives:

Drive Motors: Multiple synchronized motors (one per leg or more).

Gearboxes & Wheels: Large-diameter forged steel wheels with hardened treads.

Trolley Drives:

Drive Motors: Electric motors with precision control.

Gearboxes & Wheels: Smaller flanged wheels for cross-travel.

Hoist Drives:

Main Hoist Motor: Primary lifting motor.

Auxiliary Hoist Motor: For lighter loads or precise positioning.

Power Supply System:

Conductor Bars / Power Rail: Enclosed electrical conductors running parallel to the crane rails.

Collector Shoes: Contact shoes that slide along the conductor bars to deliver power.





4. Control & Safety Systems (The Brain & Nerves)

Operator Control Systems:

Operator's Cab: Climate-controlled cabin mounted on the trolley or gantry.

Remote Control Station: Often in a nearby control room with multiple camera views.

Automation & Sensing Systems:

Optical Character Recognition (OCR): Cameras that automatically read container numbers.

Laser Scanning Systems: For precise container positioning and stack measurement.

GPS & Encoder Systems: For exact crane and trolley positioning.

Safety & Protection Devices:

Anti-Collision Systems: Prevents collisions with other cranes and objects.

Container Stack Monitoring: Ensures safe stacking heights and stability.

Load Moment Indicator (LMI): Prevents overloads.

Anemometer: Measures wind speed and triggers alarms or shutdowns.

Anti-Sway System: Automatically reduces container swing.

Emergency Stop Systems: Multiple E-stop buttons throughout the crane.

5. Auxiliary Systems

Lighting: High-intensity lights for night operations.

Fire Protection: Fire detection and suppression systems.

Communication: Intercom and radio systems.

Monitoring & Diagnostics: Continuous monitoring of crane systems with remote diagnostics capability.

SKETCH



Main technical



Advantages of Heavy Duty RMG Cranes

Heavy Duty RMG Cranes offer transformative benefits for modern, high-volume container terminals, focusing on density, efficiency, and sustainability.



1. Unmatched Space Efficiency and Stacking Density

High-Density Storage: RMGs can stack containers in configurations like 7+1+7 (7 rows on one side, a rail lane, and 7 rows on the other) or even wider, maximizing the utilization of valuable yard space.

High Stacking: They can typically stack containers 5 to 6 high, significantly increasing storage capacity within a fixed area compared to other equipment.

2. Superior Operational Efficiency and Productivity

High Throughput: Capable of handling 20-40 container moves per hour, making them ideal for high-volume terminal operations.

Precision Handling: The rail-mounted system allows for extremely precise positioning of containers, reducing handling time and the risk of damage.

Weather Resilience: More stable and operable in higher wind conditions compared to rubber-tired alternatives.

3. Enhanced Safety and Reliability

Predictable Movement: The fixed rail system eliminates the risk of veering off course and reduces collisions with other yard equipment.

Integrated Safety Systems: Equipped with advanced anti-collision systems, container stack monitoring, and overload protection, creating a safer work environment.

Reduced Operator Error: Automation features minimize human error in container positioning and stacking.

4. Economic and Environmental Benefits

Lower Operating Costs: Electrically powered, leading to significantly lower energy costs compared to diesel-powered RTGs. Electricity is also cheaper and more stable than diesel fuel.

Reduced Maintenance: Rail travel causes less wear and tear on the crane than rubber tires on asphalt, leading to lower long-term maintenance costs.

Environmental Friendliness: Zero local emissions at the point of use, reducing the terminal's carbon footprint and improving local air quality. They also produce less noise pollution.

5. Advanced Automation and Operational Control

Full Automation Potential: RMGs are the preferred choice for automated terminals. They can be seamlessly integrated into Terminal Operating Systems (TOS) for unmanned operation.

Remote Operation: Operators can control multiple cranes from a central, ergonomic control room, improving working conditions and allowing for operation during adverse weather.

Smart Systems: Features like Optical Character Recognition (OCR) automatically identify containers, and automated positioning systems ensure perfect stacking every time.



1. Container Ports and Terminals (Primary Application)

Port Container Yards: This is the primary application. RMGs are used in the storage yard behind the quay (where ships dock).

Import Cycle: Receiving containers from quay cranes and stacking them in the yard, then retrieving them for pickup by trucks or trains.

Export Cycle: Receiving containers from trucks or trains, stacking them in the yard, and then delivering them to the quay cranes for loading onto ships.

Landside Operations: Efficiently transferring containers between different transport modes (ship-to-rail, ship-to-truck).

2. Intermodal Rail Yards

Rail Terminal Operations: Moving containers from stack to railcar and vice versa. Their precision is ideal for aligning containers perfectly with rail carriages.

Sorting and Marshaling: Organizing containers within the rail yard based on their destination.

3. Inland Container Depots (ICDs) and Logistics Hubs

Long-Term Storage: Providing high-density, cost-effective storage for containers away from the main port area.

Cargo Consolidation and Deconsolidation: Handling containers in facilities where goods are packed or unpacked from containers.



The production process for a Heavy Duty RMG Crane is a monumental undertaking that combines advanced engineering, heavy fabrication, precision assembly, and sophisticated integration of electrical and control systems. It is typically carried out by specialized heavy industry manufacturers.

Here is a detailed breakdown of the production process.



Stage 1: Design & Engineering

This is the foundational stage where the crane's performance and safety are defined.

Client & Terminal Specification Analysis: Reviewing requirements: stacking capacity (e.g., 1-over-5 or 1-over-6), span (e.g., 7+1 or 8+1), lifting capacity (typically 40-50 tons under spreader), and operational needs (automation level, remote control).

Advanced Engineering:

Structural Analysis (FEA): Using Finite Element Analysis to model the entire portal structure, legs, and boom under dynamic loads, including wind, seismic, and collision scenarios.

Mechanical Design: Designing the high-speed hoist machinery, trolley, and travel drives to meet the severe-duty specification.

Electrical & Control Design: Creating schematics for power supply, motor drives (VFDs), PLC networks, and the integration of all automation systems (OCR, GPS, laser scanners).

Bill of Materials (BOM) Creation: A comprehensive list of all raw materials and thousands of purchased components.



Stage 2: Material Procurement & Preparation

Procurement: Sourcing certified high-tensile steel plates and sections. Ordering specialized components from global suppliers: Siemens/ABB motors and drives, specialized hoists, R&M spreaders, etc.

Material Preparation: Steel plates are shot-blasted and primed. They are then cut to size using massive CNC plasma or flame cutting machines for precision.



Stage 3. Structural Fabrication & Assembly

This is where the crane's massive skeleton is built.

Panel and Sub-Assembly Fabrication:

Leg & Boom Sections: The legs and boom are fabricated as large box girders from steel plate. Internal stiffeners are welded in to prevent buckling.

Process: Components are fit in massive, custom jigs. Critical welds are performed using Automated Submerged Arc Welding (SAW) for deep penetration and high quality. All critical welds are inspected via Ultrasound (UT) or X-ray (RT).

Stress Relieving: The completed major sections (legs, boom segments) are heated in a computer-controlled furnace to relieve internal stresses from welding, preventing future distortion and ensuring dimensional stability.

Machining: Connection points, rail mounting surfaces, and drive mounting pads are machined to ensure perfect alignment and fit-up during final assembly.



Stage 4: Mechanical Assembly

The structural frame is integrated with the mechanical systems.

Mega-Blocks Assembly: Large sub-sections, like a full leg with its end truck and drive assembly, are pre-assembled.

Portal Frame Assembly: The main boom sections are joined to the legs to form the complete portal structure.

Drive Unit Installation: The long travel drive assemblies (motor, gearbox, wheel) are installed onto the end trucks. The trolley travel drives are installed on the trolley frame.

Hoist and Spreader Assembly: The high-speed hoist units are mounted onto the trolley. The spreader is assembled and tested separately.



Stage 5: Electrical & Control System Installation

The crane's "nervous system" is installed.

Cable Installation: Kilometers of power and control cables are laid in protective cable trays and conduits throughout the structure.

Panel Installation: Main switchboards, VFD drive cabinets, and PLC control panels are installed.

Sensor and Automation System Installation: GPS antennas, OCR cameras, laser scanners, and anti-collision sensors are mounted and wired.

Operator Interface Installation: The operator's cab is installed with all control consoles, or the remote control station is configured.



Stage 6: Pre-Delivery Testing & Inspection (FAT)

Before disassembly, the fully erected crane undergoes rigorous testing, often with the client present.

Visual & Dimensional Inspection: Verifying workmanship and all critical dimensions.

No-Load Test: Running all motions (hoist, trolley, gantry travel) without a load to check for smooth operation and abnormal noise.

Load Testing:

Static Load Test: Lifting a test load of 125% of the rated capacity and holding it to verify structural integrity and brake holding capacity.

Dynamic Load Test: Lifting 110% of the rated capacity and running it through all operational motions to ensure performance under real-world conditions.

Functionality & Safety Tests: Verifying all limit switches, E-stops, overload protection, and automated systems.



Stage 7: Dismantling, Painting & Shipment

Systematic Dismantling: The crane is carefully disassembled into transportable modules (leg sections, boom segments, trolley, spreader).

Final Painting: A high-performance, multi-coat paint system is applied for long-term corrosion protection in harsh saltwater environments.

Packaging & Shipment: Components are securely packaged and shipped via heavy-lift vessels to the client's port.



Stage 8: Site Erection & Commissioning (SAT)

Site Preparation: The manufacturer verifies the runway is complete, level, and correctly aligned.

Erection: Using large mobile cranes, the manufacturer's specialized crew reassembles the RMG on its permanent rails.

Final Connections & Testing: All systems are re-connected and subjected to a final Site Acceptance Test (SAT) to ensure perfect performance in the actual operating environment.

Operator Training: Comprehensive training is provided for the terminal's personnel.

Workshop view:

The company has installed an intelligent equipment management platform, and has installed 310 sets (sets) of handling and welding robots. After the completion of the plan, there will be more than 500 sets (sets), and the equipment networking rate will reach 95%. 32 welding lines have been put into use, 50 are planned to be installed, and the automation rate of the entire product line has reached 85%.
