Double Beam Gantry Crane Price Ship Unloader Crane

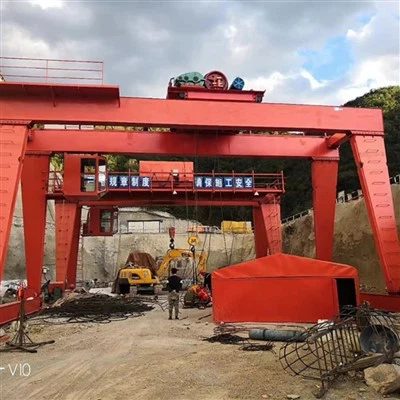

What Is a Double Beam Gantry Crane?

A double beam gantry crane is a type of heavy lifting crane where two parallel steel beams (girders) form the bridge that spans across a workspace. The hoist and trolley run along these two beams, giving enhanced strength, stability and lifting capacity compared with single-beam cranes. They are widely used for heavy materials, container handling, shipyards, storage yards, factories and ports. Kino Cranes+1

🛠️ Typical Components

Main beams (double girders) - support heavy loads

Trolley & hoist systems - for lifting and lowering

Traveling mechanisms - allow the crane to move longitudinally on rails

Control cabin or remote system - operator interface Voitto Crane

🔧 Why Double Beams?

Higher lifting capacities (often up to 500＋ tons)

Greater structural rigidity and reduced deflection

Safer & more reliable for heavy-duty operations Kino Cranes

Typical uses include shipyards, container terminals, bulk material handling yards, rail freight yards, and heavy manufacturing.

---

⚓ What Is a Ship Unloader Crane?

A ship unloader crane is specialized port equipment used to remove bulk cargo (like coal, grain, ore, minerals) from vessels and transfer it to shore systems such as conveyors or storage. It can take various forms-from bucket/grab types to continuous screw or belt systems-and may be integrated with cranes like gantry cranes or purpose-built unloaders. TAKRAF Group+1

Key Types

Grab-type ship unloaders

Use mechanical grabs to pick bulk materials from holds

Common for dry bulk terminals

Capacities often from 400 up to ~2,500 tons/hour TAKRAF Group

Continuous ship unloaders

Use screw conveyors, belt conveyors, or bucket elevators

Provide continuous flow unloading

Efficient for coal, minerals, grain and cement with less dust/contamination 中兴科技

Typical Functions

Reach into cargo hold and extract material

Transfer material to shore conveyors or storage

Adapt to different vessel sizes and cargo types TAKRAF Group

---

💰 Price Ranges: Gantry Cranes & Ship Unloaders

📍 Double Beam Gantry Crane Prices (General Industrial Use)

Prices vary widely based on specifications (capacity, span, height, custom features), but common reference ranges are:

Type / Capacity	Typical Price (USD)
5–20 ton double beam gantry crane	~$22,000–$50,000+ (small cranes) Voitto Crane
10–50 ton industrial double beam	~$44,000–$206,000+ AICRANE
100 ton class	~$80,000–$220,000+ (heavy duty) Henan Province Mine Crane Co.,Ltd
Higher capacity / customized models	$200,000+ depending on specs Henan Province Mine Crane Co.,Ltd

📌 Actual quotes depend on span, lifting height, environmental specs, controls (remote / cabin), automation, safety options and delivery location. AICRANE

📍 Ship Unloader Crane Prices

Grab-type bulk ship unloaders can start around ~$450,000+ for larger industrial units (example from Qingdao manufacturing sources). 圣威工业

⚠️ Heavy or continuous ship unloaders with conveyors are often priced significantly higher and typically supplied as part of a complete handling system, including conveyors and automation.

---

📊 What Influences Price?

Whether it's a double beam gantry crane or a ship unloader crane, prices are influenced by:

Lifting capacity & working load limits

Span width & lift height

Operation environment (indoor/outdoor, marine conditions)

Control systems (manual, remote, automated)

Safety & certification standards

Accessories (special hooks, grabs, conveyors, dust control)

Custom engineering specifications usually add to cost. AICRANE

---

🧠 Typical Applications

Double Beam Gantry Cranes

Container stacks and docks

Heavy manufacturing plants

Shipyards and fabrication yards

Yard loading/unloading bulk cargo

Ship Unloader Cranes

Bulk terminals for coal, grain, ore, minerals

Power plant and steel mill terminals

Integrated port stacking with conveying systems

In port logistics, both crane types often work together: gantry cranes handle containers & heavy units, while ship unloaders handle dry bulk cargo.



Rated Loading Capacity：5 ton, 10 TON, 100 ton, customized, 16/3.2 ton, 20/5 ton, 32/5 ton, 50/10 ton

Max. Lifting Height：40m, customized

Span：35m or clients' demands

Warranty：1 Year

Weight (KG)：20000 kg

Core Components：PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Control way：Cab, wireless remote control or customized







1.Main Girders (Double Beams)

Two parallel box-type steel girders

Bear the main load and support the trolley and hoist

Provide high rigidity and load stability

1.The main beam of an industrial gantry crane is a horizontal beam that spans the distance between two parallel tracks or rails. It is typically made of steel and serves as the primary structural component of the crane, providing support for the hoist mechanism, trolley, and load.



2.The main beam is designed to withstand the weight and forces generated by the crane's operations, including lifting, moving, and lowering heavy loads. It is also responsible for maintaining the stability and balance of the crane during operation.



3.The main beam can be either fixed or adjustable, depending on the specific needs of the application. Fixed beams are set at a specific height and cannot be adjusted, while adjustable beams can be raised or lowered to accommodate different load heights and clearance requirements.



4.Overall, the main beam is a critical component of an industrial gantry crane, providing the necessary strength and stability to handle heavy loads safely and efficiently.



.



Hoisting Mechanism

Includes electric hoist or winch, wire ropes, drum, motor, and brake

Responsible for lifting and lowering loads

Designed according to rated lifting capacity

The lifting system of an industrial gantry crane is responsible for raising, lowering, and transporting heavy loads. It typically consists of several components working together to provide a reliable and efficient hoisting mechanism.

The main components of the lifting system include:Hoist Motor: The hoist motor is the power source for the lifting system. It generates the torque required to lift and lower the load. The motor's capacity is determined by the crane's lifting capacity and duty cycle.

Hoist Drum(s) or Sheave Assembly: The hoist drum or sheave assembly is connected to the hoist motor through a reduction gearbox. As the motor turns, it rotates the drum or moves the sheaves, which in turn raises or lowers the wire ropes or chains.

3.In summary, the lifting system of an industrial gantry crane is a complex but essential component that enables the crane to perform its primary function: lifting and moving heavy loads safely and efficiently.





3.End Carriages (End Trucks)

Installed at both ends of the main girders

Equipped with wheels to travel along ground rails

Transfer load to the runway system

1.The end carriage of an industrial gantry crane is a critical component that connects the crane to the runway beam or rail on which it travels.

2.Here are the key features and functions of the end carriage:

Structure and Functionality

Rollers or Wheels: The end carriage typically has several rollers or wheels that ride along the top of the runway beam or rail. These are designed to minimize friction and allow for smooth movement of the crane.

Bearings and Axles: To support the weight and movement, the rollers or wheels are mounted on axles with bearings that ensure they can rotate freely without excessive wear.

Locking Mechanism: Some end carriages may include locking mechanisms that can secure the crane in a fixed position when not in use or during maintenance.

Adjustment Mechanisms: There may be adjustment mechanisms to fine-tune the alignment and ensure that the crane moves straight along the runway beam without deviation.

3.The end carriage is vital for the stable and reliable operation of the gantry crane. It ensures that the crane can move smoothly and efficiently along the runway beam, carrying out its hoisting and transporting functions with precision. Proper maintenance and inspection of the end carriage are crucial to prevent issues that could affect the crane's performance or lead to safety hazards.

4.Traveling Mechanism

Long-travel motors, reducers, wheels, and brakes

Enables crane movement along the gantry rails

Often synchronized for smooth operation

1.The crane traveling mechanism of an industrial gantry crane is responsible for moving the crane horizontally along its runway beams or rails. This mechanism allows the crane to transport loads over a larger area, making it extremely useful in warehouses, shipyards, and other industrial environments where heavy items need to be moved around a broad expanse.

2.Here are the key components and features of the crane traveling mechanism:

Components of the Traveling Mechanism

Drive Units (Traction Units): These are typically electric motors that provide the power to move the crane. The number of drive units can vary depending on the size and capacity of the crane; some cranes may have multiple motors for each side to distribute the load.

Gearboxes: Gearboxes are used to reduce the high speed of the motor to a lower speed suitable for the crane's travel. They also increase the torque output, which is necessary to move the crane and its load.

Wheels or Rollers: Large wheels or rollers are mounted on axles and are driven by the motor through the gearbox. These wheels or rollers ride along the top of the runway beams or rails and are crucial for stable movement.

3.The traveling mechanism is one of the most critical components of an industrial gantry crane, as it determines the crane's mobility and range of operation. Proper maintenance and regular inspections are crucial to ensure that the traveling mechanism operates smoothly and safely. Any issues with this mechanism can significantly impact the crane's performance and safety, making it vital to address any problems promptly.



5.Trolley travelling mechanism

1.The trolley traveling mechanism of an industrial gantry crane is responsible for moving the hoist or lifting mechanism horizontally along the crane's main beam or gantry. This allows the crane to position the load precisely in the transverse direction.

2.The trolley traveling mechanism consists of several key components:

Components of the Trolley Traveling Mechanism

Drive Unit: Typically an electric motor, the drive unit provides the power to move the trolley. The size and capacity of the motor depend on the crane's lifting capacity and the required speed of the trolley.

Gearbox: The gearbox reduces the high speed of the motor output to a lower speed suitable for the trolley's travel. It also increases the torque, which is necessary to move the hoist mechanism and any attached load.

Wheels or Rollers: The trolley rides on wheels or rollers that are mounted on axles. These wheels or rollers travel along the flanges or tracks on the main beam, allowing the trolley to move back and forth.

Brake System: A braking system is integrated into the trolley to control its movement and to hold it in position when needed. This can be a mechanical brake, an electromechanical brake, or a dynamic braking system.

3.The trolley traveling mechanism is crucial for precise positioning of the load in the transverse direction. It allows the crane to place loads accurately at different points along the length of the gantry. Proper maintenance and regular inspections are essential to ensure that the trolley mechanism operates smoothly and safely. Any issues with this mechanism can significantly impact the crane's operational efficiency and safety, making it vital to address any problems promptly.



6.Crane wheel

1.The crane wheel of an industrial gantry crane is a critical component that allows the crane to move along its runway beams or rails. These wheels are designed to support the weight of the crane, its load, and any additional dynamic forces generated during operation.

2.Here are the key features and functions of crane wheels:

Features of Crane Wheels

Material: Crane wheels are typically made from high-strength materials such as steel or cast iron to ensure they can withstand the heavy loads and stresses involved in lifting operations.

Size and Configuration: The size of the wheels varies depending on the capacity and design of the crane. They can be larger for heavier cranes to distribute the load more evenly. The number of wheels per axle and the number of axles per crane can also vary based on design requirements.

3.Crane wheels play a vital role in the mobility and stability of industrial gantry cranes. They are responsible for transferring the weight of the crane and its load to the runway beams or rails while allowing for smooth travel. The durability and efficiency of the crane's movement largely depend on the quality and condition of these wheels.

4.Proper maintenance of crane wheels, including regular inspections and timely replacement of worn components, is crucial for the safe and reliable operation of the crane. Neglecting wheel maintenance can lead to increased downtime, reduced efficiency, and potential safety hazards.



7.Crane Hook

1.The crane hook of an industrial gantry crane is a critical component that allows the crane to lift and move various loads. The hook is the point of contact between the crane's hoisting mechanism and the load, making it a crucial interface for safe and efficient operations.

2.Here are the key features and functions of crane hooks:

Features of Crane Hooks

Material: Crane hooks are typically made from high-strength steel or alloy steel to ensure they can withstand the heavy loads involved in lifting operations. The material is chosen for its durability and resistance to wear and tear

Design: The design of the hook includes an opening at the top where it attaches to the hoist rope, chain, or other lifting device. The bottom part of the hook has a curved shape that allows it to securely engage with lifting points on the load.

Safety Latch: Many hooks are equipped with a safety latch or locking mechanism to prevent the load from accidentally slipping off. This latch must be manually opened to release the load at the desired location.

Load Ratings: Each hook is rated for specific maximum loads, and it is essential to use hooks that are rated for the intended loads to ensure safety and compliance with regulations.



Motor

The motor of an industrial gantry crane is a critical component that provides the power necessary for lifting and moving loads. Motors in gantry cranes are typically electric and can be categorized into two main types based on their function: the hoisting motor and the travelling (or traversing) motor.

The hoisting motor is responsible for lifting and lowering the hook or grab that engages with the load. This motor's primary function is to control the vertical movement of the crane's loading mechanism.

Crane motors are the powerhouse of industrial gantry cranes, providing the energy required for both lifting and moving operations. The performance, reliability, and safety of the crane are heavily dependent on the motors' efficiency and durability. Proper selection, maintenance, and regular inspections of these motors are crucial for ensuring the crane operates smoothly and safely. Any issues with the motors can lead to operational inefficiencies, increased downtime, and potential safety risks, making prompt attention to motor problems essential.

.

Sound and light alarm system & limit switch

1.Industrial gantry cranes are equipped with a sound and light alarm system and limit switches to enhance safety and operational efficiency. These components play crucial roles in preventing accidents and ensuring that the crane operates within its designated parameters.

2.Sound and Light Alarm System

The sound and light alarm system is designed to alert personnel in the vicinity of the crane about its operational status. This system is particularly important in environments where the crane operates in close proximity to workers or where visibility is limited.

3.Limit Switches

Limit switches are electronic devices that serve as critical safety features on industrial gantry cranes. They detect the position of the crane or its components and cut off power when the crane reaches its operational limits, preventing potential accidents and damage.

4.Both the sound and light alarm system and limit switches are integral to the safe operation of industrial gantry cranes. The alarm system ensures that personnel are aware of the crane's movements and operational status, reducing the risk of collisions or other hazards. Limit switches, on the other hand, automate safety by physically preventing the crane from operating beyond its design limits. Together, these systems contribute to a safer workplace and protect both the crane equipment and the personnel working around it. Proper maintenance and regular testing of these systems are essential to ensure they function reliably and effectively.

10.Safety Devices

Overload Protection Devices

Overload protection devices are designed to prevent the crane from operating beyond its safe working load limits. These devices monitor the load being lifted and will either send an alert or shut down the crane if the load exceeds the specified limit. This is crucial for preventing structural damage to the crane and avoiding accidents that can occur due to overloading.

Limit Switches

As mentioned earlier, limit switches automatically stop the crane when it approaches the end of its travel range or when any of its components reach their operational limits. These switches are essential for preventing the crane from exceeding its physical boundaries, which could result in damage to the structure or collision with obstacles.

Anti-Collison Devices

Anti-collison devices are particularly important in environments where multiple cranes operate in close proximity or where there is significant ground traffic. These devices use sensors, cameras, or other technologies to detect the presence of other objects in the crane's path and either alert the operator or automatically halt the crane's movement to prevent a collision.

Emergency Stop Buttons

Emergency stop buttons are manually operated controls that allow the crane operator or any authorized personnel to immediately stop all crane operations in case of an emergency. These buttons are strategically placed within easy reach of the operator and are often red and highly visible.

Brake Systems

Brake systems on industrial gantry cranes are designed to hold the load securely in place when not in motion and to provide controlled stopping during operations. These brakes can be mechanical, electrical, or a combination of both, and they are critical for preventing unexpected load movements that could lead to accidents.

Levelness Indicators

Levelness indicators are used to ensure that the crane is level during operation, especially when lifting precise or delicate loads. Uneven lifting can cause loads to shift, potentially leading to loss of control and accidents. These indicators help operators maintain the crane's balance and stability.

Safe Working Load Indicators

Safe working load indicators clearly mark the maximum safe load capacity for the crane. This information is vital for operators to ensure that the crane is not overloaded and operates within its design specifications.



11.Control Mode

1.Manual Control

Direct Intervention: The crane operator directly controls the hoisting and traveling movements of the crane using handwheels, levers, or push buttons. This mode requires skilled operators who can manually synchronize the movements to achieve the desired positioning of the load.

Simple Mechanisms: Manual control systems are generally simpler in design and may be less prone to complex failures.

Limited Precision: The precision of the crane's movements is limited to the operator's skill and experience.

2.Semi-Automatic Control

Assisted Operation: The crane operator uses control devices such as joysticks or paddle switches to command the crane, but the system includes automated features that assist in controlling speed and synchronization.

Enhanced Safety: Semi-automatic systems often include safety features like automatic stops at load limits or travel limits.

Improved Efficiency: These systems can improve operational efficiency by reducing the need for highly skilled operators.

3.Fully Automatic Control

Programmable Logic Controller (PLC): The crane's operations are governed by a PLC, which can be programmed to perform specific sequences of operations automatically.

Precise Control: Fully automatic systems offer precise control over the crane's movements, allowing for complex maneuvers to be executed consistently.

Reduced Human Error: Automated systems reduce the potential for human error, enhancing safety and reliability.

Remote Operation: In some cases, fully automatic cranes can be operated remotely, removing the operator from potentially hazardous environments.

4.Radio Control

Wireless Operation: The crane operator uses radio transmitters to control the crane from a distance, which can be particularly useful in environments where visual contact with the crane is limited.

Increased Flexibility: Radio control allows operators to move freely around the work area while maintaining control of the crane.

Safety Considerations: Proper frequency management and security measures must be in place to prevent interference or unauthorized operation of the crane.

5.Computer Control

Advanced Systems: Some gantry cranes may employ computer systems that integrate advanced features such as machine vision, artificial intelligence, and data analysis to optimize operations.

Data Collection: Computer-controlled cranes can collect operational data, which can be used for maintenance planning and operational optimization.

Interface Options: Operators may interact with the crane through touch screens or other advanced interfaces, providing detailed feedback and control options.



12.Sketch









Advantages of Double Beam Gantry Crane

1. High Lifting Capacity

Double girders provide stronger load-bearing capability

Suitable for medium to ultra-heavy loads (20–500+ tons)

2. Excellent Structural Stability

Two main beams reduce deflection and vibration

Ensures safe and smooth lifting of heavy materials

3. Wide Working Span

Can cover large working areas without building support structures

Ideal for outdoor yards, shipyards, and storage areas

4. Flexible Operation

Supports cabin control, pendant control, and remote control

Allows precise positioning of loads

5. High Lifting Height

Hoist can be installed between girders, increasing effective lifting height

Suitable for tall cargo and stacking operations

6. Strong Durability

Designed for heavy-duty and continuous operation

Performs reliably in harsh outdoor environments

7. Customization Capability

Span, capacity, cantilever length, lifting height, and control systems can be customized

Can be equipped with hooks, grabs, magnets, or spreaders

---

⚓ Advantages of Ship Unloader Crane

1. High Unloading Efficiency

Rapid handling of bulk materials from ship holds

High throughput capacity (hundreds to thousands of tons per hour)

2. Reduced Labor Cost

Mechanized and automated unloading process

Minimizes manual handling and improves productivity

3. Wide Cargo Adaptability

Suitable for coal, grain, ore, fertilizer, cement, and minerals

Grab-type or continuous unloading options available

4. Improved Operational Safety

Stable structure with advanced control and monitoring systems

Reduces risks associated with manual unloading

5. Environmental Protection

Can be equipped with dust suppression and sealed conveyors

Reduces dust pollution during bulk material handling

6. Flexible Ship Compatibility

Adjustable boom and working radius

Suitable for different ship sizes and cargo hold depths

7. Long Service Life

Designed for marine and heavy-duty conditions

Corrosion-resistant materials and coatings ensure durability





Applications of Double Beam Gantry Crane

1. Ports & Harbors

Lifting and transferring heavy equipment

Handling containers, steel structures, and large cargo units

Supporting shipbuilding and repair operations

2. Shipyards

Assembly and movement of ship blocks and hull sections

Lifting engines, propellers, and marine components

Outdoor heavy-duty material handling

3. Bridge & Infrastructure Construction

Lifting precast concrete beams and bridge segments

Used in highway, railway, and metro construction projects

4. Steel & Metal Industries

Handling steel plates, coils, pipes, and structures

Suitable for harsh and continuous working environments

5. Precast Concrete Plants

Lifting and stacking precast slabs, columns, and panels

Improves production efficiency and safety

6. Power Plants & Heavy Manufacturing

Installation and maintenance of turbines, generators, and transformers

Handling oversized and heavy machinery

7. Logistics Yards & Warehouses

Loading and unloading large or heavy cargo

Outdoor storage and material transfer operations

---

⚓ Applications of Ship Unloader Crane

1. Bulk Cargo Ports

Unloading coal, iron ore, bauxite, and minerals

Common in large-scale bulk terminals

2. Power Plants

Unloading coal and biomass fuel from vessels

Feeding conveyor systems for power generation

3. Grain Terminals

Handling wheat, corn, soybeans, and other grains

Clean and efficient unloading with minimal material loss

4. Cement & Building Material Terminals

Unloading cement, clinker, limestone, and sand

Supports continuous material supply

5. Chemical & Fertilizer Ports

Handling bulk fertilizers and chemical raw materials

Optional sealed and dust-free unloading systems

6. Steel Mills

Unloading iron ore, coke, and flux materials

Ensures stable raw material supply for production

---

🔗 Integrated Port Applications

Ship unloader cranes unload bulk cargo from vessels

Double beam gantry cranes transport heavy equipment, containers, or auxiliary materials

Together, they increase port throughput, reduce vessel turnaround time, and improve operational efficiency





1. Design and Engineering

Detailed Engineering: Develop detailed engineering drawings and specifications, including the main beam, hoist, trolley, end carriages, and other components.

Simulation and Modeling: Use computer-aided design (CAD) and simulation tools to model the crane's performance and optimize its design.

2. Material Selection

Material Specifications: Select high-quality materials that meet the requirements for strength, durability, and heat resistance. Common materials include high-strength steel, alloys, and specialized coatings.

Procurement: Source materials from approved suppliers, ensuring they meet the necessary quality and certification standards.

3. Component Fabrication

Cutting and Shaping: Cut and shape raw materials into the required components, such as beams, columns, and brackets. This may involve processes like plasma cutting, laser cutting, and machining.Welding and Assembly: Weld components together to form the crane's structural elements. This includes welding the main beam, end carriages, and other load-bearing parts.

4. Assembly

Sub-Assembly: Assemble individual components, such as the hoisting system, trolley, and end carriages, into sub-assemblies. This involves fitting parts together and ensuring proper alignment.Main Assembly: Combine sub-assemblies to construct the complete crane structure. This includes mounting the hoist and trolley on the main beam, attaching the end carriages, and installing the control systems.

5. Integration of Systems

Electrical Systems: Install electrical components, including motors, control panels, wiring, and sensors. Ensure that the crane's electrical systems are properly integrated and tested.

Control Systems: Implement and configure control systems, such as programmable logic controllers (PLCs), remote controls, and safety devices. Verify that the control systems function correctly and are calibrated.

6. Testing and Quality Assurance

Pre-Operational Testing: Conduct pre-operational tests to check the crane's functionality, including load testing, operational testing of the lifting and traveling mechanisms, and control system checks.

Safety Testing: Verify that safety features, such as limit switches, alarms, and emergency stops, are working correctly and meet safety standards.

Inspection: Perform a detailed inspection of the crane's structure and components to ensure compliance with design specifications and quality standards.

7. Final Adjustments and Calibration

Fine-Tuning: Make any necessary adjustments to optimize the crane's performance and ensure smooth operation. This may include calibrating sensors, adjusting controls, and fine-tuning the lifting system.

Documentation: Prepare and review documentation, including operation manuals, maintenance guides, and safety instructions.

8. Delivery and Installation

Transport: Arrange for the transport of the crane to the installation site, ensuring that it is handled and shipped safely to prevent damage.

Installation: Oversee the installation of the crane at the customer's facility, including assembly, alignment, and connection to power sources and control systems.

Training: Provide training for operators and maintenance personnel to ensure they are familiar with the crane's operation and safety procedures.

9. Commissioning and Handover

Commissioning: Conduct final commissioning tests to verify that the crane operates correctly under real-world conditions and meets performance specifications.

Handover: Officially hand over the crane to the customer, providing all necessary documentation, including certificates of compliance, warranty information, and maintenance schedules.







Material Inspection

Quality Inspection: Strict quality inspection is carried out on the purchased raw materials to ensure that they meet the design requirements and national standards.

Material Storage: Qualified materials are stored according to classification to prevent corrosion or damage.

Cutting and Forming

Steel Cutting: Use plasma cutting, laser cutting or flame cutting and other technologies to cut the steel according to the size of the design drawing.

Forming Processing: Form the steel plate through bending, rolling, welding and other processes to manufacture the main beam, end beam and other structural parts.

Welding

Component Welding: The cut and formed steel parts are welded into the main structures such as the main beam, end beam and trolley. The welding process needs to be strictly controlled to ensure the structural strength and welding quality.

Weld Inspection: Use non-destructive testing technology (such as ultrasonic testing, radiographic testing) to inspect the welds to ensure that there are no cracks or other defects.

Machining

Precision Machining: Precision machining is performed on the key components of the crane, such as wheel sets, bearing seats, pulleys, etc., to ensure their dimensional accuracy and surface quality.

Assembly of the whole machine

General assembly: On the basis of pre-assembly, the overall assembly of the crane is carried out, including the final installation of the main beam, end beam, lifting mechanism, walking mechanism, etc.

Commissioning and testing

Under dynamic conditions, the operating performance of the crane is tested, including the testing of lifting, walking, steering and other functions. The overall size of the assembled bridge crane is checked to ensure that all dimensions meet the design requirements.

Spraying and anti-corrosion treatment

Surface treatment Rust removal: Rust removal on the surface of the crane, common methods include sandblasting, pickling, etc. Primer spraying: Spray anti-corrosion primer on the treated surface to prevent metal oxidation and corrosion. Topcoat spraying Color spraying: Spray topcoat according to customer requirements or industry standards to give the crane a protective and decorative effect. Marking: After spraying, mark the crane's identification information in accordance with the specifications, such as model, rated load, etc.

Factory and installation

Packaging and transportation

Packaging protection: Protectively package the key components of the crane to prevent damage during transportation. Transportation arrangement: According to the equipment size and transportation conditions, select a suitable transportation method to transport the crane to the customer's site.

Acceptance and delivery

Customer acceptance

On-site acceptance: The customer conducts on-site acceptance of the crane according to the contract requirements and technical specifications to check the performance and quality of the equipment.

Problem rectification: If any problems are found, the manufacturer needs to rectify them in time to ensure that the equipment fully meets the customer's requirements. Delivery and use Operation training: The manufacturer usually trains the customer's operators to ensure that they can operate the crane correctly and safely.

Hot Tags: double beam gantry crane price ship unloader crane, China double beam gantry crane price ship unloader crane manufacturers, suppliers, factory
