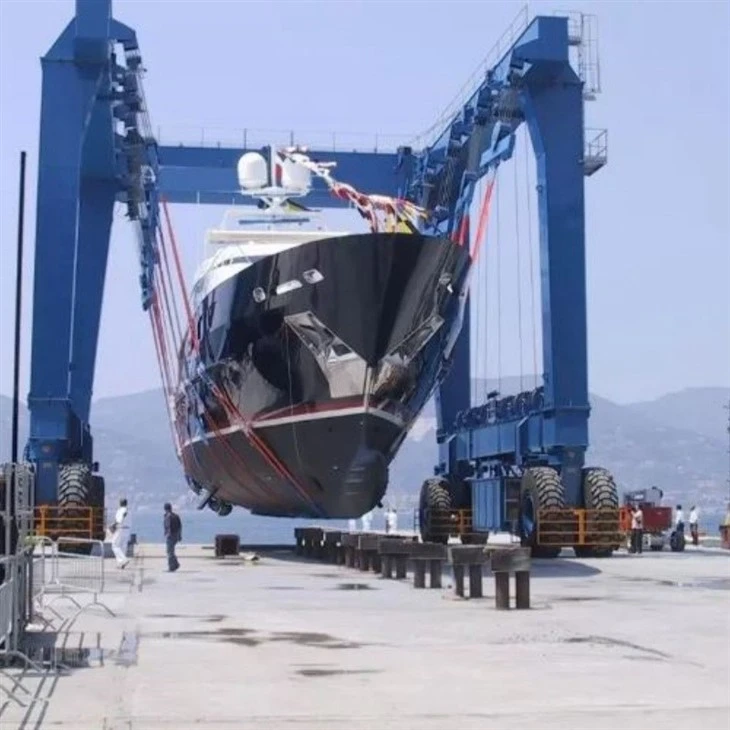

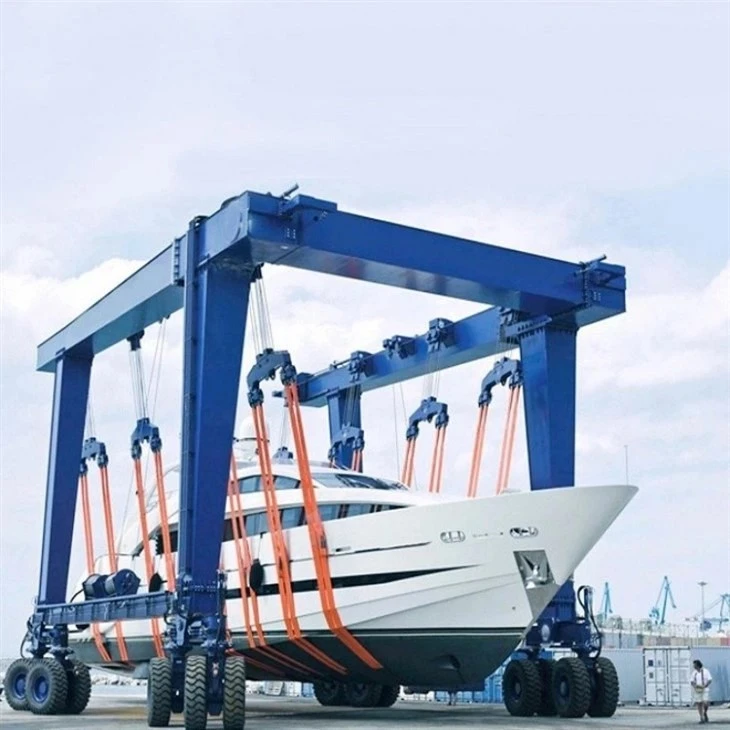

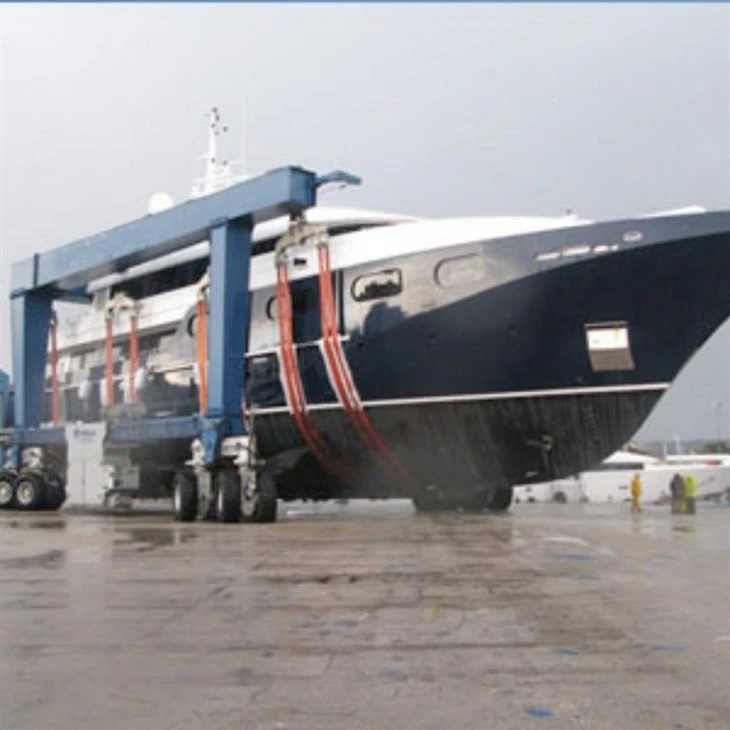

1200ton Boat Lift Gantry Crane

A 1200-ton Boat Lift Gantry Crane is a heavy-duty piece of equipment specifically designed for lifting, transporting, and launching large vessels such as yachts, ferries, and ships in shipyards or marinas.



🔧 Specifications (Typical for a 1200-ton Model)
Lifting Capacity: 1200 tons (1,200,000 kg)

Span: Usually ranges between 15 to 30 meters, depending on vessel width

Lifting Height: Often customizable, commonly between 6 to 15 meters

Wheel Configuration: Multi-wheel design (e.g. 48 or more wheels), often with all-wheel steering

Drive System: Hydraulic or electric motor drive

Power Source: Diesel, electric, or hybrid

Control System: Wireless remote + cabin operation

Hoisting System: Multiple hoists (usually 16 or more), synchronized for stability



Comparison with Other Marine Lifting Solutions

Feature	Small Boat Gantry Crane	Travel Lift	Forklift (Marine)
Mobility	Portable, some wheeled	Fixed or rail-mounted	Highly mobile
Capacity	1–20 tons	10–100+ tons	2–10 tons
Best For	Small boats, DIY yards	Large marinas	Lightweight boats
Cost	Lower	Higher	Moderate



Lifting Capacity 1 - 20 tons
Span (Width) 3 - 12 meters (adjustable)
Lifting Height 3 - 10 meters
Working Class A3-A5 (light to medium duty)
Hoisting Speed 0.5 - 8 m/min (variable)
Main Beam Type Single/double girder (box-type)
Power Supply 220V/380V 3-phase or manual
Control Mode Pendant control/wireless remote
Hoist Type Electric chain hoist/wire rope hoist
Travel Drive Manual push or motorized
Corrosion Protection Hot-dip galvanized or marine-grade paint
Wind Resistance Up to Beaufort scale 6 (for outdoor use)
Operating Temp -20°C to +50°C







A 1200-ton boat lift gantry crane is a massive and specialized piece of equipment typically used in shipyards, marinas, and ports for lifting and transporting large vessels out of the water for maintenance, repair, or storage. Below are the key components of such a heavy-duty gantry crane:

🔧 Main Components of a 1200-Ton Boat Lift Gantry Crane
1. Main Structure (Gantry Frame)
Vertical Legs (A-frames or U-frames): Supports the entire structure.

Cross Beam (Main Girder): Connects the two sides and bears the lifting load.

Materials: High-strength steel with corrosion-resistant coating.

2. Lifting Mechanism
Winches / Hoists: Heavy-duty winch systems, typically hydraulic or electric.

Slings / Belts / Spreaders: Wide slings distribute the load under the hull.

Hydraulic Cylinders (Optional): For vertical lifting adjustments or fine positioning.

3. Drive System
Wheel Assemblies: Typically 8 to 32 wheels or more (depending on capacity).

Steering Mechanism: Hydraulic or electric steering for maneuverability.

Power Source: Diesel engine, electric motor, or hybrid system.

4. Control System
Cabin Control or Remote Control: Operator station or wireless controls.

PLC System: Programmable logic controller for precise control and diagnostics.

Safety Interlocks and Limit Switches: For overload and positioning protection.

5. Power System
Hydraulic Power Pack: Drives winches, steering, and lifting.

Electric Panels: For controlling electrical systems and lighting.

6. Safety & Monitoring Systems
Load Sensors / Load Cells: To monitor the exact weight.

CCTV & Cameras: For enhanced visibility during operations.

Anti-Collision System & Alarms: To ensure safe operation.

7. Wheels & Tires
Heavy-Duty Pneumatic or Solid Tires: Designed for marine environments.

Four-wheel or Multi-wheel Steering: Enhances maneuverability.



B. Support Legs (End Carriages)

Here's a quick breakdown of what you're likely referring to:
🏗 1200-Ton Boat Lift Gantry Crane
Capacity: 1200 tons - very heavy-duty, used for lifting ships or large boats out of the water.

Structure: Consists of a large gantry frame, hydraulic or electric lifting mechanisms, and motorized end carriages for movement.

🔩 End Carriages
These are the driven wheels and supporting frame assemblies at each end of the gantry crane.

Function: Support the gantry structure and enable horizontal travel along rails or a concrete runway.

Key Features:

Heavy-duty wheels (often rubber-tired or steel-wheeled, depending on application).

Motorized drive systems.

Steering and braking systems (especially for mobile marine lifts).

Shock absorption and alignment systems for smooth travel.

🛠 Technical Considerations
For a 1200-ton capacity, the end carriages would need:

Multiple wheel bogies per side (typically 8–20 wheels per side depending on the weight distribution).

Synchronized motors with precise control systems.

Heavy-duty gearboxes and load-sensing hydraulic or electric drives.

Weather resistance and anti-corrosion treatment (marine environment).

Alignment systems (to reduce wear and maintain stability over uneven terrain or track misalignment).





C. Base Frame (Runway System)

🔧 Components of the Runway System
Gantry Crane Structure:

Capacity: 1200 tons

Configuration: Typically a U-frame or straddle-type gantry crane

Mobility: Equipped with wheels for movement along the runway

Runway System:

Track Rails: Heavy-duty steel rails installed on reinforced concrete paths

Ground Beams/Runway Beams: Embedded or surface-mounted beams that support the crane's wheels

Foundations: Deep concrete footings to bear the massive weight during lifting and moving

Drive and Steering System:

Electric or Hydraulic Motors for movement

Steering Mechanism for turning and alignment

Synchronisation System to ensure coordinated movement of all wheels

Control System:

Remote Control or Cabin Operation

Safety Features: Anti-collision, overload protection, emergency stops





2. Lifting & Hoisting Mechanism

1. Main Lifting System
Configuration: Multi-point lifting system, usually 4 to 16 lifting points, evenly distributed to balance the boat's weight.

Hoisting Winches: Heavy-duty electric or hydraulic winches control each lifting point, often synchronized via a central control system.

Ropes or Belts: Uses high-strength wire ropes or polyester lifting belts (soft slings) to cradle the hull, minimizing hull damage.

Load Sensors: Real-time feedback ensures balanced lifting and prevents overloads at individual points.



B.

Synchronization System
PLC Control System: Ensures all lifting points move simultaneously, avoiding hull stress.

Feedback Mechanisms: Load cells and position sensors continuously monitor tension and position.

Auto-Leveling: Automatically adjusts hoisting speeds to compensate for uneven loads or boat asymmetry.

C.

Drive & Power
Power Source: Usually electric (with cable reel system or battery-powered), or diesel-hydraulic for mobile types.

Hydraulic Cylinders (if applicable): Some designs use large hydraulic rams for vertical lift.



3.

Safety Features
Overload Protection: Automatically halts lifting if weight exceeds limit.

Emergency Stop System: Instant shutdown in case of anomaly.

Manual Override: For precise manual control in emergencies.

.



4. Optional Accessories

✅ Optional Accessories for 1200-ton Boat Lift Gantry Crane:
Remote Control System

Wireless or wired remote operation for better visibility and safety.

Enables control from a distance, improving maneuverability around large vessels.

Automatic Load Balancing System

Ensures equal weight distribution across all lifting points.

Minimizes stress on the crane structure and lifted vessel.

Custom Sling Sets / Adjustable Sling System

Different lengths and widths for various hull shapes and sizes.

Soft slings or specialized slings for delicate hulls (e.g., wooden or fiberglass boats).

Camera Monitoring System

Mounted cameras on the crane provide the operator with multiple viewing angles.

Assists with alignment and lifting in tight or low-visibility areas.

Load Weighing System

Real-time display of the load being lifted.

Helps avoid overloading and improves operational safety.

Hydraulic Steering or 360° Steering System

Enhanced maneuverability for narrow marinas or shipyards.

Allows lateral movement and tight turning radius.

Lighting Systems

LED floodlights for night or low-light operation.

Can be mounted on the crane frame or control cabin.

Cabin with HVAC

Enclosed operator cabin with heating, ventilation, and air conditioning.

Improves operator comfort and efficiency in extreme climates.

Automatic Lubrication System

Reduces maintenance effort.

Keeps moving parts like wheels and pulleys in optimal condition.

Anti-Corrosion Coating / Marine-Grade Paint

For operations in salty or humid environments.

Enhances crane longevity and reduces maintenance costs.

Self-Propelled Drive System (Diesel or Electric)

Choice between diesel-powered or electric motorized movement.

Hybrid systems are also available for eco-friendly operations.

Emergency Stop System & Safety Alarms

Audible and visual alarms for overloads or motion detection.

Emergency stop buttons for instant shutdown.

Tire Pressure Monitoring System

Ensures optimal ground contact and safety during operation.

GPS or Fleet Management Integration

Tracks crane usage, positioning, and maintenance schedules.

SKETCH



Main technical



A 1200-ton boat lift gantry crane is a massive piece of equipment used primarily in shipyards and marinas for lifting and transporting large vessels. Here are the key advantages of using a gantry crane of this capacity:

✅ 1. Heavy Load Capacity
Capable of lifting vessels up to 1200 tons, making it ideal for yachts, ships, and large commercial boats.

Reduces the need for multiple lifts or partial dismantling of the vessel.

✅ 2. Precise & Safe Lifting
Equipped with multiple hoisting points for balanced and controlled lifting.

Ensures the structural integrity of boats during handling.

✅ 3. Increased Efficiency
Speeds up boat transfer processes in shipyards, dry docks, or marinas.

Reduces downtime during maintenance or repair operations.

✅ 4. Flexible Movement
Travels on rubber tires or rails, allowing 360° maneuverability and navigation through narrow areas.

Some models have independent wheel steering for precise positioning.

✅ 5. Customizable Design
Can be tailored to accommodate different hull shapes and sizes.

Adjustable height and width options for specific operational needs.

✅ 6. Reduced Labor & Cost
Minimizes the manpower needed for lifting and transporting heavy vessels.

Cuts down on potential damage and insurance claims.

✅ 7. Environmental Advantages
Many modern gantry cranes are electric or hybrid, reducing emissions and noise pollution.



A 1200-ton Boat Lift Gantry Crane is a massive piece of equipment designed specifically for lifting, transporting, launching, and docking large vessels such as yachts, ships, or boats. Here are the key applications and use scenarios for such a heavy-duty crane:

🚢 Applications of a 1200-ton Boat Lift Gantry Crane
1. Shipyards and Boat Manufacturing
Lifting and moving hulls or completed vessels between different production stages.

Turning over large boat sections for inspection or welding.

Ideal for modular shipbuilding where large sections are built separately and then assembled.

2. Marinas and Yacht Harbors
Lifting yachts, catamarans, and other large boats in and out of water.

Transporting vessels to dry dock for maintenance or storage.

Useful for both commercial and private marinas handling superyachts.

3. Naval and Coast Guard Bases
Handling patrol boats, landing crafts, or submarines.

Deploying or retrieving vessels for repairs or seasonal storage.

4. Boat Repair and Maintenance Yards
Transporting vessels from water to workshops for painting, hull cleaning, engine work, etc.

Providing stable lifting for non-damaging hull support.

5. Ports and Logistics Hubs
Managing large watercraft as cargo, especially in special transport scenarios.

Loading and unloading heavy or oversized marine cargo.









🔧 1200-Ton Boat Lift Gantry Crane: Production Process
1. Design & Engineering
Requirement Analysis: Determine lifting capacity (1200 tons), boat dimensions, operation environment (saltwater, humidity).

3D Modeling & Structural Design: Use CAD software (SolidWorks, AutoCAD) to design the structure - including main beams, lifting points, wheelbases, steering system.

Finite Element Analysis (FEA): Simulate stress points, load distribution, and safety factors.

2. Material Procurement
High-Strength Steel: Main structural parts are made from Q345B, Q690D, or equivalent.

Hydraulic Systems: Pistons, cylinders, valves from certified suppliers.

Electrical Components: PLC, sensors, motor drives (often Siemens, Schneider).

Wheels & Tires: Specialized heavy-duty rubber tires for travel.

3. Steel Fabrication
Cutting: CNC plasma/laser cutting for precision steel parts.

Welding: MIG/MAG welding; robotic arms are used for large or repetitive sections.

NDT Inspection: Ultrasonic or radiographic tests ensure weld quality.

4. Assembly
Main Beam Assembly: Longitudinal beams (usually hollow rectangular) and crossbeams assembled and aligned.

Hydraulic System Integration: Lifting cylinders, oil tanks, and hydraulic motors installed.

Wheel & Steering System: Install multiple wheels for omni-directional movement (90°, crab steering, etc.).

5. Painting & Surface Treatment
Shot Blasting: Clean steel surfaces to SA 2.5 standard.

Primer & Coating: Anti-corrosion paint (epoxy zinc-rich primer + polyurethane topcoat).

Final Color: As per customer spec (often marine blue, safety orange, etc.).

6. Electrical & Control System Installation
Control Panels: PLC-based system installed.

Cabling: Waterproof, marine-grade cables.

Remote & Manual Controls: Wireless remotes and backup wired consoles.

7. Testing & Commissioning
Load Test: Usually 125% of rated capacity (1500 tons in this case).

Function Test: Lifting, lowering, steering, traveling, emergency stop.

Safety Checks: Limit switches, alarms, fail-safe devices.

8. Packaging & Delivery
Disassembly (if needed): For transport via container or bulk carrier.

Labeling & Protection: All parts labeled; protected against salt & moisture.

Shipping: Delivered to the dockside or direct to customer's shipyard.

9. Installation & On-Site Commissioning
Reassembly: At client's site by technical team.

Training: Operators are trained in safety, maintenance, and daily operations.

Final Acceptance: Performance check and client sign-off.

Workshop view:

The company has installed an intelligent equipment management platform, and has installed 310 sets (sets) of handling and welding robots. After the completion of the plan, there will be more than 500 sets (sets), and the equipment networking rate will reach 95%. 32 welding lines have been put into use, 50 are planned to be installed, and the automation rate of the entire product line has reached 85%.
