Mobile Overhead Crane



A Mobile Overhead Crane is a lifting equipment with two main beams, usually used in workshops, warehouses and other places that require lifting operations. The structural characteristics of the Mobile Overhead Crane give it significant advantages in various industrial situations. Its two main beams provide stable support, making the lifting operation safer and more reliable. The design of this crane includes a variety of working levels and is suitable for occasions with different frequencies of use. At the same time, it is also equipped with an overload limiter, a large-screen display and various protective devices, which improve safety during use. The advantage of a Mobile Overhead Crane is not only its structural stability, but also its design flexibility and practicality. For example, its control room platform entrance can be divided into three types: side, end, and top to facilitate operation needs in different environments. And this kind of crane also adopts aerial operation, which is different from ground operation. There is a small operating room in the air, making the operation more intuitive and precise.

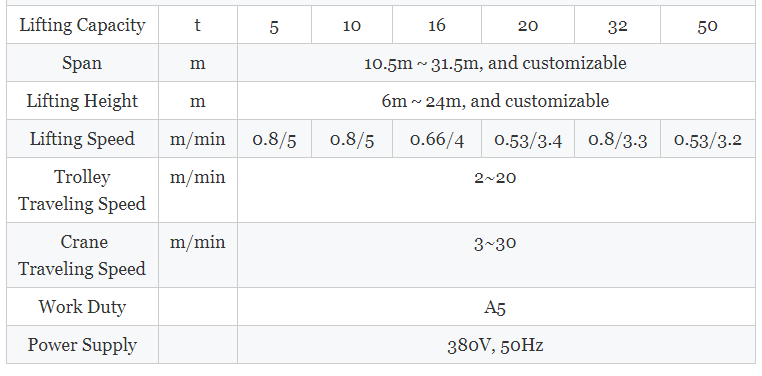

Warranty:1 year

Weight (KG):10000 kg

Feature:Bridge Crane

Condition:New

Power Source:Clients' Requirments



Bridge crane frame, which consists of two main beams and two end girders, which form the horizontal and longitudinal supporting structure of the crane. The main beam usually uses a box or truss structure, which has good mechanical strength and light weight, thus improving the lifting capacity and overall working performance.

Crane operating mechanism: The cart operating mechanism is responsible for the movement of the crane along the track. It is mainly composed of motors, brakes, reducers, couplings, transmission shafts, wheels and other components. The core function of this mechanism is to provide longitudinal movement power for the Mobile Overhead Crane and ensure smooth and precise movement.

Trolley operating mechanism: The trolley operating mechanism is located on the main beam of the Mobile Overhead Crane and is responsible for lateral movement above the bridge along the direction of the main beam. It mainly consists of a small frame, a lifting mechanism and a transverse movement drive device. The lifting device on the trolley frame realizes the lifting and lowering of goods through wire ropes and pulleys.

Control room: The control room is the place where the crane operator works. It is equipped with necessary control equipment and signaling devices. Depending on the working environment, the control room can be designed as open, closed or insulated to adapt to different working environments and climate conditions.

Sketch:









Strong load capacity: The Mobile Overhead Crane adopts a unique honeycomb beam design. This design structure makes the crane light in weight, large in load capacity, and has strong wind resistance. This design not only improves the performance of the device, but also increases its stability and reliability in various environments.

Suitable for frequent start-up braking: It is equipped with a cylindrical asynchronous motor, which has high power, sufficient power margin, and high power continuity rate, and is suitable for frequent start-up braking conditions. This makes Mobile Overhead Cranes excellent in industrial environments where quick responses and repetitive operations are required.

Convenient transportation: The elastic rod legs of the Mobile Overhead Crane can be turned around on the construction site and disassembled into individual parts, greatly facilitating transportation. This design feature not only reduces space occupation during transportation, but also enables rapid assembly and adjustment at the construction site, improving the efficiency of the overall project.

Wide adaptability: Thanks to the small installed capacity, this type of crane can be used normally in outdoor environments with limited power supply conditions, solving the problem of electricity consumption for on-site construction. This makes double-girder bridge cranes suitable not only for factories and warehouses, but also for wide applications in railways, ports and construction sites.





Processing and manufacturing industry: In the processing and manufacturing industry, double-girder bridge cranes are often used to transport raw materials and finished products on production lines. Due to its stable structure and large lifting capacity, it can easily move heavy materials, ensuring the continuity and efficiency of the production process.

Warehouse Logistics Center: In warehouses and logistics centers, Mobile Overhead Cranes are important tools for loading and unloading goods. It can efficiently stack and extract goods, optimize the use of warehousing space, and improve logistics efficiency.

Construction: In construction sites, Mobile Overhead Cranes are widely used to transport large amounts of construction materials, such as concrete, steel bars, bricks, etc. This greatly improves construction efficiency and reduces labor intensity

Port Terminal: Double-girder bridge crane is a key equipment for loading and unloading containers and bulk cargo. Its application has greatly improved the efficiency of cargo handling and shortened the docking time of ships. Double-girder bridge cranes provide the necessary lifting services when ship repairs or heavy equipment need to be loaded. Its stable performance ensures the safety and accuracy of operation.













The company has installed an intelligent equipment management platform, and has installed 310 sets (sets) of handling and welding robots. After the completion of the plan, there will be more than 500 sets (sets), and the equipment networking rate will reach 95%. 32 welding lines have been put into use, 50 are planned to be installed, and the automation rate of the entire product line has reached.
