Jib cranes are essential equipment for material handling in a variety of industries. Proper installation of jib cranes is essential for their safe and efficient operation. In this article, we will discuss the key considerations for jib crane installation.

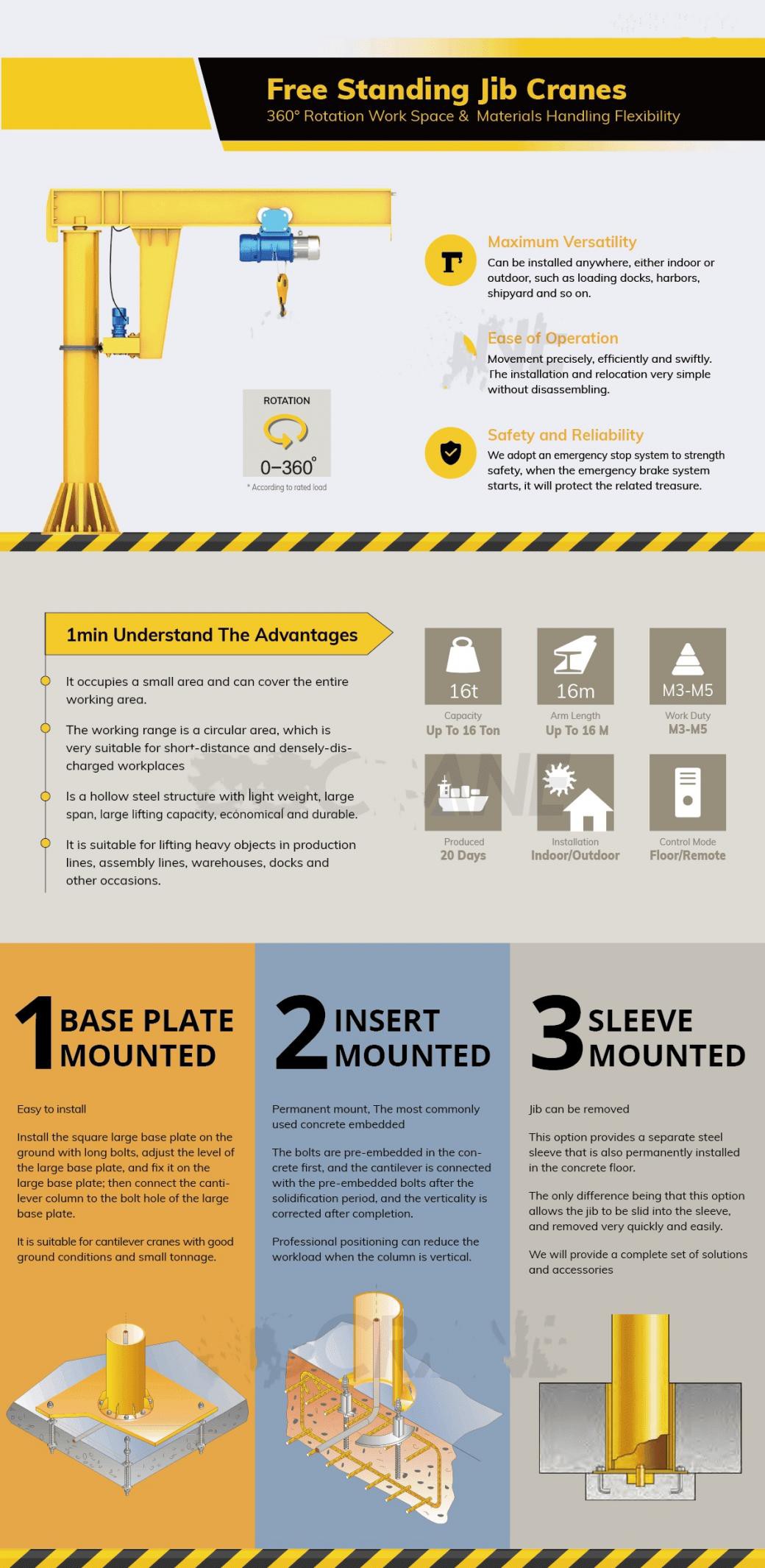

Freestanding jib cranes are designed to be mounted on concrete columns or structural steel columns. The installation process of a freestanding jib crane generally involves the following steps:
Step 1: Prepare the Installation Site
Before installing a freestanding jib crane, always make sure the installation site is level and has enough space for the crane to rotate freely. The installation site should also be clear of any obstructions that may prevent the crane from operating.
Step 2: Install the column
The first step in installing a column-mounted jib crane is to pour the foundation. The column should be installed on a foundation that is strong enough to support the weight of the crane and the lifting load. The column should also be perfectly vertical and aligned with the center of rotation of the crane.
Step 3: Install the jib
Once the columns are in place, the next step is to mount the boom to the columns. The boom should be mounted at a height that clears any obstructions in the surrounding area. The mounting bolts should be tightened to the manufacturer's specifications to ensure a secure connection.
Step 4: Mount the crane and trolley
The last step in installing a freestanding jib crane is to install the hoist and trolley. The hoist and trolley should be mounted on the jib and bolted down. The electrical wiring and controls should also be installed and tested before the crane is put into service.
Jib Crane Installation Conclusion
Proper installation is essential for the safe and efficient operation of a jib crane. It is important to follow the manufacturer's instructions and guidelines when installing a jib crane.
