Factory Custom Overhead Crane Bridge Crane

A factory custom overhead crane (also known as a bridge crane) is a heavy-duty lifting solution designed to meet specific operational requirements in industrial settings. These cranes are tailored to fit unique workspace dimensions, load capacities, and functional needs, ensuring optimal efficiency and safety.

Key Features of Custom Overhead Bridge Cranes:
Customizable Span & Height – Designed to fit the exact width and height of your facility.

Adjustable Load Capacity – Ranges from light-duty (1-10 tons) to heavy-duty (50+ tons).

Variety of Types:

Single Girder – Cost-effective for lighter loads (up to 20 tons).

Double Girder – Heavy-duty lifting with higher hook height (20+ tons).

Gantry Crane – Mobile version for outdoor or flexible use.

Underhung Crane – Mounted on roof structures for space efficiency.

Custom Runway Systems – Can be top-running or under-running based on structural support.

Specialized Controls – Pendant, radio remote, or cabin-operated.

Safety Features – Overload protection, limit switches, emergency stop, and anti-collision systems.

Material & Coating – High-grade steel with corrosion-resistant finishes for harsh environments.







Factory custom overhead crane and bridge crane components are essential for tailoring crane systems to specific operational needs. Here's a breakdown of key customizable components:

1. Bridge Girder (Main Beam)
Single Girder: Light to medium-duty, cost-effective.

Double Girder: Heavy-duty, higher lifting capacity, and span.

Material: Steel (Q235B, Q345B) or stainless steel for corrosive environments.

Design: Box-type or truss structure for strength and rigidity.

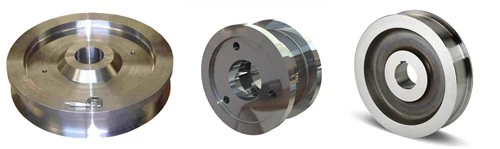

2. End Carriages & Wheels
Wheel Configuration: Single or double flanged wheels for rail guidance.

Drive Mechanism: Motorized or manual travel.

Material: Forged steel or alloy wheels for durability.

3. Hoist & Trolley
Electric Hoist: Wire rope hoist (5T–100T+) or chain hoist (0.5T–20T).

Trolley Design: Manual, motorized, or remote-controlled.

Custom Speed: Adjustable lifting/travel speeds.



4. Runway Rails & Supports
Rail Types: Crane rails (A45, A100), I-beams, or custom tracks.

Support Columns: Steel fabrication for high load capacity.





5. Control Systems
Pendant Control: Standard or explosion-proof.

Radio Remote Control: Wireless operation.

Automation: PLC-controlled with smart monitoring.






6. Electrical Components
Motors: AC/DC, variable frequency drives (VFDs).

Limit Switches: Overload protection, anti-collision systems.

Cabinets: Weatherproof or explosion-proof.

7. Safety Features
Overload Limiters: Prevent exceeding capacity.

Brakes: Fail-safe mechanical or electromagnetic.

Bumpers & Rail Clamps: Prevent runway over-travel.



8. Special Customizations
Explosion-Proof: For hazardous environments (chemical/oil/gas).

High-Temperature: Heat-resistant materials (steel mills/foundries).

Low Headroom: Compact design for limited space.

Gantry Adaptations: Adjustable legs for outdoor use.

Benefits of Custom Components
Optimized Performance: Tailored to load, speed, and duty cycle.

Space Efficiency: Custom spans, heights, and clearances.

Durability: Industry-specific materials and coatings.

Compliance: Meets ISO, OSHA, CMAA, or FEM standards.

Industries Served
Manufacturing, steel, construction, warehouses, ports, mining, and aerospace.





12. Sketch









Factory custom overhead cranes, also known as bridge cranes, offer numerous advantages tailored to specific industrial needs. Here are the key benefits:

1. Customized Design for Specific Needs
Tailored Capacity & Span: Designed to handle exact load requirements and facility dimensions.

Flexible Configuration: Options like single/double girder, underslung, or top-running based on space and workflow.

Specialized Features: Custom hoists, trolleys, or automation for unique applications (e.g., foundries, clean rooms).

2. Enhanced Productivity & Efficiency
Optimized Workflow: Reduces manual handling, speeds up material movement.

Precision Handling: Smooth operation for delicate or heavy loads.

Reduced Downtime: Reliable performance minimizes disruptions.

3. Space Optimization
Maximizes Floor Space: Overhead design keeps floor clear for operations.

Adaptable to Layouts: Custom spans and heights fit constrained or complex facilities.

4. Improved Safety
Reduces Worker Strain: Minimizes manual lifting risks.

Built-in Safety Features: Overload protection, limit switches, emergency stops.

Compliance with Standards: Meets OSHA, ANSI, or regional safety regulations.

5. Cost-Effectiveness
Long-Term Savings: Lower labor costs, reduced product damage.

Energy-Efficient Options: Variable frequency drives (VFDs) for smoother, greener operation.

Low Maintenance: Durable construction reduces upkeep expenses.

6. Durability & Longevity
High-Quality Materials: Weather-resistant coatings for harsh environments.

Robust Construction: Designed for heavy-duty, continuous use.

7. Automation & Smart Features
Remote Control & IoT Integration: Enables semi/fully automated operation.

Data Monitoring: Tracks usage, maintenance needs, and performance analytics.

8. Versatility Across Industries
Wide Applications: Manufacturing, warehouses, steel plants, aerospace, automotive, etc.

Special Environments: Explosion-proof, high-temperature, or cleanroom-compatible designs.

Conclusion
A custom overhead crane enhances efficiency, safety, and adaptability while optimizing space and costs. By tailoring the crane to exact operational needs, factories gain a competitive edge in material handling.







Factory custom overhead cranes, also known as bridge cranes, are essential for material handling in industrial settings. They are tailored to meet specific operational needs, ensuring efficiency, safety, and productivity. Below is an overview of their applications, benefits, and customization options:

Applications of Custom Overhead Bridge Cranes
Manufacturing Plants

Lifting and moving heavy raw materials (steel, machinery parts, etc.).

Assembly line operations for precise component positioning.

Warehousing & Logistics

Loading/unloading heavy pallets or containers.

High-speed material transfer with automated systems.

Steel & Metal Processing

Handling molten metal, coils, and large metal sheets.

High-temperature-resistant cranes for foundries.

Automotive Industry

Moving car chassis, engines, and heavy components.

Overhead assembly line integration.

Power Plants & Heavy Industries

Maintenance of turbines, generators, and large equipment.

Explosion-proof cranes for hazardous environments.

Aerospace & Shipbuilding

Precise handling of large aircraft/ship parts.

High-capacity cranes (50+ tons) for heavy modules.







The production procedure for a factory custom overhead crane (bridge crane) involves several key stages, from design to final installation. Below is a detailed step-by-step guide:

1. Requirement Analysis & Design
Customer Consultation: Determine load capacity, span, lifting height, duty cycle, and environmental conditions.

Design & Engineering:

Structural design (bridge girder, end carriages, hoist trolley).

Electrical system (control panel, motors, wiring).

Safety features (limit switches, overload protection, emergency stop).

CAD Modeling & Simulation: Validate crane performance under load conditions.

Regulatory Compliance: Ensure adherence to standards (ISO, CMAA, OSHA, DIN, FEM).

2. Material Procurement
Main Components:

Steel beams (for bridge girders and end carriages).

Electric hoist or wire rope hoist.

Runway rails and wheels.

Motors (travel, lifting, cross-travel).

Control system (pendant, remote, or cabin-operated).

Quality Check: Verify material certifications (e.g., steel grade, motor ratings).

3. Fabrication & Manufacturing
A. Bridge Girder Fabrication
Cutting & Welding: Steel plates/beams are cut, shaped, and welded into box girders or I-beams.

Annealing & Stress Relief: Heat treatment to prevent deformation.

Machining: Drilling holes for connections and alignment.

B. End Carriage Assembly
Frame Construction: Welded steel structure with wheels for longitudinal movement.

Wheel Installation: Mounted on rails with anti-derailment guards.

C. Hoist & Trolley Assembly
Electric Hoist/Wire Rope Hoist: Mounted on a trolley for cross-travel.

Gearbox & Brake System: Installed for smooth lifting and travel.

D. Electrical System Integration
Motor Installation: For bridge travel, trolley movement, and lifting.

Wiring & Controls: Pendant station, variable frequency drives (VFDs), and safety sensors.

4. Quality Inspection & Testing
Dimensional Check: Verify girder straightness, alignment, and welding quality.

Non-Destructive Testing (NDT): Ultrasonic/X-ray testing for welds.

Load Testing:

Static Load Test: 125% of rated capacity.

Dynamic Load Test: 110% of rated capacity with operational checks.

Electrical Safety Test: Insulation resistance, emergency stop function.

5. Surface Treatment & Painting
Sandblasting: Remove rust and impurities.

Primer & Paint: Anti-corrosion coating (epoxy or polyurethane).

Marking: Labels for capacity, warnings, and serial numbers.

6. Disassembly & Packaging
Modular Breakdown: For easy transportation (if crane is large).

Protective Packaging: Waterproof wrapping for outdoor shipments.

7. Installation & Commissioning
Runway Construction: Ensure runway rails are level and aligned.

Crane Assembly: Reassemble girders, end carriages, and hoist on-site.

Alignment & Calibration: Adjust wheel gaps and limit switches.

Final Testing: Operational checks under load.

Training: Operator and maintenance training.

8. After-Sales Support
Warranty & Maintenance: Regular inspections and spare parts support.

Documentation: Provide manuals, test reports, and certifications.





The company has installed an intelligent equipment management platform, and has installed 310 sets (sets) of handling and welding robots. After the completion of the plan, there will be more than 500 sets (sets), and the equipment networking rate will reach 95%. 32 welding lines have been put into use, 50 are planned to be installed, and the automation rate of the entire product line has reached.
