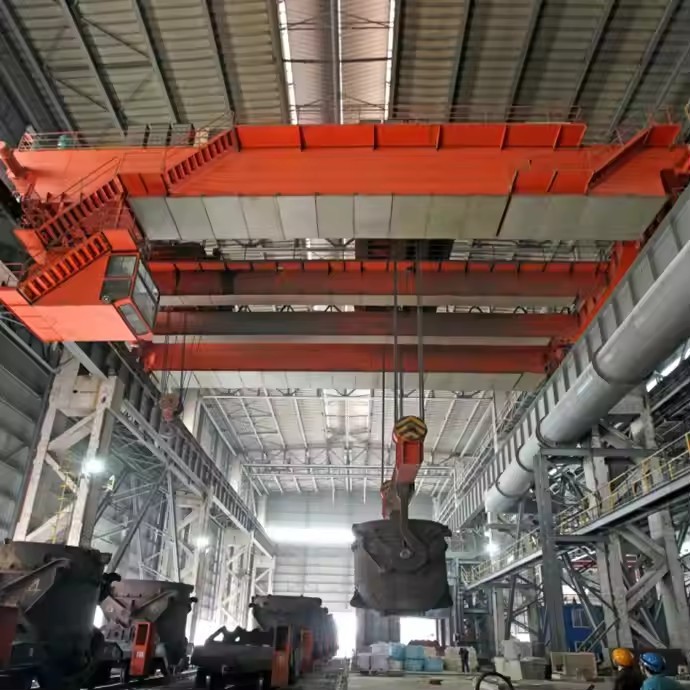

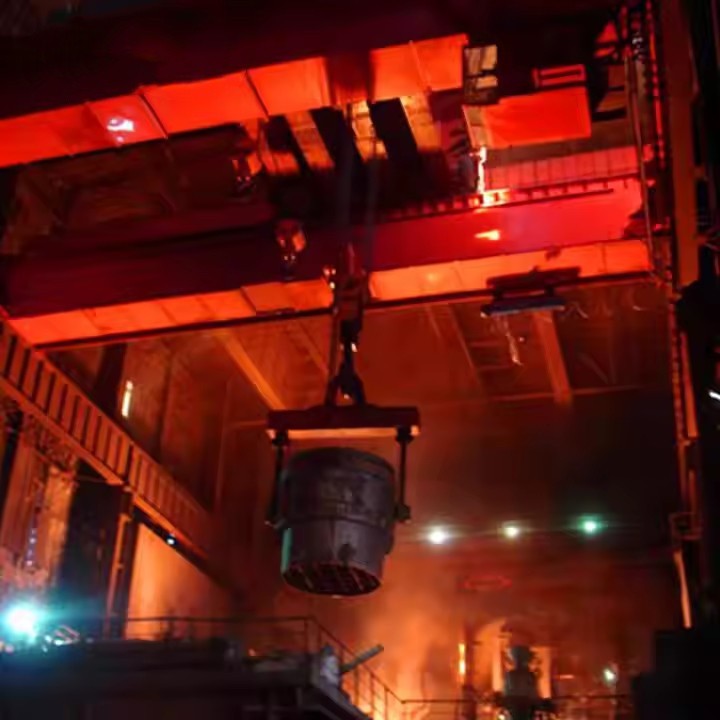

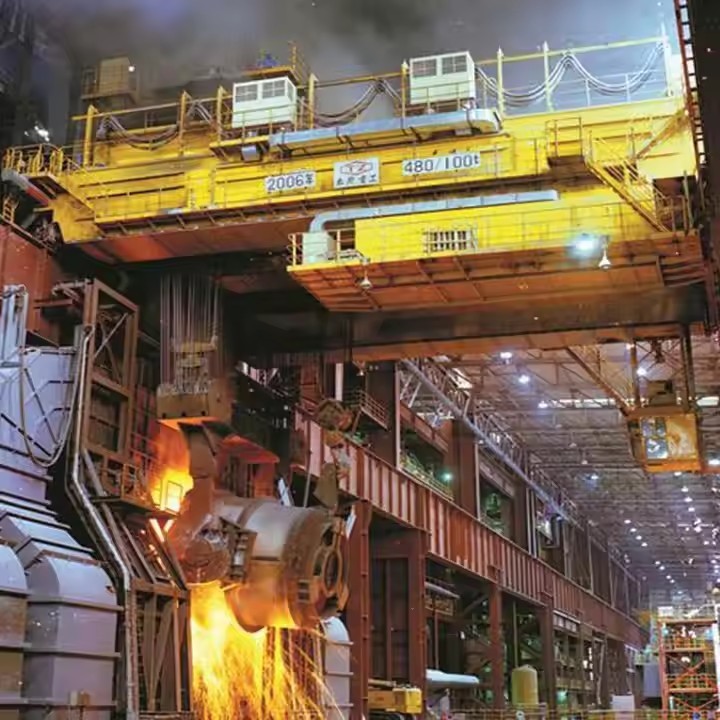

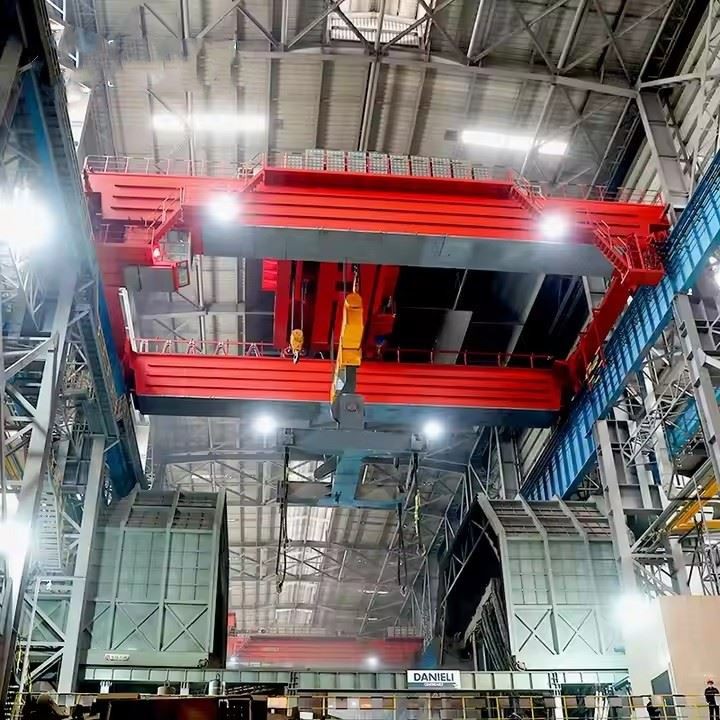

Metallurgical Casting Crane

What is a Metallurgical Casting Crane?

A Metallurgical Casting Crane is an overhead crane designed specifically for handling molten metal and heavy steel components in foundries, steel plants, and metallurgical workshops. Unlike standard cranes, it must operate under high temperatures, dusty environments, and handle extremely heavy loads with precision.



Key Features

Heat Resistance

Components near the furnace are made from heat-resistant materials.

Special insulation protects the hoist and electrical parts from radiant heat.

High Load Capacity

Designed to lift ladles containing molten metal, molds, ingots, or large castings.

Typical lifting capacities range from 5 to 200 tons, depending on the plant.

Precision Control

Smooth motion is critical to avoid spillage of molten metal.

Many have electro-hydraulic hoists for precise control.

Special Hooks and Attachments

Ladle hooks for molten metal.

Tongs or grab mechanisms for handling molds or ingots.

Safety Features

Emergency stop systems.

Anti-sway controls to stabilize molten loads.

Fire-resistant cables and controls.



Lifting Capacity 5 – 500+ tons
Span 10.5 – 35.5 m
Lifting Height 6 – 30 m (customizable)
Working Duty A5 – A8 (heavy/continuous duty)
Ambient Temperature -20°C to +40°C
Control Mode Pendant / Remote / Cabin

Let's break down the components of a Metallurgical Casting Crane. I'll list them clearly, explain their functions, and focus on what makes them specialized for handling molten metal in a steel or foundry environment.

1. Bridge (Main Girder)

Function: The main horizontal beam that spans the casting area.

Details:

Carries the trolley and hoist.

Must withstand high loads and heat from nearby furnaces.

Usually made of heavy-duty steel.

2. Trolley

Function: Moves along the bridge to position the hoist over the load.

Details:

Can be electric or hydraulic.

Carries the hoist and its attachments.

Precision movement is critical to avoid spillage of molten metal.

3. Hoist

Function: Lifts and lowers the load (ladles, molds, ingots).

Details:

Designed to handle extremely heavy loads.

Types: Wire rope hoist (common), chain hoist (less common).

Often equipped with motor brakes and anti-sway controls.

4. Ladle/Load Hook

Function: Attaches the load (usually molten metal ladles) to the hoist.

Details:

Made of heat-resistant material.

May be tilting hooks for pouring molten metal accurately.

Some hooks have a quick-release mechanism for ladle replacement.



5. End Trucks (End Carriages)

Function: Allow the bridge to move along the runway rails.

Details:

Equipped with wheels and motors.

Must handle heavy loads while maintaining smooth travel.

Rails are often installed on either side of the casting bay.



6. Runway

Function: Tracks or rails on which the crane bridge moves.

Details:

Runs the length of the casting bay.

Supports the crane's weight and the load.



7. Electrical & Control Systems

Function: Powers and controls the crane's movement.

Details:

Includes joysticks, pendant control, or remote control.

Some modern cranes use PLC-based automation for precise ladle positioning.

Must be heat-resistant and shielded from sparks.

8. Safety Devices

Emergency Stop: Immediately stops crane in emergencies.

Overload Protection: Prevents lifting beyond rated capacity.

Anti-sway Mechanisms: Stabilizes molten metal loads.

Heat Shields: Protects sensitive parts from furnace heat.

Sketch

Main technical





Advantages of Metallurgical Casting Crane

High Load Capacity

Can lift extremely heavy loads (molten metal ladles, ingots, molds) that are impossible to move manually.

Some cranes can handle up to 200 tons or more.

Heat Resistance

Designed to operate safely near furnaces and molten metal.

Components like hooks and cables are protected against high temperatures.

Precision Handling

Smooth trolley and hoist movement allow accurate positioning of ladles or molds.

Minimizes spillage and improves casting quality.

Enhanced Safety

Reduces risks associated with moving molten metal manually.

Equipped with anti-sway devices, overload protection, and emergency stops.

Efficiency and Speed

Automates material handling in large casting areas.

Reduces production time by quickly transporting molten metal and heavy castings.

Versatility

Can handle different attachments: ladles, ingot tongs, mold grabs, tilting hooks.

Can adapt to various casting operations.

Durability

Made with robust construction to withstand harsh metallurgical environments (dust, heat, vibrations).



Applications of Metallurgical Casting Crane

Handling Molten Metal

Lifts and transports molten steel or iron from furnace to molds.

Provides precise positioning during pouring.

Transporting Heavy Castings

Moves solid ingots or large cast parts within the foundry.

Supports assembly of heavy metal components.

Foundry Operations

Used in sand casting, continuous casting, and ingot casting processes.

Handles molds, cores, and castings efficiently.

Steel Plant Applications

Assists in ladle transfer, furnace operations, and rolling mill preparations.

Handles refractory materials or furnace equipment safely.

Maintenance & Handling of Equipment

Can lift and position furnace lids, ladle covers, or heavy tools during maintenance.



The production process of a QZ Series Double Girder Grab Bucket Overhead Crane involves several key stages, from initial design and material selection to assembly, testing, and final delivery. The manufacturing process is highly detailed and requires precise engineering to ensure the crane is durable, reliable, and capable of handling the heavy loads typical in bulk material handling applications. Below is a step-by-step overview of the production process:



1. Design and Engineering

Conceptual Design: The first step is designing the QZ Series crane based on the specific needs of the client or intended use. This involves discussions with the customer to understand the working environment, load capacity, span, lifting height, and control systems needed.

Detailed Engineering: Once the concept is finalized, engineers develop detailed designs for each component, including:

The bridge frame (double girder structure).

The grab bucket (clamshell or orange peel).

Hoist mechanism and trolley systems.

Electrical control systems.

Safety features like overload protection and limit switches.

Structural Calculations: Engineers perform rigorous calculations to ensure the crane meets the required strength and stability standards, especially considering the heavy loads it will carry.



2. Material Selection

High-Quality Steel: Materials used in the crane are typically high-strength steel, which provides durability and safety under heavy loads.

Steel Plates for Girder Frame: Used to fabricate the main bridge girder and cross beams.

Steel for Trolley and Hoist: The trolley and hoist components require materials with high wear resistance and structural strength.

Grab Bucket Materials: The grab bucket is usually made from high-strength steel or alloy steel for durability, especially when handling abrasive materials.

Motors and Electrical Components: For the hoisting mechanism, trolley, and control systems, the motors and electrical components must be of high quality to ensure efficient and reliable operation.



3. Manufacturing and Fabrication

CNC Cutting and Welding:

Steel plates are cut using CNC cutting machines to the precise dimensions needed for each part (such as the girder beams, frame structure, and support brackets).

Welding is done to join these components into larger structures like the double girder frame and trolley frame. Precision welding techniques are used to ensure the parts are strong and properly aligned.

Machining: Parts like hoist drums, shaft supports, and gears are machined to meet exact specifications, ensuring smooth and reliable movement.

Casting and Forging:

Some critical parts, like gears, bearings, and certain components of the grab bucket, may be cast or forged to achieve the necessary strength and resistance to wear.

Grab Bucket Fabrication:

The grab bucket is often assembled separately, with the clamshell jaws or orange peel claws welded and fitted with the hydraulic or mechanical controls that open and close the grab.

The bucket is then tested to ensure proper functioning before being integrated with the hoist mechanism.



4. Assembly

Girder Assembly: The two girders that make up the double girder design are assembled and aligned. These are the primary load-bearing components, and the alignment must be precise to ensure smooth crane operation.

Trolley and Hoist Assembly:

The trolley is attached to the bridge frame and is fitted with the hoisting mechanism.

The hoist (which includes the drum, ropes, and lifting motor) is installed on the trolley to lift and lower the grab bucket.

The trolley wheels are mounted to ensure smooth horizontal movement along the girder.

Grab Bucket Installation: The grab bucket is mounted on the hoist ropes and integrated with the hoist system. Depending on the crane design, hydraulic or electric motors control the opening and closing of the grab.

End Carriages and Wheels: The end carriages are assembled and fitted with wheels, which allow the entire crane to travel along the runway rails. These carriages are essential for smooth movement.



5. Electrical and Control Systems Installation

Electrical Wiring: The crane's electrical systems (motors, limit switches, lights, etc.) are installed, and all wiring is tested to ensure it meets safety standards.

Control Panel Assembly:

The operator control panel (if a cabin is used) or wireless remote controls are installed.

The PLC (Programmable Logic Controller) is programmed to automate and control the crane's movements, ensuring smooth operation with precise control over lifting, lowering, and horizontal travel.

Safety Systems: The crane's safety features (e.g., overload protection, limit switches, emergency stop buttons, wind monitoring systems) are tested and configured.



6. Painting and Finishing

Surface Treatment: The crane components are typically subjected to surface treatment processes like shot blasting or sandblasting to remove rust and debris.

Painting: After surface treatment, the crane components are painted with high-quality industrial paint that provides protection against corrosion, especially in outdoor or harsh environments.

Coating for Grab Bucket: The grab bucket is also coated to resist corrosion, especially if it's going to be used in wet or highly abrasive environments like ports or steel plants.



7. Testing and Quality Control

Pre-Assembly Testing: Individual components like the hoist mechanism, grab bucket, and electrical systems are tested for functionality before final assembly.

Full System Testing:

The completed crane undergoes a series of rigorous tests, including:

Load tests to ensure the crane can handle the specified weight without any issues.

Safety system checks to verify that all limit switches, emergency stops, and overload protection devices are working properly.

Operational tests for both manual and automatic control systems to ensure smooth operation and correct functionality of all movements (lifting, lowering, horizontal travel, etc.).

Final Inspection: Once testing is complete, the crane is subjected to a final quality control check to ensure everything meets the design and safety standards.



8. Packaging and Delivery

Disassembly (if needed): Some larger cranes may be disassembled for easier transport. Components like the girder, trolley, and grab bucket may be separated into smaller sections.

Packaging: Smaller parts and sensitive components are carefully packaged to avoid damage during transport.

Shipping: The crane is shipped to the customer's site, either as a pre-assembled unit or in parts that will be reassembled onsite. The delivery includes documentation, installation instructions, and warranty details.



9. Installation and Commissioning

Once the crane arrives at the customer's site, installation is carried out by trained technicians, who will:

Assemble any parts that were disassembled during transport.

Install the crane on the runway rails and connect the electrical systems to the power supply.

Commissioning involves running the crane through a series of test operations to ensure everything is working as expected before being handed over for regular use.

Workshop view:

The company has installed an intelligent equipment management platform, and has installed 310 sets (sets) of handling and welding robots. After the completion of the plan, there will be more than 500 sets (sets), and the equipment networking rate will reach 95%. 32 welding lines have been put into use, 50 are planned to be installed, and the automation rate of the entire product line has reached 85%.
