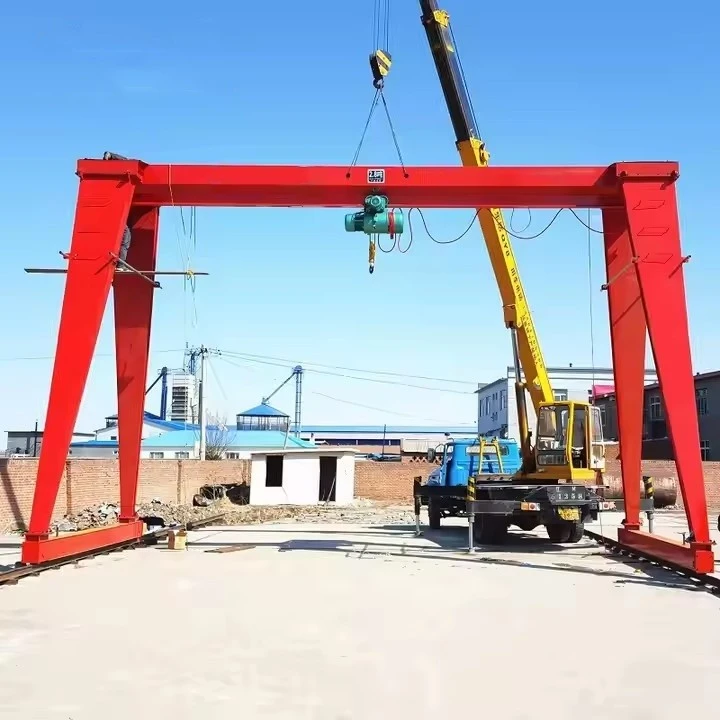

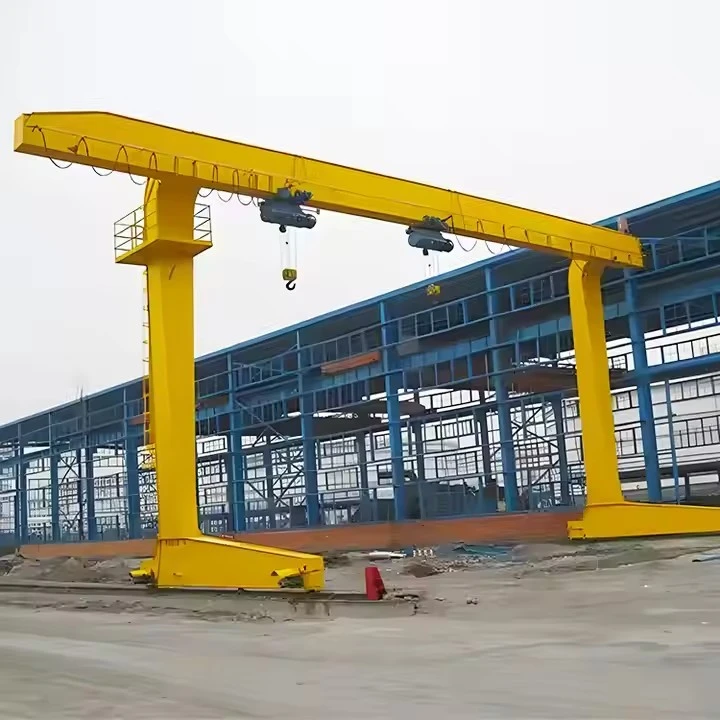

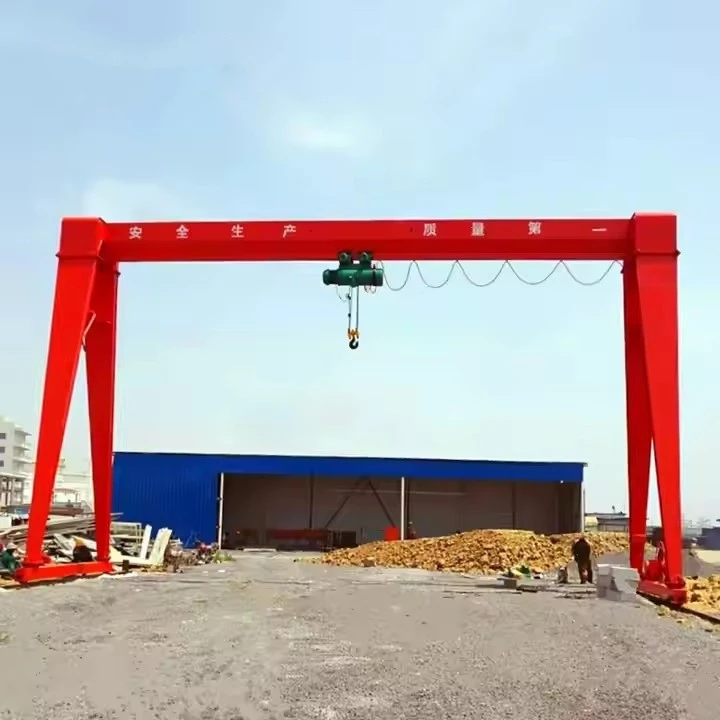

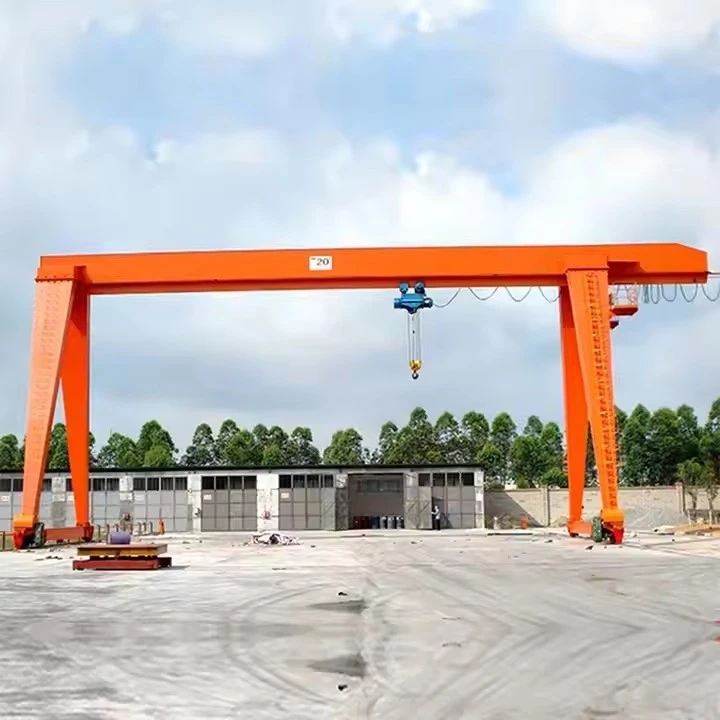

Electric Mobile Gantry Crane
Products Description
Why Choose Mobile Over Fixed?
◉ 80% Faster Deployment – Operational within hours vs. weeks for rail installation
◉ 30% Cost Savings – No civil engineering work required
◉ 100% Space Utilization – No permanent footprint
Key Features & Benefits
1. Fully Mobile Design
Rubber-Tired Wheels: Electrically powered travel (no rails needed)
360° Mobility: Can be driven to any location within facility
Compact Turning Radius: Some models feature omnidirectional wheels
2. Electric-Powered Efficiency
Battery or Mains Powered:
Lithium-Ion Batteries: 8-12 hour runtime (common in 5-20 ton models)
Cable Reel Option: For continuous indoor operation
Regenerative Braking: Recovers energy during lowering
3. Smart Load Handling
Capacity: Typically 1-50 tons (custom heavy-duty models up to 100 tons)
Lift Height: Adjustable via telescopic legs (up to 12m in some models)
Precision Control: VFD-driven hoists with ±2mm positioning
4. Advanced Safety Systems
✔ Automatic Load Limiter – Prevents overloading
✔ Anti-Tip Sensors – Detects uneven ground
✔ Emergency Stop + Deadman Switch – Instant braking
✔ Blue Safety Lights – Visual travel warning
5. Quick Setup & Adaptability
No Foundation Needed – Ready to operate in minutes
Collapsible Models – For easy transport between sites
Attachment-Ready – Compatible with spreaders, magnets, vacuum lifters
Comparison: Mobile vs. Fixed Gantry Cranes
| Feature | Electric Mobile Gantry | Fixed Rail Gantry |
|---|---|---|
| Mobility | Free movement anywhere on firm surface | Restricted to rail path |
| Installation | No groundwork required | Requires rail installation |
| Max Capacity | Up to 50 tons (standard) | Up to 550+ tons |
| Cost | Lower upfront cost | Higher infrastructure investment |
| Best For | Multi-location tasks, temporary sites | Permanent high-capacity operations |
Place of Origin:Henan, China
Warranty:2 years
Weight (KG):60000 kg
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Application:warehouses,factory and other place
Crane type:box type gantry crane
Travelling speed:20m/min
Lifting mechanism:Electric Hoist
Control method:Ground Control+ Remote Control (customized)
Working duty:A5
Working Temperature:-20~+40℃
Industrial voltage:380V50HZ3Phanse or other
Color:Customised
Customization:Accepted
Pictures & Components
1. Structural Framework
| Component | Description | Material/Feature |
|---|---|---|
| Main Beam | Single or double girder design | Box-section steel (Q345B) or aluminum alloy |
| Adjustable Legs | Telescopic or fixed-height vertical supports | Hydraulic/pneumatic height adjustment option |
| Base Frame | Wheel-mounted chassis with stabilizers | Reinforced steel with anti-tip sensors |
2. Mobility System
| Component | Function | Technical Specs |
|---|---|---|
| Drive Wheels | Powered movement (2-8 wheels) | Polyurethane/rubber tires (500-1500mm dia.) |
| Steering | Manual push, remote-controlled, or automated guidance | 90°-360° turning capability |
| Brakes | Fail-safe electromagnetic brakes | DIN 15435 certified |
3. Hoisting Mechanism
| Component | Details | Capacity Range |
|---|---|---|
| Electric Hoist | Wire rope or chain-driven | 0.5-50 ton (standard) |
| Trolley | Travels along beam (manual or powered) | 2-20 m/min travel speed |
| Hook Block | Swivel-type with safety latch | Forged steel (Grade 80/100) |
4. Power & Control
| System | Features | Protection Rating |
|---|---|---|
| Battery Pack | Lithium-ion (48V-96V) with quick-change system | 8-12 hr runtime |
| Control Panel | VFD-controlled acceleration/deceleration | IP65 enclosure |
| Operator Input | Pendant/remote (2.4GHz radio) with emergency stop | 100m wireless range |
5. Safety Systems
| Component | Purpose | Standard Compliance |
|---|---|---|
| Load Limiter | Electronic overload protection | EN 14492-2 |
| Anti-Collision | Laser/ultrasonic sensors for obstacle detection | SIL2 safety level |
| Stabilizers | Hydraulic outriggers for lifting operations | 15-30° deployment angle |
.
6. Optional Add-ons
Automation Kit: RFID positioning + programmable logic control (PLC)
Environmental Packages:
Corrosion-resistant (salt spray test >500h)
Cold-weather kit (-30°C operation)
Attachments:
Vacuum lifters (for glass/panels)
Spreaders (container handling)
Maintenance Checklist
Daily:
Wheel/tire inspection
Battery charge level verification
Monthly:
Hoist wire rope lubrication
Bolt torque checks (per FEM 9.755)
Annual:
Load test (110% rated capacity)
Control system safety validation
Sketch
Main technical
Advantages
Key Advantages
| Feature | Technical Benefit | Operational Impact |
|---|---|---|
| 1. Ultimate Mobility | Rubber-tired omnidirectional wheels (2-8 driven wheels) | Move freely across floors (no rail restrictions) with 360° steering capability |
| 2. Rapid Deployment | Self-contained system requires <1hr setup | 90% faster operational readiness vs. fixed cranes |
| 3. Space Optimization | Collapsible designs (foldable legs/beams) | Fits through standard 3m doorways when retracted |
| 4. Energy Efficient | Regenerative braking + lithium batteries (up to 12hr runtime) | 30% lower energy costs vs. diesel alternatives |
| 5. Precision Handling | VFD-controlled hoists (±2mm positioning) with anti-sway tech | Ideal for delicate assembly operations |
| 6. Load Versatility | Quick-change attachments (magnets/vacuum/forks) | Handle everything from steel coils to glass panels |
| 7. Smart Connectivity | IoT-enabled models with load tracking & predictive maintenance | Real-time monitoring via smartphone/tablet |
Application:
Industrial Applications
A. Manufacturing
Automotive Plants
Task: Engine block transfers (5-15 ton lifts)
Special Feature: Non-sparking components for battery assembly areas
Aerospace
Case Study: Boeing uses 20-ton mobile gantries with laser alignment for wing positioning
B. Logistics & Warehousing
| Application | Typical Specs | Innovation |
|---|---|---|
| Cross-docking | 3-10 ton capacity | RFID-guided autonomous movement |
| Container Unloading | 20-40 ton with spreaders | Hydraulic stabilizers for uneven ground |
C. Maintenance Services
Wind Turbine Repair
Solution: 10-ton crane with 12m lift height fits inside nacelles
Tech: Lithium batteries operate at -20°C to 50°C
Ship Engine Overhauls
Example: Mitsubishi's floating dock cranes with 50-ton capacity
D. Construction & Infrastructure
Prefab Concrete Installation
Advantage: Relocate between floors as construction progresses
Safety: Automatic outrigger deployment on uneven surfaces
E. Special Environments
Explosive Areas
Certification: ATEX Zone 1 compliant models
Feature: Air-purged control panels
Cleanrooms
Design: Stainless steel with particulate filters
Crane production procedure
The production procedure for a single beam traveling gantry crane involves several key stages, from design and material procurement to assembly, testing, and final delivery. Below is a step-by-step outline of the typical manufacturing process:
1. Design & Engineering
Customer Requirements Analysis: Determine lifting capacity, span, lifting height, duty cycle, and operating environment.
Structural Design:
Design the main girder (single box or I-beam structure).
Design end carriages (legs/wheels) and runway beams.
Select hoist/trolley type (electric or manual).
Load & Stress Calculations: Ensure compliance with standards (ISO, FEM, DIN, or ASME).
Electrical & Control System Design: Choose motors, brakes, limit switches, and control panels.
2. Material Procurement
Steel Plates & Profiles: High-quality Q235B/Q345B steel for main girders and supports.
Mechanical Components: Wheels, axles, bearings, gears, and couplings.
Electrical Components: Motors, cables, control panels, and safety devices.
3. Fabrication of Main Components
A. Main Girder Fabrication
Cutting: CNC plasma/oxy-fuel cutting for precision.
Welding: Automated submerged arc welding (SAW) for strong seams.
Straightening & Inspection: Ensure proper camber (pre-bend) and check for defects (UT/RT testing).
B. End Carriages & Legs
Frame Assembly: Welded steel construction with reinforced bracing.
Wheel & Bearing Installation: Machined wheels for smooth travel.
C. Hoist & Trolley
Pre-assembled Hoist: Electric chain hoist or wire rope hoist.
Trolley Frame: Fabricated to accommodate hoist movement.
4. Surface Treatment & Painting
Shot Blasting: Removes rust and improves paint adhesion.
Primer & Paint: Anti-corrosion coatings (epoxy + polyurethane).
5. Assembly
Girder & End Carriage Joining: Bolt or weld the main beam to legs.
Hoist/Trolley Installation: Mounted on the girder.
Electrical Wiring: Connect motors, controls, and safety devices.
6. Testing & Quality Control
Dimensional Inspection: Verify span, height, and alignment.
Load Testing:
Static Load Test: 125% of SWL (Safe Working Load).
Dynamic Load Test: 110% of SWL with operational checks.
Functional Tests: Travel, lifting, braking, and limit switch verification.
7. Disassembly & Packaging
For Shipment: Crane may be disassembled into modules (girder, legs, hoist).
Protective Packaging: Waterproof wrapping for sea transport.
8. Installation & Commissioning (On-Site)
Runway Preparation: Ensure level rails or ground support.
Reassembly: Bolt components together.
Final Testing: Operational checks under load.
9. Documentation & Delivery
Manual & Certificates: Include load test reports, CE/ISO certifications.
Training: Operator and maintenance guidance.
Workshop view:
The company has installed an intelligent equipment management platform, and has installed 310 sets (sets) of handling and welding robots. After the completion of the plan, there will be more than 500 sets (sets), and the equipment networking rate will reach 95%. 32 welding lines have been put into use, 50 are planned to be installed, and the automation rate of the entire product line has reached 85%.
