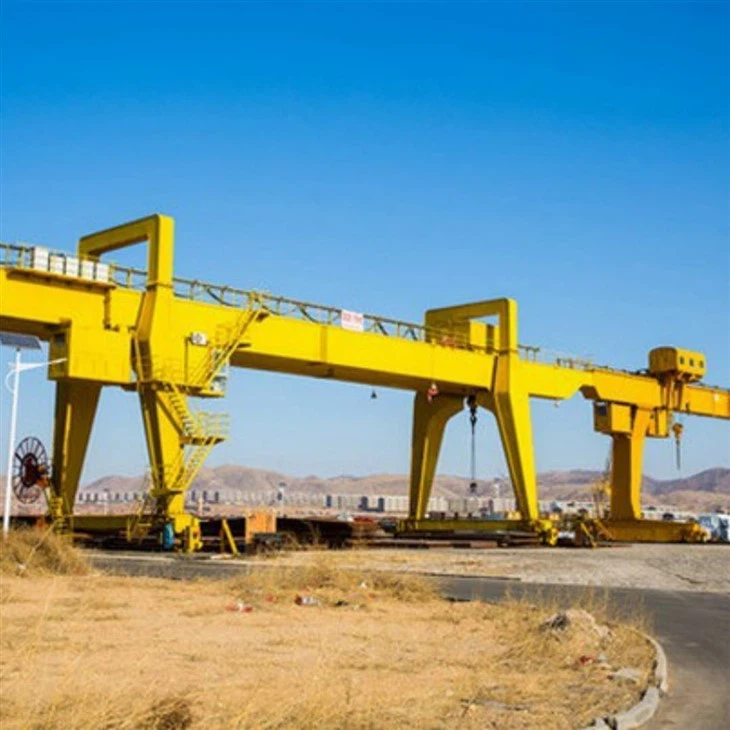

Mobile Double Girder Truss Gantry Crane

Key Components

Double Girders:
Two horizontal beams (girders) span the distance between the supports, increasing load capacity and crane stability. This design is ideal for handling large and heavy loads.

Truss Structure:
The girders are constructed using a truss design, which reduces wind resistance and overall weight while maintaining structural integrity. This is particularly useful for outdoor operations in windy environments.

Gantry Legs and Wheels:
The crane stands on four legs, each mounted on wheels or tracks, allowing it to move horizontally across a workspace. The mobility enables the crane to serve multiple working areas without the need for a fixed runway system.

Hoisting Mechanism:
A trolley hoist runs along the girders to lift and move loads. It can be electrically or manually operated, depending on the application.

Advantages

High Load Capacity: The double girder system allows for heavier lifting compared to single girder cranes.

Mobility: Can be relocated easily across sites or within large outdoor workspaces.

Wind Resistance: The truss design minimizes wind drag, making it safer and more stable in open environments.

Versatility: Suitable for a wide range of applications, from container handling to construction and assembly operations.

Common Applications

Precast concrete handling

Wind turbine component assembly

Shipbuilding and maintenance

Construction and bridge erection

Outdoor storage yards

Core Components:Engine, Bearing, Gearbox, Motor, Gear

Place of Origin:Henan, China

Warranty:2 years

Weight (KG):50000 kg

Video outgoing-inspection:Provided

Machinery Test Report: Provided

Application: Outdoor

Keywords: Gantry Crane

Rated Loading Capacity: 50Ton

Cross travelling speed: 44.6m/min

Long travelling speed: 47.1m/min

Control way: cabin

Power supply: Cable reel

Steel track: QU80

Power: 3-phase AC 50HZ 380V

Certification: CE ISO

Pictures & Components

1.Double Girders (Truss Structure)

Function: These two parallel horizontal beams form the main load-bearing structure.

Truss Design: Made of interconnected steel members forming a truss to reduce weight and wind resistance.

Advantage: Greater load capacity and longer spans compared to single girder cranes.

Trolley & Hoisting Mechanism

Trolley: Moves along the length of the double girders.

Hoist: Lifting unit mounted on the trolley; can be electric or hydraulic.

Hoist includes drum, motor, gearbox, and hook for load lifting and lowering.

3.End Carriages

Located at each end of the gantry, supporting the girders.

Equipped with wheels or track drives for horizontal movement.

Often house motors and gearboxes for mobility.

4.Travel Mechanism (Mobile Base)

Comprises wheels, axles, drive motors, and brakes.

Allows the crane to move along a rail or flat ground surface.

Can be powered (motorized) or manually moved depending on size.

5.Trolley travelling mechanism

1) Structural composition

Trolley frame: High-strength steel is commonly used to ensure the frame can handle the substantial weight and stresses during operation.

Wheel set: Large, durable wheels are mounted on the trolley to allow smooth movement along the gantry rails or beams. These wheels are designed for heavy-duty operations and may be equipped with bearings for better efficiency.

Drive device: High-power electric motors drive the trolley, usually using variable speed drives for precise control. These motors are located within the trolley frame.

2) Function of the trolley operating mechanism

The trolley travel mechanism of the largest double girder gantry crane plays a critical role in the crane's operation by moving the hoisting mechanism (or hook) horizontally along the length of the crane's span.The trolley is responsible for moving the load horizontally across the crane's beam (double girder structure). This allows the crane to position the load at different locations within its working area.By traveling along the girders, the trolley can transport loads across the entire span of the crane, facilitating the lifting and placing of heavy materials or equipment in various positions within the crane's working range.The trolley travel mechanism allows for precise positioning of the load along the beam, which is crucial for tasks that require accurate placement, such as loading/unloading containers, large construction materials, or heavy industrial equipment.

6.Crane wheel

The crane wheel of a double girder gantry crane, particularly one designed for heavy-duty or large-scale applications, is a critical component. It is engineered to support and facilitate the movement of the crane along its runway tracks.

Typically made of high-strength forged steel or cast steel, such as 42CrMo4 or 65Mn, to endure high loads and resist wear.Heat-treated for improved durability and resistance to deformation under heavy loads. Tread Profile: Precision-machined to fit the rail perfectly, ensuring smooth operation and minimal wear. Larger cranes require larger diameter wheels to distribute the load effectively and reduce stress on the rail and wheel.Designed to bear the immense static and dynamic loads of the crane, which can weigh several hundred tons, including the load being lifted.

Some wheels are powered (drive wheels) to move the crane, while others are idlers. The drive wheels are connected to motors and gearboxes to provide traction.Bearings and wheel surfaces are often lubricated to reduce wear and prolong lifespan.Regular inspections are critical to monitor for cracks, wear, or deformation.

7.Crane Hook

The crane hook of the largest double-girder gantry crane is a critical component, specifically designed to handle heavy-duty lifting tasks in industrial environments such as shipyards, steel mills, and large construction sites.

For the largest gantry cranes, the hook may handle loads in the range of hundreds of tons, depending on the crane's rated capacity. For instance, hooks for 500-ton or larger cranes are common in specialized industries.

Made from high-strength alloy steels like forged carbon steel or alloy steel to provide the necessary tensile strength and durability.Heat-treated for enhanced toughness and resistance to wear and deformation.

Hooks are generally single or double hooks, with double hooks used for better load distribution in high-capacity systems.May feature a rotating design to allow precise positioning of the load.

Hooks are often customized based on the specific lifting needs of the application, such as lifting containers, coils, slabs, or other heavy objects.

Motor

1) The motor of the largest double girder gantry crane is a critical component as it powers the lifting and moving mechanisms. These motors are typically chosen based on the crane's capacity, operational requirements, and environmental conditions.

2) The motors in the largest gantry cranes can have power ratings in the range of hundreds of kilowatts, depending on the crane's load capacity (e.g., 500 tons or more).Motors are sized to ensure smooth operation even under maximum load conditions.

3) Operates on industrial power supplies, typically 380-690V AC, with higher voltage systems used for ultra-heavy cranes.Some cranes use multiple motors for redundancy, ensuring that one motor failure does not halt operation.Equipped with emergency stop systems and overload protection.

.

Sound and light alarm system & limit switch

1) Sound and light alarm system

The sound and light alarm system of a double-girder gantry crane is a critical safety component designed to alert personnel in the crane's vicinity about its operation or potential hazards.

Audible Alarm (Sound): Produce loud and distinctive sounds to warn workers.High-decibel siren or buzzer (typically 80-120 dB, adjustable based on site requirements).

Visual Alarm (Light): Provide a visible warning, especially in noisy environments or for hearing-impaired workers.Flashing LED or strobe lights with high visibility.Different colors for specific warnings (e.g., red for emergency, yellow for caution).

2) Limit switch

A limit switch is a crucial safety and operational device in a double girder gantry crane, particularly for the largest and most heavy-duty models. Its primary function is to ensure the safe operation of the crane by restricting its motion within defined parameters to prevent accidents or equipment damage.

Hoist Limit Switch:Prevents the hook or load block from traveling too high or too low.Ensures that the wire rope does not over-tighten or unwind completely, which could lead to snapping or tangling.

Travel Limit Switch:Limits the horizontal movement of the crane or trolley along the gantry or runway beams.Prevents collisions with end stops or other equipment by halting movement at preset points.

Slew Limit Switch:Restricts the rotation of the crane to specific angles.

Load Limit Switch (Overload Protection)：Detects when the crane is lifting more than its rated capacity.Stops operations to prevent mechanical failure and accidents.

Wind Speed Limit Switch: For outdoor gantry cranes, monitors wind speed.

10.Safety Devices

1) Overload protection device:Prevents the crane from lifting loads exceeding its rated capacity.

2) Limit Switches: Prevent the crane from moving beyond its designated operational area.

3) Emergency Stop System: Allows operators to immediately stop all crane operations in case of an emergency.

4) Anti-Collision Systems: Prevents collisions with other cranes, objects, or structures in the operating area.

5) Wind Speed Alarm and Locking Devices: Ensures the crane's stability during high winds, especially for outdoor cranes.

6) Load Moment Limiter: Prevents the crane from tipping due to excessive load or improper load distribution.

11.Control Mode

1) Manual control: The operator directly controls the various operating mechanisms of the crane through buttons or switches on the manual control panel. Simple operation, suitable for small or short-term operations; can be quickly adjusted according to specific needs.

2) Wireless remote control: The various functions of the crane are controlled by a wireless remote control, and the operator can operate at a safe distance. Improves the flexibility and safety of operation, especially suitable for complex or dangerous working environments.

3) Wired remote control: Operate through the control line connected to the crane, and the operator inputs instructions through a handheld controller. Compared with wireless remote control, the signal is stable and not easily interfered with, which is suitable for operation in a fixed area.

4) Automated control: Automated operation is achieved through PLC (Programmable Logic Controller) or computer system, and the operation of the crane is controlled according to the preset program. Improves the accuracy and consistency of operation, suitable for large-scale and repetitive operations, and reduces interference from human factors.

5) Frequency conversion control: The speed of the motor is adjusted by the frequency converter to achieve precise control of the operating speed of the crane. It can smoothly accelerate and decelerate, improve the safety and efficiency of lifting operations, and reduce the impact on equipment.

12.Sketch

Main technical

1. High Load Capacity

The double girder design allows for greater lifting capacity compared to single girder cranes.

Ideal for heavy-duty applications, such as handling large concrete components, steel structures, or machinery.

✅ 2. Lightweight Yet Strong Structure

The truss configuration reduces the overall weight of the girders without sacrificing strength.

Enhances the efficiency of the crane by lowering structural dead weight and material costs.

✅ 3. Excellent Wind Resistance

The open truss design offers low wind resistance, making it well-suited for outdoor use, especially in windy regions like ports, construction sites, or shipyards.

✅ 4. Mobility and Flexibility

Equipped with wheels or tracks, the crane can move across a large work area.

Unlike fixed gantry cranes, this mobility increases operational flexibility and can serve multiple zones without needing multiple cranes.

✅ 5. Cost-Effective for Large Outdoor Applications

Eliminates the need for a permanent runway system, reducing foundation and installation costs.

Ideal for temporary or semi-permanent setups, such as construction projects or seasonal operations.

✅ 6. Wide Span and Coverage

Double girders allow for wider spans, enabling coverage of larger working areas.

Efficient for lifting tasks that require long horizontal travel distances.

✅ 7. Customizability

Can be designed with varying spans, heights, wheel types, and hoist options to match specific site conditions and lifting requirements.

✅ 8. Enhanced Safety and Control Options

Can include advanced safety features such as anti-sway technology, load limiters, emergency stop systems, and remote controls.

Heavy Manufacturing: Used for lifting and assembling large ship components like hulls, engines, and turbines. Handling large steel plates, beams, and structural components.Transporting and installing turbines, generators, and other heavy equipment.

Construction: Lifting heavy precast concrete beams, girders, and segments for bridges.Handling materials like concrete blocks, turbines, and gates for hydropower projects.Moving large prefabricated sections or steel structures.

Ports and Logistics: Moving large shipping containers in port terminals.Transporting materials like coal, minerals, or aggregates.

Aerospace and Defense:Lifting and assembling large aircraft parts such as fuselages, wings, and engines.Transporting spacecraft or rocket components during assembly and testing.

Mining: Handling large mining equipment or transporting extracted materials. Assisting in the maintenance of heavy mining machinery.

Energy: Lifting and placing reactor components and containment structures. Handling and installing large turbine components like blades and nacelles.

Railways: Moving railcars, engines, and tracks during production or maintenance.

Crane production procedure

Design and Engineering: Identify the crane's purpose, load capacity, span, height, speed, and working environment.Create detailed CAD models and structural analyses for the girders, gantry legs, and trolley system to ensure load handling capacity and compliance with standards (e.g., FEM, ISO, or CMAA).Determine the types of motors, hoisting mechanisms, rail systems, and control systems to be used.Include safety systems like anti-collision devices, limit switches, overload protection, and wind-resistance mechanisms.

Material Procurement: Source high-grade steel (often Q345 or equivalent) for girders, legs, and other structural components.Purchase hoisting mechanisms, motors, drives, brakes, and control panels. Acquire paints and coatings for corrosion resistance.

Fabrication of Components: Use CNC cutting machines to shape the steel plates.Weld the plates into the box or I-beam sections for girders and legs, following strict quality standards.Perform stress-relieving heat treatment to prevent deformation during use.Use ultrasonic or radiographic testing to ensure weld integrity.Fabricate and assemble gears with precisionAssemble the hoisting drum and wire ropes.Create precise grooves and surfaces for wheels and rail contact.Fit wheels, axles, and other mechanical components.Assemble and program control panels, variable frequency drives (VFDs), and PLCs (Programmable Logic Controllers).Install wiring for motors, limit switches, and sensors.

Pre-Assembly: Assemble the major components (girders, legs, trolley) in the workshop to check alignment and fit.Make adjustments or refinements as needed.Apply anti-corrosion coatings or paint.

Transportation to Site: Dismantle the crane into transportable components.Arrange heavy-haul vehicles or ships for transportation, considering the crane's size and weight.

On-Site Assembly: Ensure rail tracks or crane runways are installed and aligned.Use heavy-duty cranes to erect and position the girders, legs, and trolley. Securely join components.

Commissioning and Testing: Perform no-load, rated-load, and overload tests to ensure stability and functionality.Verify safety devices like limit switches and emergency stops.Check rail alignment and trolley travel.Validate the control systems, sensors, and power connections.

Final Inspection and Handover:Conduct a final inspection with the client or certifying authority.Provide documentation, including operating manuals, maintenance schedules, and test certificates.Train operators and maintenance staff on proper crane operation and upkeep.

Maintenance and Support:Offer periodic inspections, spare parts, and after-sales support to ensure long-term reliability.The production process demands high precision, rigorous testing, and adherence to international standards to ensure safety and performance.
