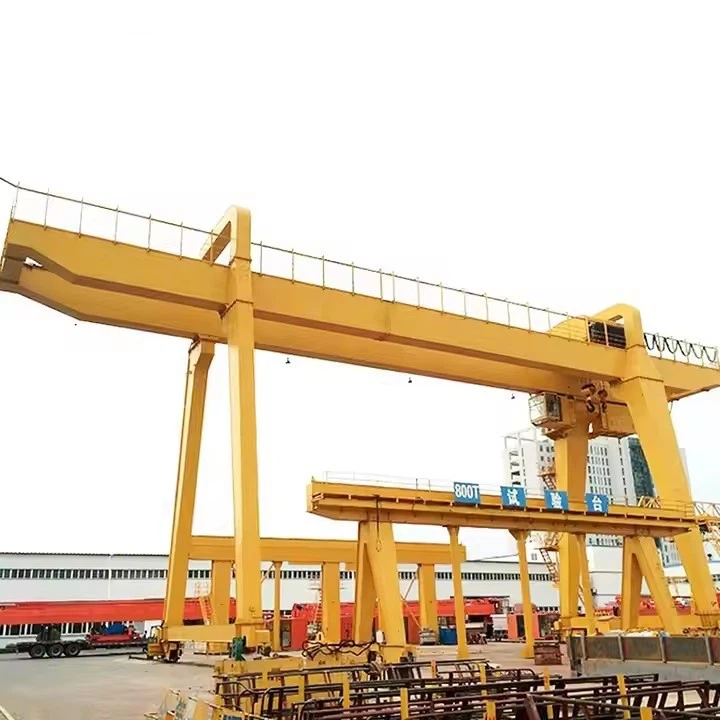

MH Model Outdoor Using Gantry Crane



Types of Outdoor Gantry Cranes

Full Gantry Crane: Runs on ground rails, ideal for heavy-duty applications.

Semi-Gantry Crane: One side runs on a rail, while the other is supported by a structure.

Adjustable/Portable Gantry Crane: Wheeled or modular for flexibility.



Key Considerations for Outdoor Use

Load Capacity: Must account for dynamic forces (wind, swinging loads).

Mobility: Rail-guided vs. rubber-tired (for uneven terrain).

Power Supply: Electric (cable reel) or diesel/hydraulic for remote areas.

Safety Features:

Anti-collision systems (for multiple cranes).

Load limiters & emergency stop.

Wind speed sensors for automatic shutdown.



Potential Challenges

Weather impact (rain, snow, extreme temperatures).

Foundation requirements for rail-mounted systems.

Maintenance due to exposure to dust, moisture, and UV rays.



Comparison Table: Gantry Crane vs. Other Outdoor Lifting Solutions

Feature	Gantry Crane	Mobile Crane	Overhead Crane
Load Capacity	High (up to 500+ tons)	High (but limited by setup)	Medium (depends on building)
Mobility	Rail or wheel-based	Highly mobile (truck-mounted)	Fixed (needs runway beams)
Outdoor Suitability	Excellent (weatherproof)	Good (but sensitive to wind)	Poor (requires shelter)
Installation Cost	Moderate (rails needed)	High (rental/operational costs)	High (structural support)
Best For	Repetitive heavy lifting	Temporary, flexible jobs	Indoor factories/warehouses



Lifting Capacity: 30 metric tons (30,000 kg)
Span: 10m–35m (customizable)
Lifting Height: 6m–20m (adjustable)
Hoist Type: Double-girder with electric wire rope hoist (QD-type)
Travel System: Motorized (rail-guided or rubber-tired)
Wheel Type: Steel wheels (for rails) / Pneumatic tires (floor use)
Control System: Cabin-operated or remote control
Power Supply: 380V/50Hz (3-phase)
Structural Steel: Q345B (high-strength) with corrosion-resistant coating

When designing or selecting an MH (Material Handling) model for outdoor use with a gantry crane, the key components must be robust, weather-resistant, and capable of handling dynamic loads. Below is a detailed breakdown of the essential components:



1. Gantry Crane Structural Components

A. Bridge/Girder

Function: The horizontal beam that spans the work area and supports the trolley and hoist.

Types:

Single Girder – Lighter loads, cost-effective.

Double Girder – Heavy-duty applications, higher lifting heights.

Material: Weather-resistant steel (e.g., galvanized or painted with anti-corrosion coatings).

B. Legs/Support Structure

Fixed Legs: Permanently installed on rails or foundations.

Adjustable Legs: Allow height modifications (useful for uneven terrain).

Outriggers (for stability): Extendable supports to prevent tipping.

C. End Trucks & Wheels

Rail-Mounted: Moves on fixed tracks (common in shipyards, ports).

Rubber-Tired: Mobile gantries for flexible movement (construction sites).

Steering Mechanism: Manual or motorized for directional control.



2. Lifting & Movement Mechanisms

A. Hoist Unit

Electric Hoist: Common for precise lifting (e.g., wire rope or chain hoist).

Hydraulic Hoist: Used for heavy loads in harsh environments.

Pneumatic Hoist: Suitable for explosive atmospheres (rare).



B. Trolley System

Manual Trolley: Pushed along the girder (light-duty).

Motorized Trolley: Electrically driven for smooth, automated movement.

C. Load Handling Attachments

Hooks (standard, C-hooks, or swivel hooks).

Grapples (for logs, scrap).

Magnetic Lifters (for steel plates).

Spreader Beams (for container handling).



3. Mobility & Foundation Components

A. Rail System (for rail-mounted gantries)

Crane Rails: Heavy-duty tracks embedded in concrete.

Rail Clamps: Lock the crane in place when not in use.

B. Wheels & Tires (for mobile gantries)

Steel Wheels: For rail tracks.

Rubber Tires: For rough terrain (pneumatic or solid).

C. Anchoring System

Ground Anchors: Prevent movement in high winds.

Outrigger Pads: Distribute weight on soft ground.

4. Power & Control System

A. Power Source

Electric (Cable Reel or Festoon System): For fixed outdoor installations.

Diesel/Hydraulic: For remote sites without electricity.

Battery-Operated: For short-term mobile use.

.

B. Control Mechanisms

Pendant Control (wired handheld remote).

Radio Remote Control (wireless for safer operation).

Cabin Operation (for large, full-gantry cranes).

C. Safety & Sensors

Limit Switches: Prevent over-travel.

Load Cell/Weighing System: Monitors load weight.

Wind Speed Sensor: Auto-locks crane in high winds.

Anti-Collision System: For multiple cranes in shared spaces.

Weatherproofing & Protection Features

Corrosion Protection: Galvanized steel or epoxy paint.

IP-Rated Electricals: IP65 or higher for dust/water resistance.

UV-Resistant Cables: Prevent degradation from sunlight.

Drainage Holes: Prevent water accumulation.

SKETCH

Main technical



Gantry cranes are highly effective for outdoor material handling due to their durability, flexibility, and high load capacity. Below are the key advantages:

1. High Load Capacity & Heavy-Duty Performance

Can handle tons to hundreds of tons (depending on design).

Ideal for steel beams, shipping containers, machinery, and construction materials.

2. Adaptability to Outdoor Conditions

Weather-resistant (galvanized steel, corrosion-proof coatings).

Wind-resistant designs (brakes, anchors, and sensors for safety).

Works in extreme temperatures (heat-resistant hydraulics, cold-weather lubricants).

3. Mobility & Flexibility

Rail-mounted gantries provide stable movement on fixed tracks (ports, shipyards).

Rubber-tired gantries allow movement on uneven terrain (construction sites).

Adjustable height & span for different project needs.

4. Cost-Effective Compared to Mobile Cranes

No need for frequent setup/teardown (unlike mobile cranes).

Lower operational costs for repetitive lifting tasks.

Long-term investment with minimal maintenance.

5. Safety & Precision

Anti-sway technology for stable load movement.

Overload protection & emergency brakes.

Remote control operation for safer handling.

6. No Need for Overhead Support Structures

Unlike bridge cranes, gantry cranes stand independently, eliminating the need for building modifications.



Gantry cranes are widely used in industries requiring heavy lifting in open areas. Key applications include:

1. Ports & Shipyards

Loading/unloading shipping containers from trucks and vessels.

Shipbuilding & repair (handling large steel sections).

2. Construction Sites

Moving prefabricated concrete panels, steel beams, and scaffolding.

Positioning heavy machinery (excavators, generators).

3. Railway & Infrastructure Projects

Lifting railway tracks, sleepers, and locomotives.

Bridge construction (girders, segments).

4. Manufacturing & Industrial Plants

Outdoor storage yards (steel coils, pipes, lumber).

Heavy equipment assembly (wind turbines, industrial boilers).

5. Scrap & Recycling Facilities

Handling scrap metal, cars, and bulk waste materials.

Magnetic & grapple attachments for efficient sorting.

6. Energy & Power Sector

Wind turbine installation & maintenance.

Power plant equipment handling (transformers, turbines).

7. Mining & Oilfields

Moving drilling equipment, pipes, and heavy machinery.

Bulk material handling in open-pit mines.





1. Design and Planning

Demand Analysis: According to customer needs and usage scenarios, a detailed demand analysis is carried out to determine the specifications, load, span, lifting height, etc. of the crane.

Engineering Design: Engineers use CAD and other design software to carry out detailed design, including structural, mechanical, electrical and other aspects to ensure that the design meets relevant standards and specifications.

2. Material Procurement

Material Selection: Select appropriate steel, motors, control systems and other components according to design requirements.

Supplier Screening: Screen suppliers of materials and components to ensure the quality and reliability of materials.

3. Processing and Manufacturing

Cutting and Forming: Cut, weld, bend and other processes on steel to form main beams, end beams and other structural components.

Machining: Precision machining of key components, such as turning, milling, drilling, etc., to ensure that the size and accuracy meet the design requirements.

Surface Treatment: Spray, galvanize or rust-proof metal parts to enhance corrosion resistance and aesthetics.

4. Assembly

Component Assembly: Assemble the main beam, end beam, trolley, lifting mechanism and other components to form a complete crane structure.

Installation of electrical system: Install electrical equipment such as motors, control cabinets, sensors, limit switches, etc. to ensure the normal operation of the electrical system.

5. Debugging and testing

Preliminary debugging: Carry out preliminary debugging of the crane to check the coordination and operation of each component.

Load test: Carry out load test to ensure the safety and stability of the crane under rated load, and test the functions of safety devices such as overload protection and limit switches.

Performance test: Test the performance indicators of the crane such as lifting speed, running speed, braking effect, etc. to ensure that they meet the design requirements.

6. Quality inspection

Quality inspection: Carry out a comprehensive quality inspection of the crane, including appearance, size, performance, etc., to ensure compliance with relevant standards.

Safety assessment: Carry out safety assessment to ensure the normal operation of all safety devices and systems.

7. Delivery and installation

Packaging and transportation: Pack qualified cranes and prepare them for transportation to the customer site.

On-site installation: Carry out on-site installation according to customer requirements, including basic production and equipment debugging.

Training and handover: Train operators to ensure that they master the operation methods and safety precautions of the equipment and complete the handover work.















Material Inspection

Quality Inspection: Strict quality inspection is carried out on the purchased raw materials to ensure that they meet the design requirements and national standards.

Material Storage: Qualified materials are stored according to classification to prevent corrosion or damage.

Cutting and Forming

Steel Cutting: Use plasma cutting, laser cutting or flame cutting and other technologies to cut the steel according to the size of the design drawing.

Forming Processing: Form the steel plate through bending, rolling, welding and other processes to manufacture the main beam, end beam and other structural parts.

Welding

Component Welding: The cut and formed steel parts are welded into the main structures such as the main beam, end beam and trolley. The welding process needs to be strictly controlled to ensure the structural strength and welding quality.

Weld Inspection: Use non-destructive testing technology (such as ultrasonic testing, radiographic testing) to inspect the welds to ensure that there are no cracks or other defects.

Machining

Precision Machining: Precision machining is performed on the key components of the crane, such as wheel sets, bearing seats, pulleys, etc., to ensure their dimensional accuracy and surface quality.

Assembly of the whole machine

General assembly: On the basis of pre-assembly, the overall assembly of the crane is carried out, including the final installation of the main beam, end beam, lifting mechanism, walking mechanism, etc.

Commissioning and testing

Under dynamic conditions, the operating performance of the crane is tested, including the testing of lifting, walking, steering and other functions. The overall size of the assembled bridge crane is checked to ensure that all dimensions meet the design requirements.

Spraying and anti-corrosion treatment

Surface treatment Rust removal: Rust removal on the surface of the crane, common methods include sandblasting, pickling, etc. Primer spraying: Spray anti-corrosion primer on the treated surface to prevent metal oxidation and corrosion. Topcoat spraying Color spraying: Spray topcoat according to customer requirements or industry standards to give the crane a protective and decorative effect. Marking: After spraying, mark the crane's identification information in accordance with the specifications, such as model, rated load, etc.

Factory and installation

Packaging and transportation

Packaging protection: Protectively package the key components of the crane to prevent damage during transportation. Transportation arrangement: According to the equipment size and transportation conditions, select a suitable transportation method to transport the crane to the customer's site.

Acceptance and delivery

Customer acceptance

On-site acceptance: The customer conducts on-site acceptance of the crane according to the contract requirements and technical specifications to check the performance and quality of the equipment.

Problem rectification: If any problems are found, the manufacturer needs to rectify them in time to ensure that the equipment fully meets the customer's requirements. Delivery and use Operation training: The manufacturer usually trains the customer's operators to ensure that they can operate the crane correctly and safely.
