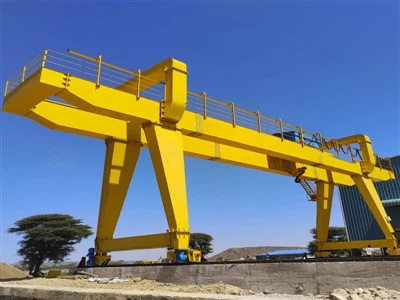

32 m Span Double Girder Gantry Crane





32 m Span Double Girder Gantry Crane Introduction

A 32-meter span double girder gantry crane is a heavy-duty lifting solution designed for large outdoor work areas such as precast yards, fabrication plants, bridge construction sites, steel yards, and logistics terminals. With its long span and dual-girder structure, the crane offers high lifting capacity, stable operation, and wide coverage for handling oversized or bulky materials over a broad working range.

---

Components

Double Main Girders – Rigid welded box or truss-type beams designed to carry large loads across the 32 m span.

End Carriages/Legs – Heavy-duty steel legs supporting the main girders, with precision wheel assemblies for smooth runway travel.

Trolley & Hoisting Mechanism – Electric hoist or open winch trolley running on top of the two girders for stable lifting.

Travel Mechanisms (Crane & Trolley Travel Motors) – Controlled by frequency inverters for smooth acceleration and accurate positioning.

Power Supply System – Cable reel, festoon cable, or busbar system providing continuous power.

Control System – Options include pendant control, wireless remote control, or cabin operation.

Safety Devices – Overload limiter, emergency stop, limit switches, rail clamps, windproof devices, buffer stops, anti-collision sensors, and lightning protection.

---

Advantages

Wide Working Coverage – The long 32 m span allows handling large components or wide working zones efficiently.

High Lifting Stability – Double-girder structure ensures minimal deflection and excellent rigidity under full load.

High Capacity Configuration – Easily supports medium to heavy lifting (20t, 32t, 50t, 70t, and above).

Flexible Installation Options – Suitable for rail-mounted, ground-mounted, or elevated track systems.

Smooth and Precise Operation – Frequency converter control ensures stable movement and accurate load positioning.

Durable for Outdoor Use – Weather-resistant coatings, windproof clamps, and storm protection systems for long-term outdoor performance.

Customizable Features – Cantilevers, dual-trolleys, maintenance platform, walkways, and specialized lifting tools can be added.

---

Applications

Bridge & Road Construction – Lifting girders, precast beams, and formwork over large construction areas.

Precast Concrete Yards – Handling slabs, beams, blocks, and large molds.

Steel Structure & Fabrication Plants – Moving long steel sections, pipes, plates, and assemblies.

Logistics Terminals & Yards – Loading/unloading containers, heavy pallets, or long materials.

Shipyards & Marine Engineering – Handling blocks, steel plates, and marine equipment.

Hydropower & Infrastructure Projects – Transporting large assemblies and construction materials.

Mining & Heavy Industry – Moving heavy machinery components and raw materials.



Rated Loading Capacity：5 ton, 10 TON, 100 ton, customized, 16/3.2 ton, 20/5 ton, 32/5 ton, 50/10 ton

Max. Lifting Height：40m, customized

Span：35m or clients' demands

Warranty：1 Year

Weight (KG)：20000 kg

Core Components：PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Control way：Cab, wireless remote control or customized







1.Double Main Girders

Welded box-type or truss-type girders

Provide high rigidity and low deflection across the long 32 m span

1.The main beam of an industrial gantry crane is a horizontal beam that spans the distance between two parallel tracks or rails. It is typically made of steel and serves as the primary structural component of the crane, providing support for the hoist mechanism, trolley, and load.



2.The main beam is designed to withstand the weight and forces generated by the crane's operations, including lifting, moving, and lowering heavy loads. It is also responsible for maintaining the stability and balance of the crane during operation.



3.The main beam can be either fixed or adjustable, depending on the specific needs of the application. Fixed beams are set at a specific height and cannot be adjusted, while adjustable beams can be raised or lowered to accommodate different load heights and clearance requirements.



4.Overall, the main beam is a critical component of an industrial gantry crane, providing the necessary strength and stability to handle heavy loads safely and efficiently.



.



Trolley Frame

Heavy-duty frame that runs on the top of the double girders

Supports hoisting mechanism and ensures smooth lateral movement

Hoisting Mechanism

Electric wire rope hoist or open winch system

Includes motor, gearbox, drum, wire rope, brake, and hook block

The lifting system of an industrial gantry crane is responsible for raising, lowering, and transporting heavy loads. It typically consists of several components working together to provide a reliable and efficient hoisting mechanism.

The main components of the lifting system include:Hoist Motor: The hoist motor is the power source for the lifting system. It generates the torque required to lift and lower the load. The motor's capacity is determined by the crane's lifting capacity and duty cycle.

Hoist Drum(s) or Sheave Assembly: The hoist drum or sheave assembly is connected to the hoist motor through a reduction gearbox. As the motor turns, it rotates the drum or moves the sheaves, which in turn raises or lowers the wire ropes or chains.

3.In summary, the lifting system of an industrial gantry crane is a complex but essential component that enables the crane to perform its primary function: lifting and moving heavy loads safely and efficiently.





3.End Carriages & Crane Legs

Robust steel legs supporting the girders

Equipped with wheel assemblies for rail-mounted travel

Includes upper and lower connection plates or bolts for assembly

1.The end carriage of an industrial gantry crane is a critical component that connects the crane to the runway beam or rail on which it travels.

2.Here are the key features and functions of the end carriage:

Structure and Functionality

Rollers or Wheels: The end carriage typically has several rollers or wheels that ride along the top of the runway beam or rail. These are designed to minimize friction and allow for smooth movement of the crane.

Bearings and Axles: To support the weight and movement, the rollers or wheels are mounted on axles with bearings that ensure they can rotate freely without excessive wear.

Locking Mechanism: Some end carriages may include locking mechanisms that can secure the crane in a fixed position when not in use or during maintenance.

Adjustment Mechanisms: There may be adjustment mechanisms to fine-tune the alignment and ensure that the crane moves straight along the runway beam without deviation.

3.The end carriage is vital for the stable and reliable operation of the gantry crane. It ensures that the crane can move smoothly and efficiently along the runway beam, carrying out its hoisting and transporting functions with precision. Proper maintenance and inspection of the end carriage are crucial to prevent issues that could affect the crane's performance or lead to safety hazards.

4.Trolley Travel Mechanism

Motors, gear reducers, wheels, and brakes

Frequency control for smooth acceleration and precise movement

1.The crane traveling mechanism of an industrial gantry crane is responsible for moving the crane horizontally along its runway beams or rails. This mechanism allows the crane to transport loads over a larger area, making it extremely useful in warehouses, shipyards, and other industrial environments where heavy items need to be moved around a broad expanse.

2.Here are the key components and features of the crane traveling mechanism:

Components of the Traveling Mechanism

Drive Units (Traction Units): These are typically electric motors that provide the power to move the crane. The number of drive units can vary depending on the size and capacity of the crane; some cranes may have multiple motors for each side to distribute the load.

Gearboxes: Gearboxes are used to reduce the high speed of the motor to a lower speed suitable for the crane's travel. They also increase the torque output, which is necessary to move the crane and its load.

Wheels or Rollers: Large wheels or rollers are mounted on axles and are driven by the motor through the gearbox. These wheels or rollers ride along the top of the runway beams or rails and are crucial for stable movement.

3.The traveling mechanism is one of the most critical components of an industrial gantry crane, as it determines the crane's mobility and range of operation. Proper maintenance and regular inspections are crucial to ensure that the traveling mechanism operates smoothly and safely. Any issues with this mechanism can significantly impact the crane's performance and safety, making it vital to address any problems promptly.



5.Crane Travel Mechanism

Drive motors with reducers and wheels on each side

Dual-drive or four-drive depending on load capacity

Equipped with rail sweeper, buffer, and wheel guards

1.The trolley traveling mechanism of an industrial gantry crane is responsible for moving the hoist or lifting mechanism horizontally along the crane's main beam or gantry. This allows the crane to position the load precisely in the transverse direction.

2.The trolley traveling mechanism consists of several key components:

Components of the Trolley Traveling Mechanism

Drive Unit: Typically an electric motor, the drive unit provides the power to move the trolley. The size and capacity of the motor depend on the crane's lifting capacity and the required speed of the trolley.

Gearbox: The gearbox reduces the high speed of the motor output to a lower speed suitable for the trolley's travel. It also increases the torque, which is necessary to move the hoist mechanism and any attached load.

Wheels or Rollers: The trolley rides on wheels or rollers that are mounted on axles. These wheels or rollers travel along the flanges or tracks on the main beam, allowing the trolley to move back and forth.

Brake System: A braking system is integrated into the trolley to control its movement and to hold it in position when needed. This can be a mechanical brake, an electromechanical brake, or a dynamic braking system.

3.The trolley traveling mechanism is crucial for precise positioning of the load in the transverse direction. It allows the crane to place loads accurately at different points along the length of the gantry. Proper maintenance and regular inspections are essential to ensure that the trolley mechanism operates smoothly and safely. Any issues with this mechanism can significantly impact the crane's operational efficiency and safety, making it vital to address any problems promptly.



6.Crane wheel

1.The crane wheel of an industrial gantry crane is a critical component that allows the crane to move along its runway beams or rails. These wheels are designed to support the weight of the crane, its load, and any additional dynamic forces generated during operation.

2.Here are the key features and functions of crane wheels:

Features of Crane Wheels

Material: Crane wheels are typically made from high-strength materials such as steel or cast iron to ensure they can withstand the heavy loads and stresses involved in lifting operations.

Size and Configuration: The size of the wheels varies depending on the capacity and design of the crane. They can be larger for heavier cranes to distribute the load more evenly. The number of wheels per axle and the number of axles per crane can also vary based on design requirements.

3.Crane wheels play a vital role in the mobility and stability of industrial gantry cranes. They are responsible for transferring the weight of the crane and its load to the runway beams or rails while allowing for smooth travel. The durability and efficiency of the crane's movement largely depend on the quality and condition of these wheels.

4.Proper maintenance of crane wheels, including regular inspections and timely replacement of worn components, is crucial for the safe and reliable operation of the crane. Neglecting wheel maintenance can lead to increased downtime, reduced efficiency, and potential safety hazards.



7.Crane Hook

1.The crane hook of an industrial gantry crane is a critical component that allows the crane to lift and move various loads. The hook is the point of contact between the crane's hoisting mechanism and the load, making it a crucial interface for safe and efficient operations.

2.Here are the key features and functions of crane hooks:

Features of Crane Hooks

Material: Crane hooks are typically made from high-strength steel or alloy steel to ensure they can withstand the heavy loads involved in lifting operations. The material is chosen for its durability and resistance to wear and tear

Design: The design of the hook includes an opening at the top where it attaches to the hoist rope, chain, or other lifting device. The bottom part of the hook has a curved shape that allows it to securely engage with lifting points on the load.

Safety Latch: Many hooks are equipped with a safety latch or locking mechanism to prevent the load from accidentally slipping off. This latch must be manually opened to release the load at the desired location.

Load Ratings: Each hook is rated for specific maximum loads, and it is essential to use hooks that are rated for the intended loads to ensure safety and compliance with regulations.



Motor

The motor of an industrial gantry crane is a critical component that provides the power necessary for lifting and moving loads. Motors in gantry cranes are typically electric and can be categorized into two main types based on their function: the hoisting motor and the travelling (or traversing) motor.

The hoisting motor is responsible for lifting and lowering the hook or grab that engages with the load. This motor's primary function is to control the vertical movement of the crane's loading mechanism.

Crane motors are the powerhouse of industrial gantry cranes, providing the energy required for both lifting and moving operations. The performance, reliability, and safety of the crane are heavily dependent on the motors' efficiency and durability. Proper selection, maintenance, and regular inspections of these motors are crucial for ensuring the crane operates smoothly and safely. Any issues with the motors can lead to operational inefficiencies, increased downtime, and potential safety risks, making prompt attention to motor problems essential.

.

Sound and light alarm system & limit switch

1.Industrial gantry cranes are equipped with a sound and light alarm system and limit switches to enhance safety and operational efficiency. These components play crucial roles in preventing accidents and ensuring that the crane operates within its designated parameters.

2.Sound and Light Alarm System

The sound and light alarm system is designed to alert personnel in the vicinity of the crane about its operational status. This system is particularly important in environments where the crane operates in close proximity to workers or where visibility is limited.

3.Limit Switches

Limit switches are electronic devices that serve as critical safety features on industrial gantry cranes. They detect the position of the crane or its components and cut off power when the crane reaches its operational limits, preventing potential accidents and damage.

4.Both the sound and light alarm system and limit switches are integral to the safe operation of industrial gantry cranes. The alarm system ensures that personnel are aware of the crane's movements and operational status, reducing the risk of collisions or other hazards. Limit switches, on the other hand, automate safety by physically preventing the crane from operating beyond its design limits. Together, these systems contribute to a safer workplace and protect both the crane equipment and the personnel working around it. Proper maintenance and regular testing of these systems are essential to ensure they function reliably and effectively.

10.Safety Devices

Overload Protection Devices

Overload protection devices are designed to prevent the crane from operating beyond its safe working load limits. These devices monitor the load being lifted and will either send an alert or shut down the crane if the load exceeds the specified limit. This is crucial for preventing structural damage to the crane and avoiding accidents that can occur due to overloading.

Limit Switches

As mentioned earlier, limit switches automatically stop the crane when it approaches the end of its travel range or when any of its components reach their operational limits. These switches are essential for preventing the crane from exceeding its physical boundaries, which could result in damage to the structure or collision with obstacles.

Anti-Collison Devices

Anti-collison devices are particularly important in environments where multiple cranes operate in close proximity or where there is significant ground traffic. These devices use sensors, cameras, or other technologies to detect the presence of other objects in the crane's path and either alert the operator or automatically halt the crane's movement to prevent a collision.

Emergency Stop Buttons

Emergency stop buttons are manually operated controls that allow the crane operator or any authorized personnel to immediately stop all crane operations in case of an emergency. These buttons are strategically placed within easy reach of the operator and are often red and highly visible.

Brake Systems

Brake systems on industrial gantry cranes are designed to hold the load securely in place when not in motion and to provide controlled stopping during operations. These brakes can be mechanical, electrical, or a combination of both, and they are critical for preventing unexpected load movements that could lead to accidents.

Levelness Indicators

Levelness indicators are used to ensure that the crane is level during operation, especially when lifting precise or delicate loads. Uneven lifting can cause loads to shift, potentially leading to loss of control and accidents. These indicators help operators maintain the crane's balance and stability.

Safe Working Load Indicators

Safe working load indicators clearly mark the maximum safe load capacity for the crane. This information is vital for operators to ensure that the crane is not overloaded and operates within its design specifications.



11.Control Mode

1.Manual Control

Direct Intervention: The crane operator directly controls the hoisting and traveling movements of the crane using handwheels, levers, or push buttons. This mode requires skilled operators who can manually synchronize the movements to achieve the desired positioning of the load.

Simple Mechanisms: Manual control systems are generally simpler in design and may be less prone to complex failures.

Limited Precision: The precision of the crane's movements is limited to the operator's skill and experience.

2.Semi-Automatic Control

Assisted Operation: The crane operator uses control devices such as joysticks or paddle switches to command the crane, but the system includes automated features that assist in controlling speed and synchronization.

Enhanced Safety: Semi-automatic systems often include safety features like automatic stops at load limits or travel limits.

Improved Efficiency: These systems can improve operational efficiency by reducing the need for highly skilled operators.

3.Fully Automatic Control

Programmable Logic Controller (PLC): The crane's operations are governed by a PLC, which can be programmed to perform specific sequences of operations automatically.

Precise Control: Fully automatic systems offer precise control over the crane's movements, allowing for complex maneuvers to be executed consistently.

Reduced Human Error: Automated systems reduce the potential for human error, enhancing safety and reliability.

Remote Operation: In some cases, fully automatic cranes can be operated remotely, removing the operator from potentially hazardous environments.

4.Radio Control

Wireless Operation: The crane operator uses radio transmitters to control the crane from a distance, which can be particularly useful in environments where visual contact with the crane is limited.

Increased Flexibility: Radio control allows operators to move freely around the work area while maintaining control of the crane.

Safety Considerations: Proper frequency management and security measures must be in place to prevent interference or unauthorized operation of the crane.

5.Computer Control

Advanced Systems: Some gantry cranes may employ computer systems that integrate advanced features such as machine vision, artificial intelligence, and data analysis to optimize operations.

Data Collection: Computer-controlled cranes can collect operational data, which can be used for maintenance planning and operational optimization.

Interface Options: Operators may interact with the crane through touch screens or other advanced interfaces, providing detailed feedback and control options.



12.Sketch









Advantages of a 32 m Span Double Girder Gantry Crane

1. Large Working Area Coverage

The 32 m long span provides wide lifting coverage, ideal for handling long or oversized materials across large yards and production areas.

2. High Structural Rigidity

Double-girder design greatly reduces deflection and ensures stable lifting performance under full load, improving safety and precision.

3. Heavy-Duty Lifting Capacity

Supports medium to heavy loads (20t–70t+), making it suitable for industrial and construction environments requiring strong lifting capability.

4. Smooth & Precise Operation

Equipped with frequency inverter control (VFD) for trolley and crane travel, enabling:

Smooth acceleration

Reduced load swing

Accurate load positioning

5. Excellent Reliability & Durability

Reinforced steel structures and anti-corrosion paint systems ensure long service life, especially in outdoor environments.

6. Customizable for Various Projects

Options include:

Cantilever arms on one or both sides

Dual trolleys

Maintenance walkways

Specialized lifting tools

Cabin or remote control

This allows users to tailor the crane to their working needs.

7. Stable Long-Span Performance

Advanced welding technology and optimized girder design maintain stability and strength even over the 32 m span.

8. Safe Outdoor Operation

Multiple protection systems enhance operational safety:

Windproof rail clamps

Storm locks

Anti-collision sensors

Overload protection

Lightning protection

9. Low Maintenance & High Efficiency

Standardized components, efficient motors, and easy-access platforms reduce downtime and improve working efficiency.





Applications of a 32 m Span Double Girder Gantry Crane

1. Bridge & Road Construction

Lifting and transporting precast concrete girders, slabs, and bridge segments

Handling formwork, steel structures, and assembly components over wide construction sites

2. Precast Concrete Manufacturing Yards

Moving long beams, panels, columns, hollow-core slabs, and molds

Efficient material flow across large production areas

3. Steel Structure Fabrication Plants

Handling long steel beams, H-beams, pipes, plates, and welded assemblies

Ideal for large workshops requiring stable long-span lifting

4. Logistics Yards & Outdoor Warehouses

Loading and unloading heavy pallets, long materials, machinery, and cargo

Provides efficient coverage for large open yard operations

5. Shipyards & Marine Engineering

Lifting hull sections, ship parts, marine plates, and heavy docking equipment

Ensures stable handling in marine construction environments

6. Hydropower & Infrastructure Projects

Transporting turbines, penstock sections, large steel components, and installation tools

Suitable for dam construction and maintenance areas

7. Mining & Heavy Machinery Industry

Movement of large mechanical parts, crushers, motors, and heavy assemblies

Supports repair and maintenance operations in big industrial yards

8. Railway & Metro Construction

Lifting long rails, track panels, concrete sleepers, and tunnel segments

Provides wide-span coverage for assembly and storage fields





1. Design and Engineering

Detailed Engineering: Develop detailed engineering drawings and specifications, including the main beam, hoist, trolley, end carriages, and other components.

Simulation and Modeling: Use computer-aided design (CAD) and simulation tools to model the crane's performance and optimize its design.

2. Material Selection

Material Specifications: Select high-quality materials that meet the requirements for strength, durability, and heat resistance. Common materials include high-strength steel, alloys, and specialized coatings.

Procurement: Source materials from approved suppliers, ensuring they meet the necessary quality and certification standards.

3. Component Fabrication

Cutting and Shaping: Cut and shape raw materials into the required components, such as beams, columns, and brackets. This may involve processes like plasma cutting, laser cutting, and machining.Welding and Assembly: Weld components together to form the crane's structural elements. This includes welding the main beam, end carriages, and other load-bearing parts.

4. Assembly

Sub-Assembly: Assemble individual components, such as the hoisting system, trolley, and end carriages, into sub-assemblies. This involves fitting parts together and ensuring proper alignment.Main Assembly: Combine sub-assemblies to construct the complete crane structure. This includes mounting the hoist and trolley on the main beam, attaching the end carriages, and installing the control systems.

5. Integration of Systems

Electrical Systems: Install electrical components, including motors, control panels, wiring, and sensors. Ensure that the crane's electrical systems are properly integrated and tested.

Control Systems: Implement and configure control systems, such as programmable logic controllers (PLCs), remote controls, and safety devices. Verify that the control systems function correctly and are calibrated.

6. Testing and Quality Assurance

Pre-Operational Testing: Conduct pre-operational tests to check the crane's functionality, including load testing, operational testing of the lifting and traveling mechanisms, and control system checks.

Safety Testing: Verify that safety features, such as limit switches, alarms, and emergency stops, are working correctly and meet safety standards.

Inspection: Perform a detailed inspection of the crane's structure and components to ensure compliance with design specifications and quality standards.

7. Final Adjustments and Calibration

Fine-Tuning: Make any necessary adjustments to optimize the crane's performance and ensure smooth operation. This may include calibrating sensors, adjusting controls, and fine-tuning the lifting system.

Documentation: Prepare and review documentation, including operation manuals, maintenance guides, and safety instructions.

8. Delivery and Installation

Transport: Arrange for the transport of the crane to the installation site, ensuring that it is handled and shipped safely to prevent damage.

Installation: Oversee the installation of the crane at the customer's facility, including assembly, alignment, and connection to power sources and control systems.

Training: Provide training for operators and maintenance personnel to ensure they are familiar with the crane's operation and safety procedures.

9. Commissioning and Handover

Commissioning: Conduct final commissioning tests to verify that the crane operates correctly under real-world conditions and meets performance specifications.

Handover: Officially hand over the crane to the customer, providing all necessary documentation, including certificates of compliance, warranty information, and maintenance schedules.







Material Inspection

Quality Inspection: Strict quality inspection is carried out on the purchased raw materials to ensure that they meet the design requirements and national standards.

Material Storage: Qualified materials are stored according to classification to prevent corrosion or damage.

Cutting and Forming

Steel Cutting: Use plasma cutting, laser cutting or flame cutting and other technologies to cut the steel according to the size of the design drawing.

Forming Processing: Form the steel plate through bending, rolling, welding and other processes to manufacture the main beam, end beam and other structural parts.

Welding

Component Welding: The cut and formed steel parts are welded into the main structures such as the main beam, end beam and trolley. The welding process needs to be strictly controlled to ensure the structural strength and welding quality.

Weld Inspection: Use non-destructive testing technology (such as ultrasonic testing, radiographic testing) to inspect the welds to ensure that there are no cracks or other defects.

Machining

Precision Machining: Precision machining is performed on the key components of the crane, such as wheel sets, bearing seats, pulleys, etc., to ensure their dimensional accuracy and surface quality.

Assembly of the whole machine

General assembly: On the basis of pre-assembly, the overall assembly of the crane is carried out, including the final installation of the main beam, end beam, lifting mechanism, walking mechanism, etc.

Commissioning and testing

Under dynamic conditions, the operating performance of the crane is tested, including the testing of lifting, walking, steering and other functions. The overall size of the assembled bridge crane is checked to ensure that all dimensions meet the design requirements.

Spraying and anti-corrosion treatment

Surface treatment Rust removal: Rust removal on the surface of the crane, common methods include sandblasting, pickling, etc. Primer spraying: Spray anti-corrosion primer on the treated surface to prevent metal oxidation and corrosion. Topcoat spraying Color spraying: Spray topcoat according to customer requirements or industry standards to give the crane a protective and decorative effect. Marking: After spraying, mark the crane's identification information in accordance with the specifications, such as model, rated load, etc.

Factory and installation

Packaging and transportation

Packaging protection: Protectively package the key components of the crane to prevent damage during transportation. Transportation arrangement: According to the equipment size and transportation conditions, select a suitable transportation method to transport the crane to the customer's site.

Acceptance and delivery

Customer acceptance

On-site acceptance: The customer conducts on-site acceptance of the crane according to the contract requirements and technical specifications to check the performance and quality of the equipment.

Problem rectification: If any problems are found, the manufacturer needs to rectify them in time to ensure that the equipment fully meets the customer's requirements. Delivery and use Operation training: The manufacturer usually trains the customer's operators to ensure that they can operate the crane correctly and safely.

Hot Tags: 32 m span double girder gantry crane, China 32 m span double girder gantry crane manufacturers, suppliers, factory
