Explosion-proof Steel Wire Rope Electric Hoist
An Explosion-proof Steel Wire Rope Electric Hoist is a specialized lifting device designed for hazardous environments where flammable gases, vapors, or combustible dust may be present. These hoists are built with safety features to prevent ignition sources that could trigger an explosion.
Key Features
Explosion-Proof Design
Certified for use in ATEX, IECEx, or NEC (Class I, Division 1/2) hazardous areas.
Components (motor, controls, switches) are enclosed in explosion-proof housings to prevent sparks.
Steel Wire Rope Construction
Durable and heat-resistant, suitable for heavy loads (typically 0.5T to 100T capacity).
Resistant to abrasion and corrosion, ideal for harsh industrial environments.
Electric Motor & Controls
Equipped with a thermal-protected, flameproof motor to prevent overheating.
Variable speed control options for precise lifting and lowering.

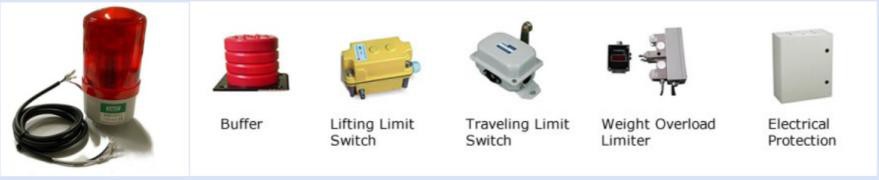

Safety Mechanisms
Overload protection, emergency stop, and limit switches.
Anti-sparking brakes and enclosed electrical contacts.
Parts & Components
An explosion-proof steel wire rope electric hoist is designed for hazardous environments where flammable gases, vapors, or dust may be present. Its components are specially constructed to prevent ignition sources. Below are the key components:
1. Explosion-Proof Motor
Certified for hazardous areas (e.g., ATEX, IECEx, NEC/CEC Class I, II, III, Division 1/Zone 1).
Features include spark-proof construction, enhanced sealing, and thermal protection.
2. Steel Wire Rope & Drum
High-strength galvanized steel wire rope for durability and corrosion resistance.
Drum for rope winding, designed to prevent fraying and ensure smooth operation.
3. Explosion-Proof Gearbox
Reduces motor speed to increase lifting torque.
Made of robust materials to withstand harsh conditions.
4. Explosion-Proof Electrical Components
Control panel with sealed switches and circuits.
Limit switches (upper/lower travel limits) with explosion-proof housing.
Emergency stop button (intrinsically safe).
5. Hook & Load Chain (Optional)
Forged hook with safety latch.
Some models use a load chain instead of wire rope.
6. Braking System
Fail-safe mechanical brake to prevent accidental load drops.
Electromagnetic or disc brakes with explosion-proof certification.
7. Pendant Control (Explosion-Proof)
Intrinsically safe remote control for safe operation in hazardous zones.
Sealed to prevent sparking.
8. Enclosure & Sealing
Sturdy, flameproof housing (e.g., aluminum alloy or stainless steel).
IP-rated sealing to prevent dust/gas ingress.
9. Overload Protection
Load limiter to prevent overloading.
Thermal protection in the motor.
10. Mounting System
Can be fixed, trolley-mounted, or monorail-compatible.
Sketch
Advantages
Explosion-proof steel wire rope electric hoists are designed for use in hazardous environments where flammable gases, vapors, or dust may be present. These hoists offer several advantages, making them ideal for industries such as oil & gas, chemical, mining, and other explosive atmospheres.
Key Advantages of Explosion-Proof Steel Wire Rope Electric Hoists:
1. Enhanced Safety in Hazardous Areas
Certified for ATEX, IECEx, or other explosion-proof standards, ensuring safe operation in flammable environments.
Prevents sparks or electrical arcs that could ignite explosive substances.
2. Durable & Reliable Construction
Made with high-strength steel wire ropes, resistant to wear, corrosion, and heavy loads.
Sturdy design ensures long service life even in harsh industrial conditions.
3. High Load Capacity & Efficiency
Available in various capacities (typically 0.5T to 100T+) for heavy-duty lifting.
Smooth and precise lifting/lowering with variable speed control options.
4. Explosion-Proof Motor & Electrical Components
Special flameproof (Ex d) or increased safety (Ex e) motors prevent ignition risks.
Sealed electrical enclosures to block dust and gas ingress.
5. Low Maintenance & Cost-Effective
Robust design reduces wear and tear, lowering maintenance costs.
Long-lasting wire ropes and sealed bearings minimize downtime.
6. Versatile Applications
Suitable for petrochemical plants, refineries, grain silos, coal mines, and offshore rigs.
Can be used with single-girder or double-girder cranes for flexible installation.
7. Advanced Control & Protection Features
Overload protection, thermal cut-off, and emergency stop for safe operation.
Remote control & variable frequency drive (VFD) options for precision handling.
Application
Explosion-proof steel wire rope electric hoists are designed for hazardous environments where flammable gases, vapors, dust, or combustible materials are present. These hoists prevent ignition sources from triggering explosions, making them essential in industries with high safety requirements.
Key Applications:
Oil & Gas Industry
Lifting equipment in refineries, drilling platforms, and petrochemical plants.
Handling flammable liquids, gases, and volatile substances.
Chemical & Pharmaceutical Industry
Transporting explosive or corrosive chemicals.
Operating in environments with combustible dust or vapors.
Mining & Coal Industry
Used in underground mines where methane or coal dust poses explosion risks.
Grain & Food Processing
Handling flammable dust in silos, flour mills, and food production facilities.
Aerospace & Military
Lifting fuel tanks, ammunition, and other hazardous materials.
Waste Treatment & Recycling
Operating in biogas plants or waste facilities with explosive gases.
Production Procedure
The production of an explosion-proof steel wire rope electric hoist involves specialized procedures to ensure safety in hazardous environments where flammable gases, vapors, or dust may be present. Below is a detailed production procedure:
1. Design & Engineering
Hazardous Area Classification: Determine the hoist's intended use (Zone 1, Zone 2, or Zone 21/22 for dust) per ATEX/IECEx/NEC standards.
Material Selection: Use spark-resistant materials (e.g., stainless steel, copper alloys) to prevent ignition.
Motor & Electrical Components: Select explosion-proof motors, switches, and control systems with proper certifications (e.g., Ex d, Ex e).
2. Component Manufacturing
A. Explosion-Proof Motor Assembly
Stator & Rotor: Built with enhanced insulation and sealed enclosures.
Cooling System: Designed to prevent surface temperatures exceeding the T-rating (e.g., T4 ≤ 135°C).
Flameproof Enclosure (Ex d): Heavy-duty casing to contain internal explosions.
B. Steel Wire Rope & Drum
Wire Rope: High-grade steel with anti-rotation properties (e.g., 6×36 or 8×19 construction).
Drum Grooving: Precision-machined to prevent rope slippage and wear.
Load Hook: Forged alloy steel with safety latch (heat-treated for durability).
C. Gearbox & Braking System
Gear Reduction: Helical or planetary gears for smooth operation.
Fail-Safe Brake: Electromagnetic or mechanical brake with explosion-proof certification.
3. Explosion-Proof Electrical System
Control Panel: Housed in a flameproof or pressurized enclosure.
Limit Switches: Explosion-proof models to prevent over-travel.
Wiring & Conduits: Sealed with intrinsic safety barriers (Ex i) where needed.
4. Assembly & Integration
Frame Construction: Welded steel structure with corrosion-resistant coating.
Motor & Gearbox Mounting: Aligned for optimal power transmission.
Rope Drum Installation: Secured with bearings and torque-limiting devices.
Electrical Wiring: All connections sealed to prevent gas/dust ingress.
5. Testing & Certification
Explosion-Proof Tests:
Leak Test: Ensures enclosure integrity.
Temperature Test: Verifies surface temps stay below ignition thresholds.
Spark Test: Confirms no sparking during operation.
Load Testing:
125% Overload Test (per FEM/ISO standards).
Durability Cycles (e.g., 10,000 lifts).
Third-Party Certification:
ATEX (EU), IECEx (International), or NEC (North America).
6. Quality Control & Documentation
Material Traceability: Records of all explosion-proof components.
Inspection Reports: Dimensional checks, NDT (X-ray/ultrasonic) for critical parts.
User Manual: Includes Ex safety guidelines and maintenance procedures.
7. Packaging & Shipping
Anti-Corrosion Treatment: VCI (Vapor Corrosion Inhibitor) packaging for humid environments.
Certification Marking: Clear labeling of Ex classification (e.g., Ex d IIB T4).
Workshop View
